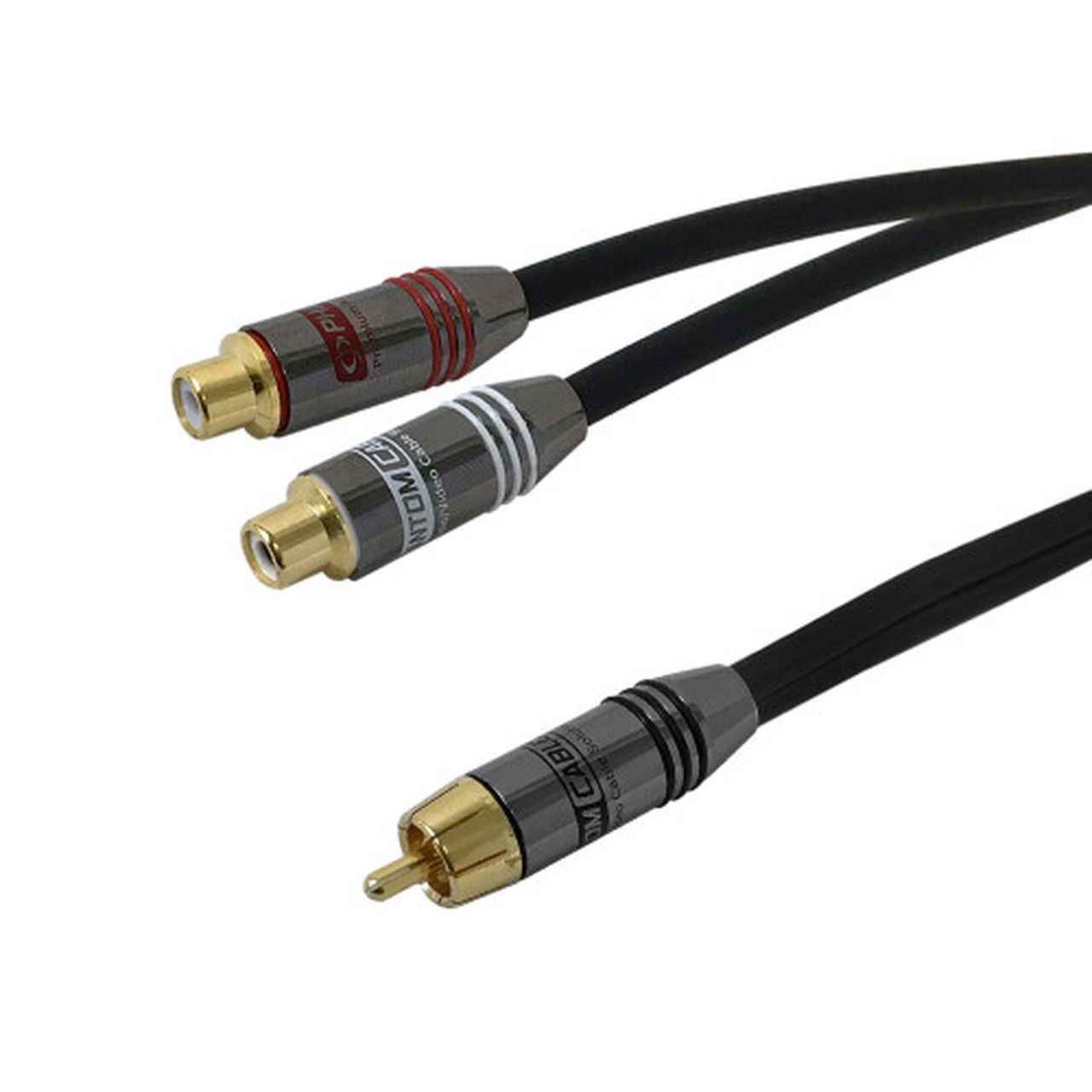

This audio cable has a RCA male on one end and two RCA females on the other. It is typically used to split a mono RCA signal audio signal to left and right channel audio inputs.
- 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
- Constructed of "siamese" cable for easy installation of left and right audio
- Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethelene insulation around center conductors
- 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors allows for extra flexible cables
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics |
---|
Length | 6 foot |
Color | Black |
Connector Plating | Gold |
Cable Diameter | 5.0mm x 10.0mm |
Wire Gauge | 22AWG |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Cable Shielding | 95% Bare Copper Braid |
Strain Relief | Metal Shell |
Connectors |
---|
Connector A | RCA Male - Black |
Connector B | RCA Female - White |
Connector C | RCA Female - Red |
Approvals |
---|
cUL | Yes - Cable |
Environmental |
---|
RoHS | Yes |
Package Information |
---|
Package Quantity | 1 |
Product Weight | 0.35 lbs [0.16kg] |
Warranty Information |
---|
Warranty | Limited Lifetime |
