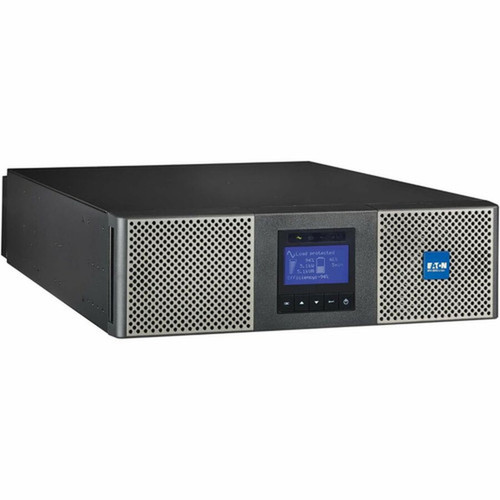

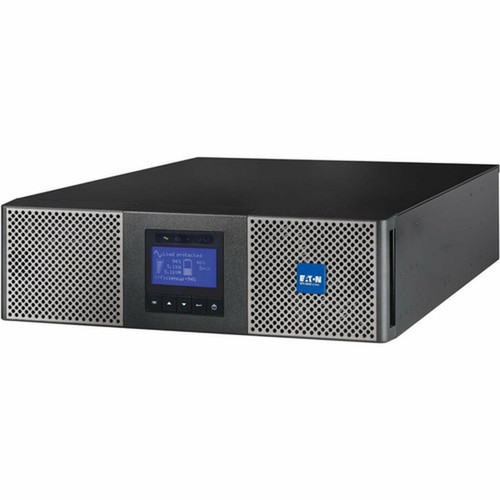

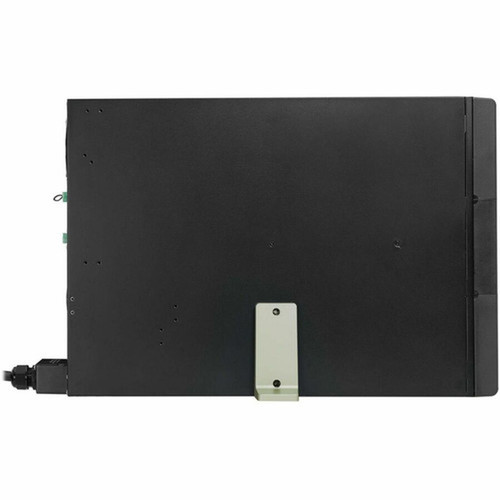

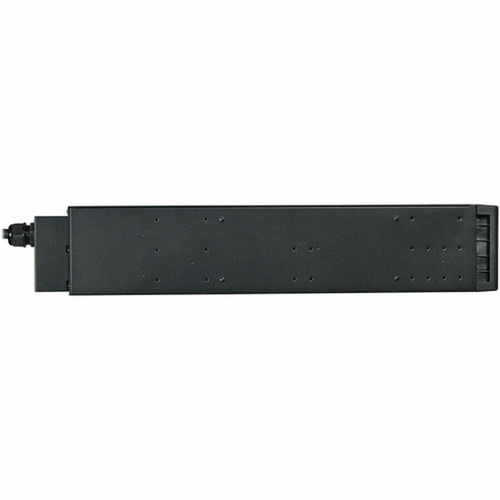

Eaton Online Double-Conversion 6000VA Uninterruptible Power Supply With Flexible Installation Options Hardwired L6-30P UPS 9PX6K-L
Write a Review
Eaton
Eaton Online Double-Conversion 6000VA Uninterruptible Power Supply With Flexible Installation Options Hardwired L6-30P UPS 9PX6K-L
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 9PX 9PX6K-L 6000VA Rack/Tower UPS
- Network-M3 Gigabit network card
- USB cable
- RS-232 cable
- Tower support stands
- Cable gland for hardwire connection
- Phillips-head screwdriver
- Rack-mounting hardware
- Quick start guide

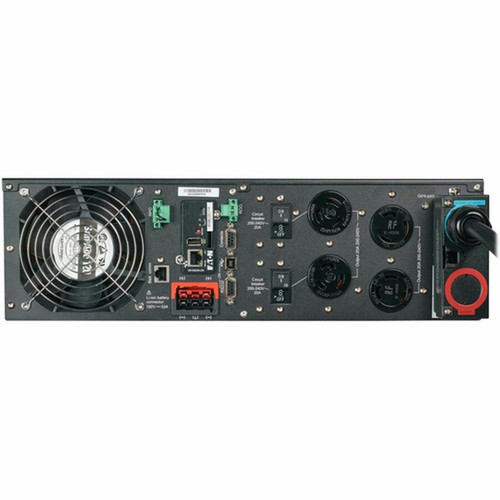

Plug/Connector Type: NEMA L6-30P,Hardwired
Receptacle Type: Hardwired,NEMA L6-30R,NEMA L6-20R
Receptacle Detail: 2 x NEMA L6-30,2 x NEMA L6-20R
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Mission Critical Equipment
Load Capacity (VA): 6 kVA
Load Capacity (Watt): 5.40 kW
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Input Frequency: 50 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Output Power Factor: 0.9
Display: LCD
Network Management: Network-M3 Card,RS-232,USB,INDGW-M2 Card,Relay-MS Card
Alarm: Low Battery,Overload,Battery Fault,UPS Fault,Remote Shutdown
Status Indicators:
4 LED d'indication d'état
Serial Port: Yes
USB: Yes
EPO Port: Yes
DC System Voltage: 192 V DC
Battery Chemistry: Lithium Ion (Li-Ion)
Backup/Run Time (Full Load): 8.70 Minute
Backup/Run Time (Half Load): 17.40 Minute
Number of External Battery Cabinets: 4
Hot Swappable: Yes
Replaceable Battery: Yes
Storage Temperature: 5°F (-15°C) - 140°F (60°C)
Maximum Operating Temperature: 104°F (40°C)
Height: 5.12" (130.05 mm)
Width: 17.33" (440.18 mm)
Depth: 17.33" (440.18 mm)

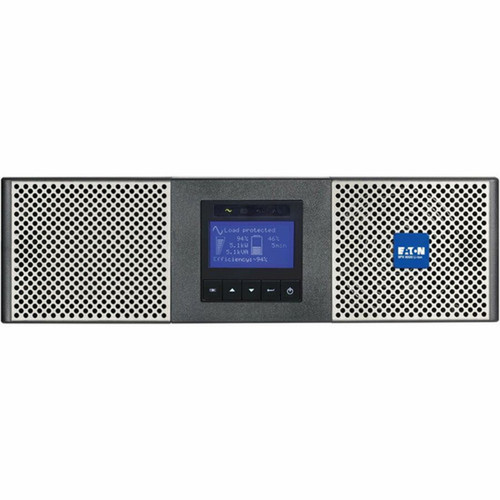

Rack Height: 3U

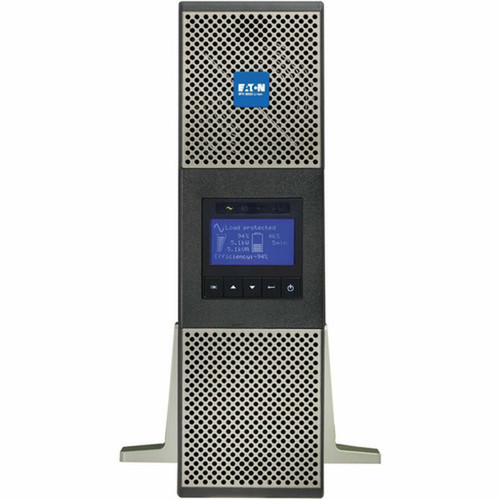

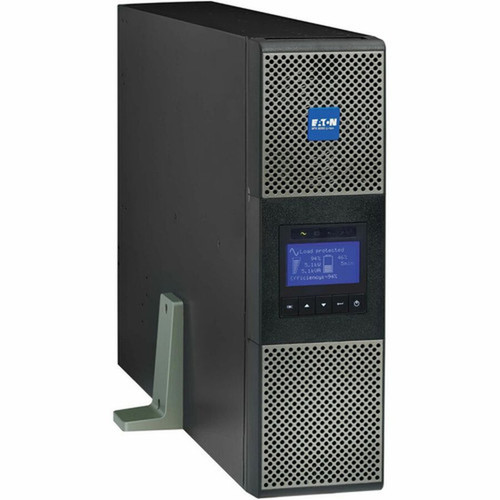

Form Factor: Rack/Tower
Weight (Approximate): 81.20 lb (36831.70 g)
Package Contents:
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Improved lithium-ion batteries have lifespan up to 10 years - set it and forget it!
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Interactive LCD interface keeps you updated on critical load information in real time
- Optional extended battery modules allow expanded runtime to keep equipment powered
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX6K-L |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Model | 9PX6K-L |
| Product Name | 9PX 9PX6K-L 6000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | Hardwired,NEMA L6-30R,NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-30,2 x NEMA L6-20R |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network-M3 Card,RS-232,USB,INDGW-M2 Card,Relay-MS Card |
| Alarm | Low Battery,Overload,Battery Fault,UPS Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | 4 LED d'indication d'état |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 192 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 8.70 Minute |
| Backup/Run Time (Half Load) | 17.40 Minute |
| Number of External Battery Cabinets | 4 |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 5.12" (130.05 mm) |
| Width | 17.33" (440.18 mm) |
| Depth | 17.33" (440.18 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 81.20 lb (36831.70 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | Eaton 9PXPPDM1 3U PowerPass Distrbution Module - 6 x NEMA 5-20R - 3U - Rack-mountable |
| SKU | 9PXPPDM1 |
| Sale Price | $1558.05 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
5 Year| Qty | Price | Available |
|---|
