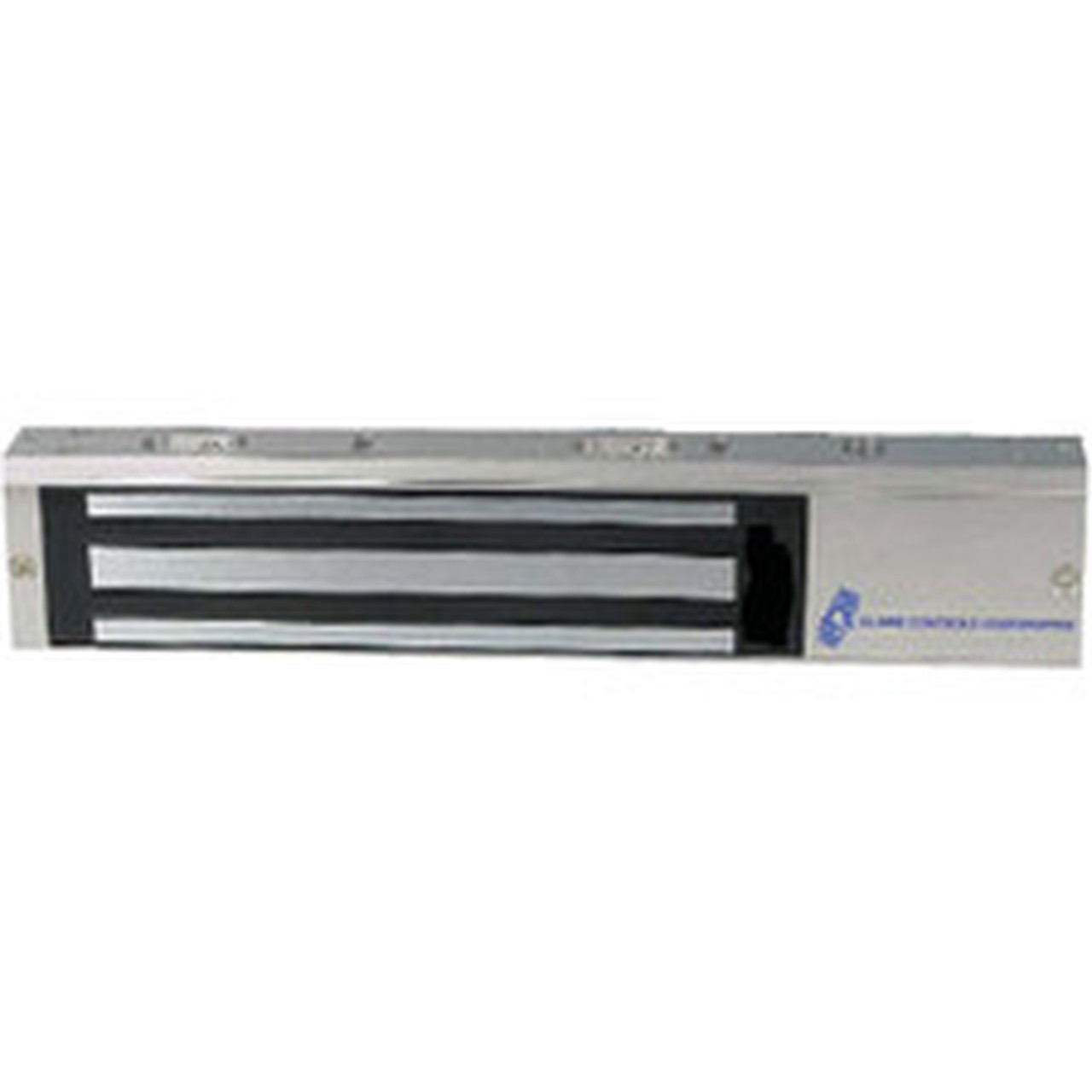

Alarm Controls 1200S Single Magnetic Lock - 12 V DC, 24 V DC - 544.31 kg Holding Force (1200S)

(No reviews) Write a Review
$347.05
$337.74
$182.55
(You save $164.50 )
SKU: 1200S
UPC: 604840236423
Weight: 45.05 LBS
Adding to cart… The item has been added
    Marketing Information:

    Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications. Available with LED, bond sensor and door status signalling options.

    Features

    Standard Features

    • 1200S Standard model
    • 1200L Magnetic lock with LED status indicator
    • 1200LB Magnetic lock with LED status indicator, bond sensor, and door status sensor
    • Built-in arc suppression
    • Instant release, no hysteresis
    • Self-drilling TEC screws
    • Non-aluminum parts are plated to resist corrosion
    • E-Z mount header bracket and template provided for easy installation, no special tools required
    • Can be used with any access control system
    • Clear anodized (US28) finish standard
    • Limited lifetime warranty

    Options

    • DURO Duranodic finish (US 40) available, specify when ordering
    • Dress covers in polished chrome and brass available. See "Magnetic LockAccessories" for options.

    Specifications

    Certifications & Listings

    • UL 294 listed
    • UL 10C fire rated
    • CAN/ULC-S104 fire door conformant
    • UL 864 listed
    • CAN/ULC-S527 listed

    Holding Force: 1200 lbs

    Dimensions:

    • Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
    • Armature size: 7-1/4" L x 2-3/8" H x 5/8" W

    Electrical

    • 12 or 24 VDC, field selectable
    • Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
    • 1200LB bond sensor has SPDT 3A relay contacts

    Operating Temperature: +14 to +131F [-10 to +55C]


    Holding Force: 544.31 kg
    Magnet Height: 2.88" (73.03 mm)
    Magnet Width: 1.50" (38.10 mm)
    Magnet Depth: 10.50" (266.70 mm)
    Armature Plate Height: 2.38" (60.33 mm)
    Armature Plate Width: 0.63" (15.88 mm)
    Armature Plate Depth: 7.25" (184.15 mm)
    Features: Instant Release
    Input Voltage:
    • 12 V DC
    • 24 V DC

    Input Current:
    • 505 mA
    • 260 mA

    Product Color: Clear
    Finishing: Clear Anodized
    Form Factor: Bracket Mount
    Application/Usage: Access Control System
    Limited Warranty: Lifetime

[custom-specifications]

Specifications
Manufacturer: ASSA ABLOY
Manufacturer Part Number: 1200S
Manufacturer Website Address: http://www.assaabloy.com
Brand Name: Alarm Controls
Product Model: 1200S
Product Name: 1200S Single Magnetic Lock
Packaged Quantity: 1
Product Type: Magnetic Lock
Technical Information
Holding Force: 544.31 kg
Magnet Height: 2.88" (73.03 mm)
Magnet Width: 1.50" (38.10 mm)
Magnet Depth: 10.50" (266.70 mm)
Armature Plate Height: 2.38" (60.33 mm)
Armature Plate Width: 0.63" (15.88 mm)
Armature Plate Depth: 7.25" (184.15 mm)
Features: Instant Release
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC

Input Current:
  • 505 mA
  • 260 mA

Physical Characteristics
Product Color: Clear
Finishing: Clear Anodized
Form Factor: Bracket Mount
Miscellaneous
Application/Usage: Access Control System
Warranty
Limited Warranty: Lifetime

[/custom-specifications]

Lifetime
