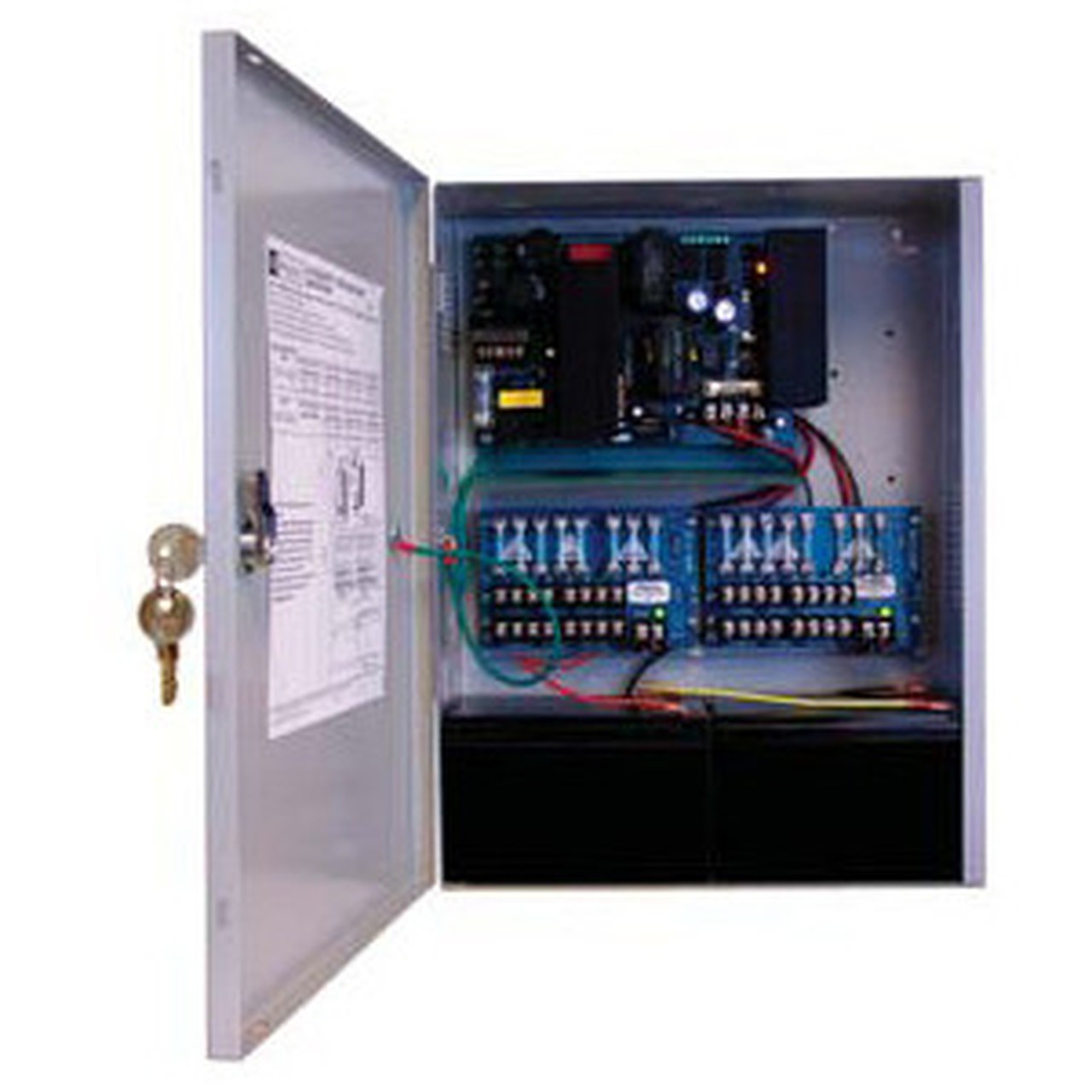

Altronix AL1024ULXPD16 Proprietary Power Supply - Wall Mount - 110 V AC Input - 24 V DC @ 10 A Output (AL1024ULXPD16)
Marketing Information:
Model AL1024ULXPD16 power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via sixteen (16) fuse protected non power limited outputs. Model AL1024ULXPD16CB is a PTC protected version of this unit.
Protection Type: Short Circuit,Thermal Overload
Input Voltage: 110 V AC
Output Voltage: 24 V DC
Output Voltage Detail: 24 V DC @ 10 A
Output Current: 10 A
Form Factor: Wall Mount
Height: 15.50" (393.70 mm)
Width: 12.23" (310.64 mm)
Depth: 4.50" (114.30 mm)
Weight (Approximate): 5.13 kg
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL1024ULXPD16 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | AL1024ULXPD16 |
| Product Name | AL1024ULXPD16 Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit,Thermal Overload |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 10 A |
| Output Current | 10 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 15.50" (393.70 mm) |
| Width | 12.23" (310.64 mm) |
| Depth | 4.50" (114.30 mm) |
| Weight (Approximate) | 5.13 kg |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
