- Access Power Controller with power supply.
- 8 PTC Class 2 power-limited outputs provide 24VDC @ 10A.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation.
- Fire alarm disconnect is selectable by output.
- UL and cUL listed.

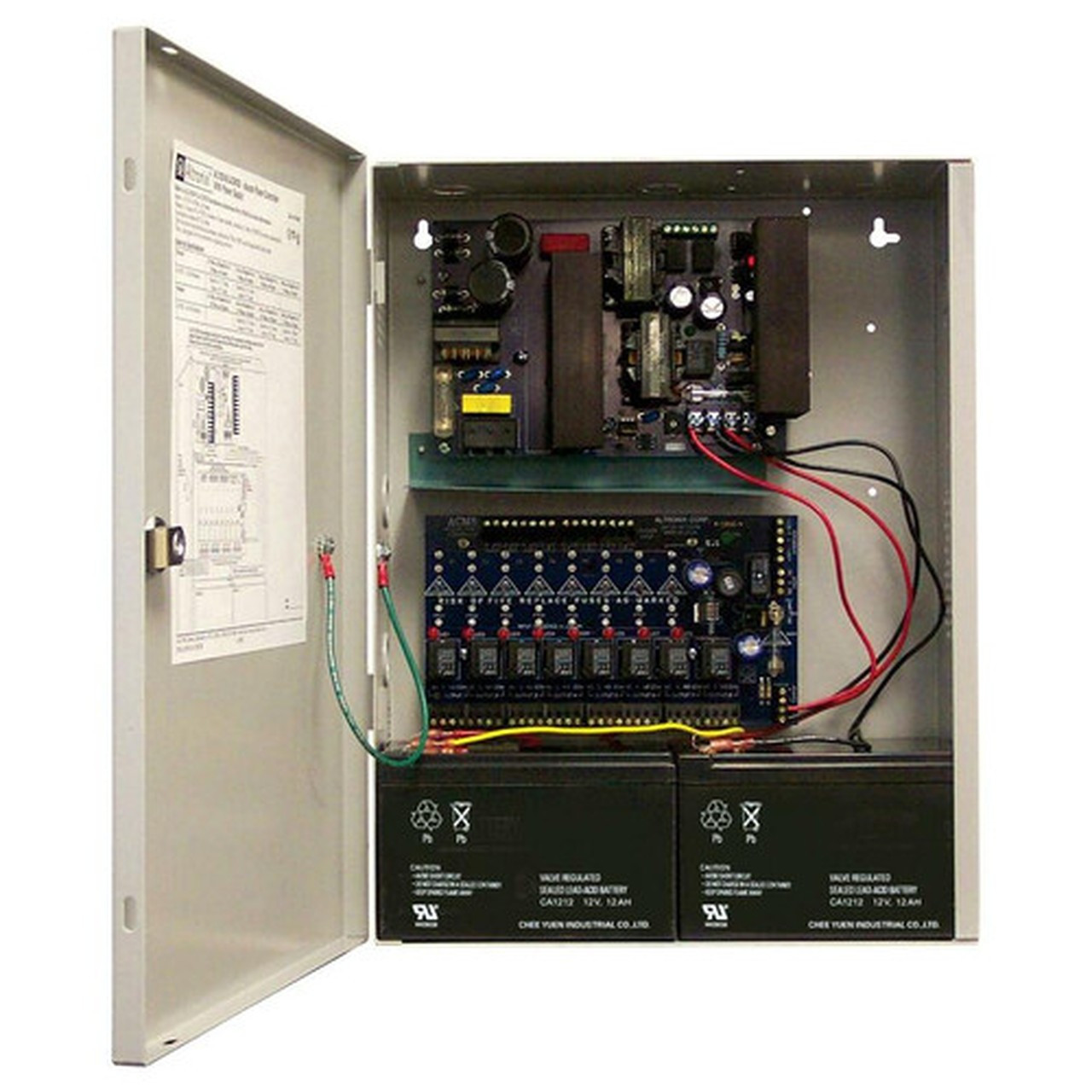

Marketing Information: Model AL1024ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1024ULACM is a fuse protected version of this unit.
Protection Type: - Short Circuit
- Thermal Overload
Input Voltage: 120 V ACOutput Voltage: 24 V DCOutput Voltage Detail: 24 V DC @ 10 AOutput Current: 10 AForm Factor: Height: 15.50" (393.70 mm)Width: 12.23" (310.64 mm)Depth: 4.50" (114.30 mm)Weight (Approximate): 5.33 kgCompatibility: - Mag Locks
- Electric Strikes
- Magnetic Door Holders
Environmentally Friendly: YesCountry of Origin: United StatesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: Altronix Corporation
Manufacturer Part Number: AL1024ULACMCB
Manufacturer Website Address: http://www.altronix.com
Brand Name: Altronix
Product Model: AL1024ULACMCB
Product Name: AL400UL Proprietary Power Supply
Packaged Quantity: 1
Product Type: Proprietary Power Supply
Technical InformationProtection Type:
- Short Circuit
- Thermal Overload
Power DescriptionInput Voltage: 120 V AC
Output Voltage: 24 V DC
Output Voltage Detail: 24 V DC @ 10 A
Output Current: 10 A
Physical CharacteristicsForm Factor:
Height: 15.50" (393.70 mm)
Width: 12.23" (310.64 mm)
Depth: 4.50" (114.30 mm)
Weight (Approximate): 5.33 kg
MiscellaneousCompatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Environmentally Friendly: Yes
Country of Origin: United States
WarrantyLimited Warranty: Lifetime
