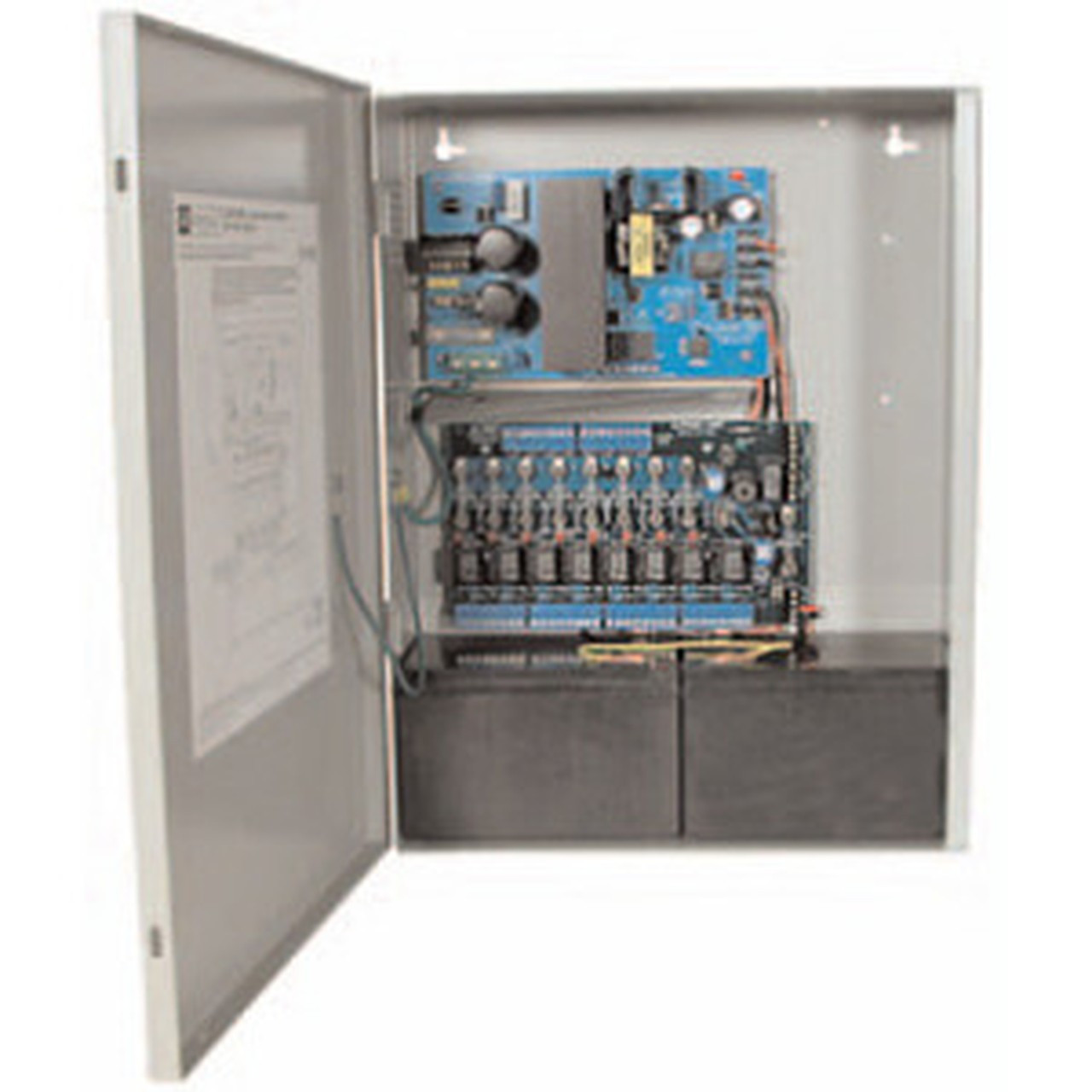

Altronix AL400ULACM Proprietary Power Supply - Wall Mount, Enclosure - 120 V AC Input - 12 V DC @ 4 A, 24 V DC @ 3 A Output - 8 +12V (AL400ULACM)

Marketing Information:

Model AL400ULACM converts a 115VAC 60Hz input into eight (8) independently controlled power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACMCB is a PTC protected version.

Protection Type: Short Circuit,Thermal Overload

Input Voltage: 120 V AC

Number of +12V Rails: 8

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 4 A,24 V DC @ 3 A

Output Current: 4 A,3 A

Form Factor: Wall Mount,Enclosure

Height: 15.50" (393.70 mm)

Width: 12.23" (310.64 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 5.03 kg

Compatibility:

• Mag Lock
• Electric Strike
• Magnetic Door Holder

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
