- Access Power Controller with power supply.
- 8 PTC Class 2 power-limited outputs provide 12VDC @ 4A or 24VDC @ 3A.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation.
- Fire alarm disconnect is selectable by output.
- UL and cUL listed.

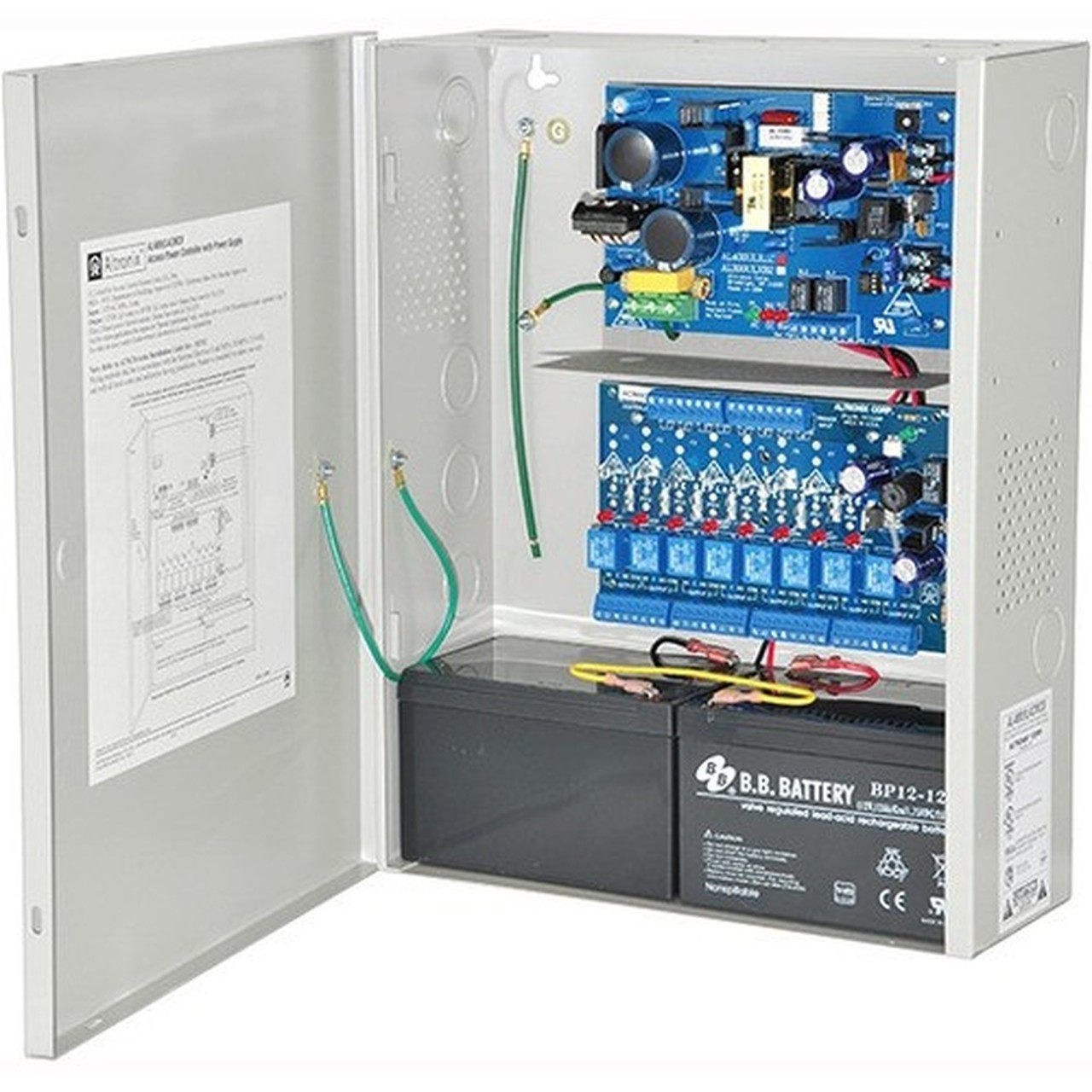

Marketing Information: Model AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACM is a fuse protected version of this unit.
Input Voltage: 120 V ACNumber of +12V Rails: 8Output Voltage: - 12 V DC @ 4 A
- 24 V DC @ 3 A
Form Factor: Height: 15.50" (393.70 mm)Width: 12.23" (310.64 mm)Depth: 4.50" (114.30 mm)Weight (Approximate): 4.58 kgCompatibility: - Mag Lock
- Electric Strike
- Magnetic Door Holder
Environmentally Friendly: YesCountry of Origin: United StatesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: Altronix Corporation
Manufacturer Part Number: AL400ULACMCB
Manufacturer Website Address: http://www.altronix.com
Brand Name: Altronix
Product Model: AL400ULACMCB
Product Name: AL400ULACMCB Proprietary Power Supply
Packaged Quantity: 1
Product Type: Proprietary Power Supply
Power DescriptionInput Voltage: 120 V AC
Number of +12V Rails: 8
Output Voltage:
- 12 V DC @ 4 A
- 24 V DC @ 3 A
Physical CharacteristicsForm Factor:
Height: 15.50" (393.70 mm)
Width: 12.23" (310.64 mm)
Depth: 4.50" (114.30 mm)
Weight (Approximate): 4.58 kg
MiscellaneousCompatibility:
- Mag Lock
- Electric Strike
- Magnetic Door Holder
Environmentally Friendly: Yes
Country of Origin: United States
WarrantyLimited Warranty: Lifetime
