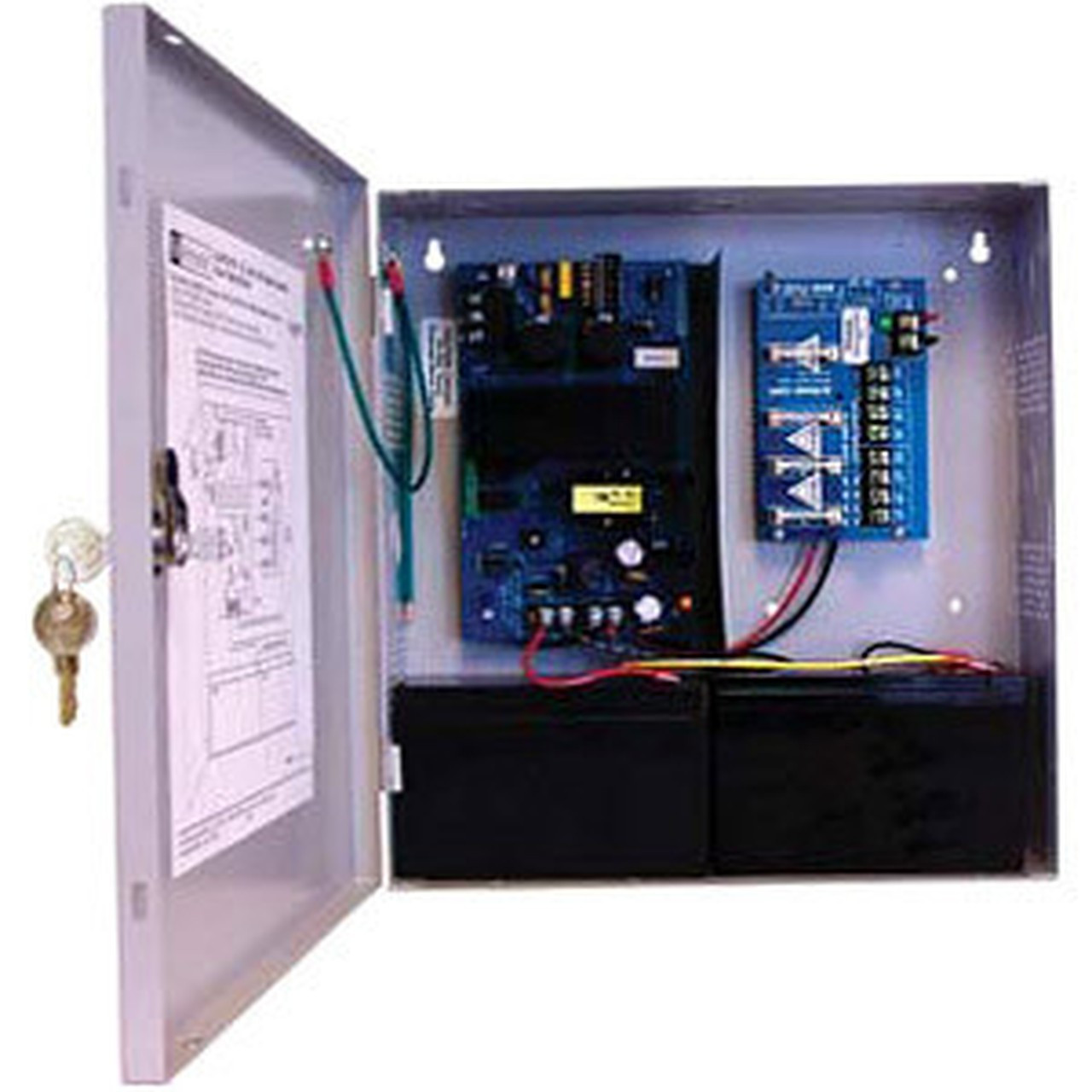

Altronix AL400ULPD4 Proprietary Power Supply - Wall Mount - 110 V AC Input - 12 V DC, 24 V DC Output (AL400ULPD4)
Marketing Information:
Model AL400ULPD4 power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via four (4) fuse protected Class 2 Rated power limited outputs. Model AL400ULPD4CB is a PTC protected version of this unit.
Protection Type: Short Circuit,Thermal Overload
Input Voltage: 110 V AC
Output Voltage: 12 V DC,24 V DC
Output Voltage Detail: 12 V DC @ 4 A,24 V DC @ 3 A
Output Current: 4 A,3 A
Form Factor: Wall Mount
Height: 13.50" (342.90 mm)
Width: 13" (330.20 mm)
Depth: 3.25" (82.55 mm)
Weight (Approximate): 3.36 kg
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL400ULPD4 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | AL400ULPD4 |
| Product Name | AL400ULPD4 Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit,Thermal Overload |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 12 V DC,24 V DC |
| Output Voltage Detail | 12 V DC @ 4 A,24 V DC @ 3 A |
| Output Current | 4 A,3 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 13.50" (342.90 mm) |
| Width | 13" (330.20 mm) |
| Depth | 3.25" (82.55 mm) |
| Weight (Approximate) | 3.36 kg |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
