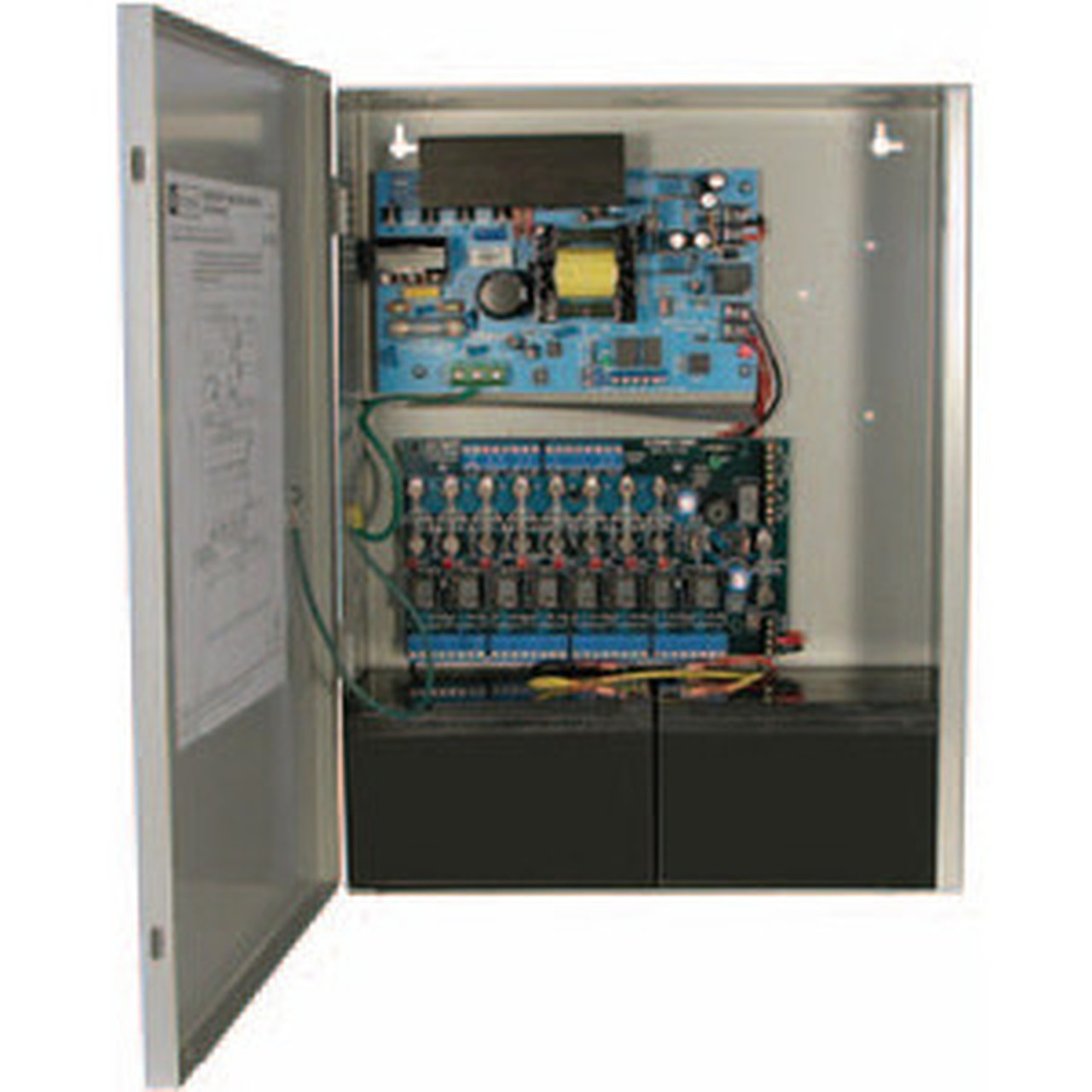

Altronix AL600ULACMCB Proprietary Power Supply - Wall Mount - 110 V AC Input - 12 V DC @ 6 A, 24 V DC @ 6 A Output - 8 +12V Rails (AL600ULACMCB)

Marketing Information:

Model AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACM is a fuse protected version of this unit.

Protection Type: Short Circuit,Thermal Overload

Input Voltage: 110 V AC

Number of +12V Rails: 8

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 6 A,24 V DC @ 6 A

Output Current: 6 A

Form Factor: Wall Mount

Height: 15.50" (393.70 mm)

Width: 12.23" (310.64 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 4.63 kg

Compatibility:

• Signal Equipments

Access Control Devices:

• Mag Locks
• Electric Strikes
• Magnetic Door Holders

Country of Origin: United States

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
