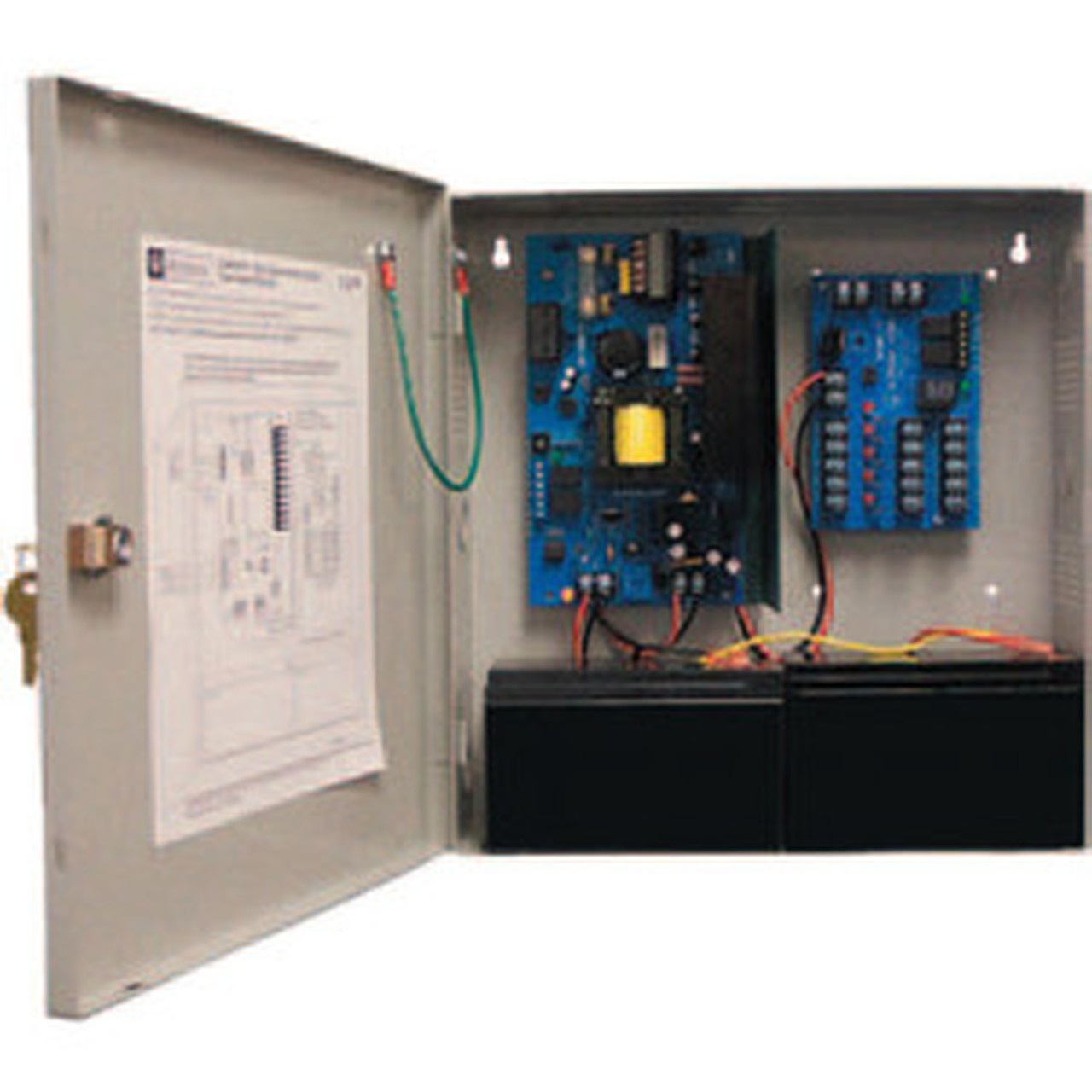

Marketing Information: AL600ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC, 60Hz input into five (5)individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.Input Voltage: 120 V ACOutput Voltage: - 12 V DC @ 6 A
- 24 V DC @ 6 A
Form Factor: Wall MountHeight: 13.50" (342.90 mm)Width: 13" (330.20 mm)Depth: 3.25" (82.55 mm)Weight (Approximate): 3.63 kgCompatibility: - Mag Locks
- Electric Strikes
- Magnetic Door Holders
Environmentally Friendly: YesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: Altronix Corporation
Manufacturer Part Number: AL600ULM
Manufacturer Website Address: http://www.altronix.com
Brand Name: Altronix
Product Model: AL600ULM
Product Name: AL600ULM Proprietary Power Supply
Product Type: Proprietary Power Supply
Power DescriptionInput Voltage: 120 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Physical CharacteristicsForm Factor: Wall Mount
Height: 13.50" (342.90 mm)
Width: 13" (330.20 mm)
Depth: 3.25" (82.55 mm)
Weight (Approximate): 3.63 kg
MiscellaneousCompatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Environmentally Friendly: Yes
WarrantyLimited Warranty: Lifetime
[/custom-specifications]
