Altronix
Altronix AL600ULPD8 Proprietary Power Supply - Wall Mount, Enclosure - 120 V AC Input - 12 V DC @ 6 A, 24 V DC @ 6 A Output - 8 +12V (AL600ULPD8)
- Access Control Systems
- Fire Protective Signaling Systems
Marketing Information:

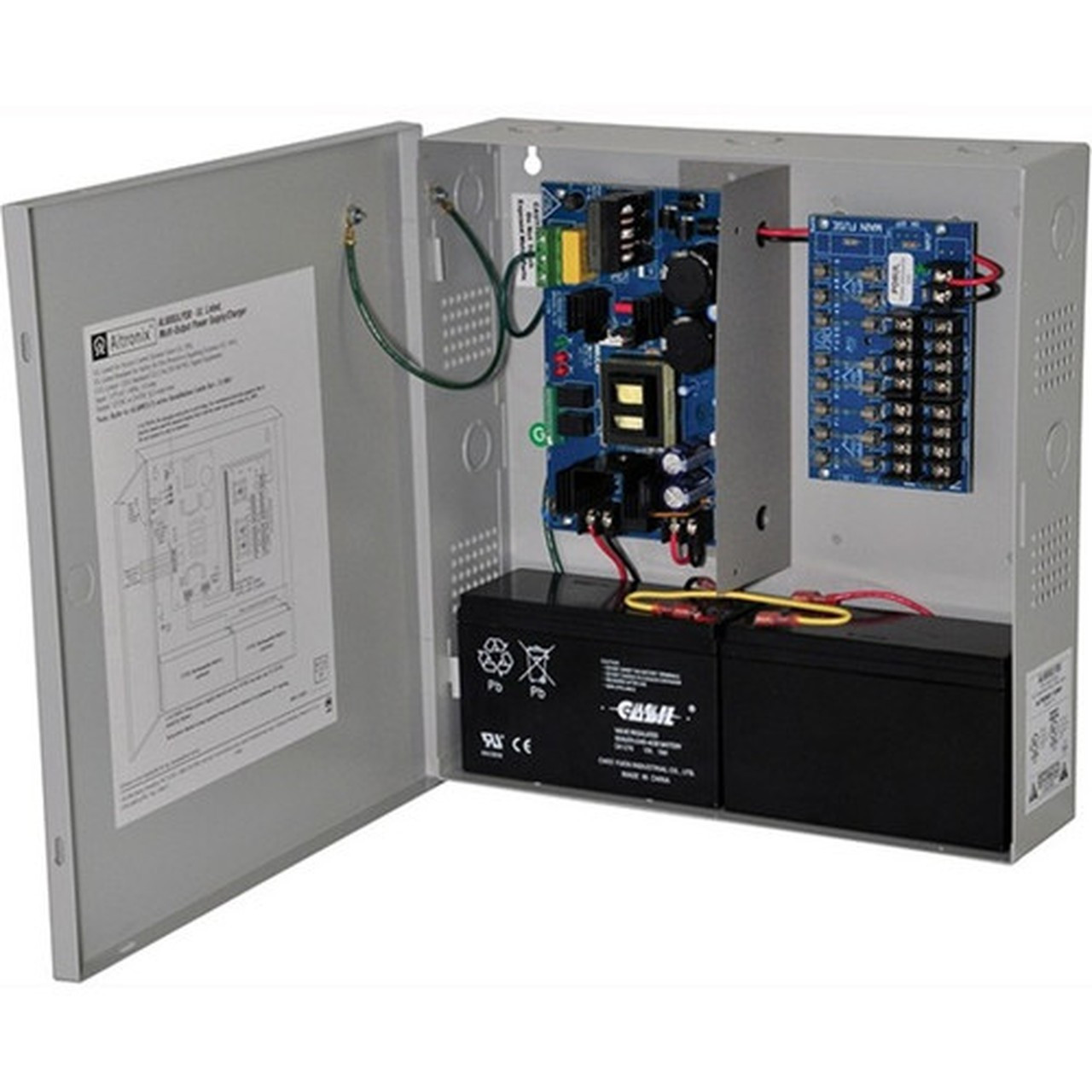

Model AL600ULPD8 power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via eight (8) fuse protected non power limited outputs. Model AL600ULPD8CB is a PTC protected version of this unit.
Protection Type: Short Circuit,Thermal Overload,Surge
Input Voltage: 120 V AC
Number of +12V Rails: 8
Output Voltage: 12 V DC,24 V DC
Output Voltage Detail: 12 V DC @ 6 A,24 V DC @ 6 A
Output Current: 6 A
Form Factor: Wall Mount,Enclosure
Height: 13.50" (342.90 mm)
Width: 13" (330.20 mm)
Depth: 3.25" (82.55 mm)
Weight (Approximate): 3.54 kg
Compatibility:
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- 8 Output Power Supply/Charger.
- 12VDC or 24VDC @ 6A, fused non-power limited outputs.
- AC and battery monitoring.
- UL and cUL listed.
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL600ULPD8 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | AL600ULPD8 |
| Product Name | AL600ULPD8 Proprietary Power Supply |
| Packaged Quantity | 1 |
| Product Type | Proprietary Power Supply | Technical Information |
| Protection Type | Short Circuit,Thermal Overload,Surge | Power Description |
| Input Voltage | 120 V AC |
| Number of +12V Rails | 8 |
| Output Voltage | 12 V DC,24 V DC |
| Output Voltage Detail | 12 V DC @ 6 A,24 V DC @ 6 A |
| Output Current | 6 A | Physical Characteristics |
| Form Factor | Wall Mount,Enclosure |
| Height | 13.50" (342.90 mm) |
| Width | 13" (330.20 mm) |
| Depth | 3.25" (82.55 mm) |
| Weight (Approximate) | 3.54 kg | Miscellaneous |
| Compatibility |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
