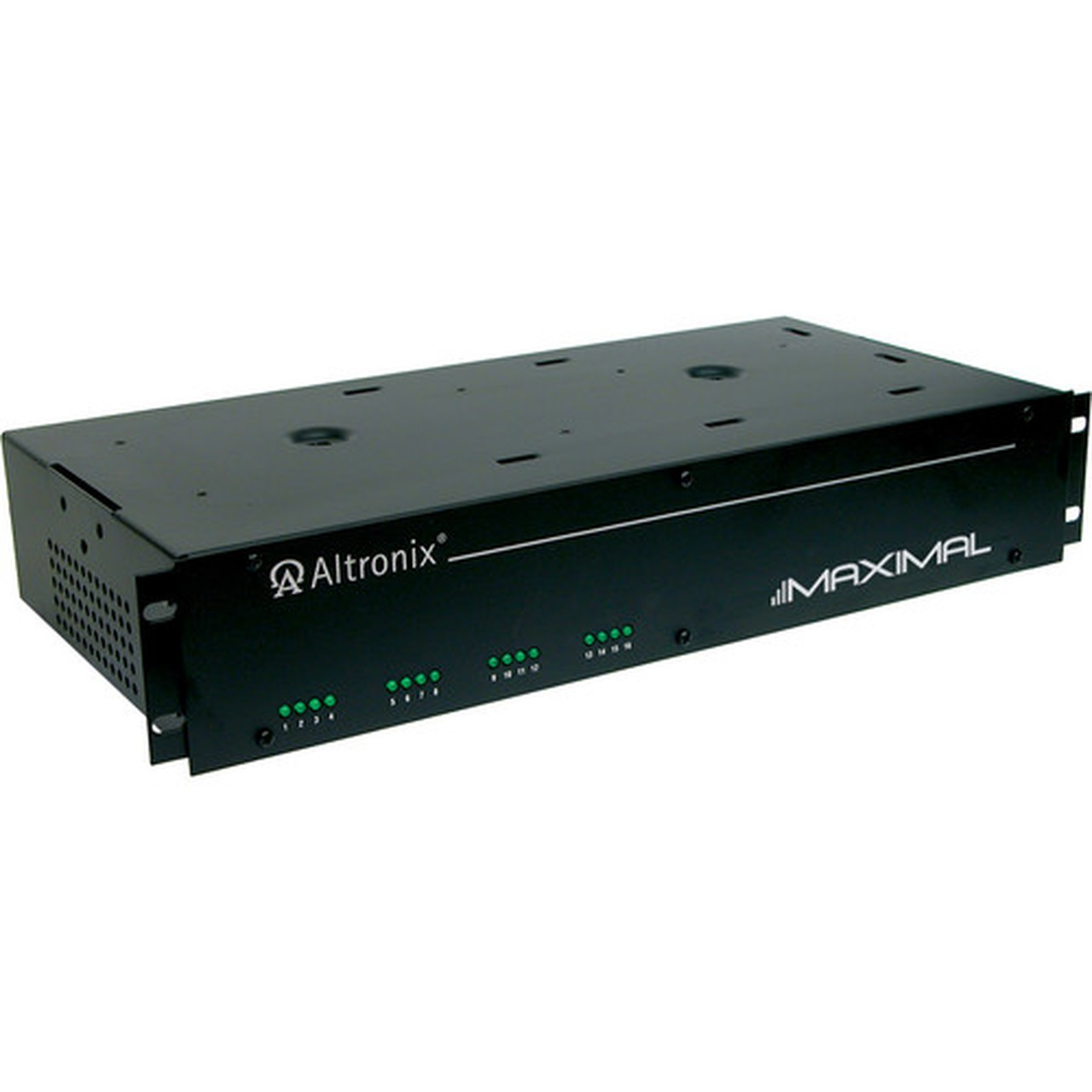

Altronix MAXIMAL3R Power Module - 110 V AC (MAXIMAL3R)

Marketing Information:

Maxim3R units distribute and switch power to access control systems and accessories. They convert a 115VAC 50/60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.

Receptacles: 16

Input Voltage: 110 V AC

Output Voltage: 12 V DC,24 V DC

Height: 3.25" (82.55 mm)

Width: 19.13" (485.78 mm)

Depth: 8.50" (215.90 mm)

Compatibility:

Access Control Devices:

• Mag Locks
• Electric Strikes
• Magnetic Door Holders

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: United States

Limited Warranty: Lifetime
