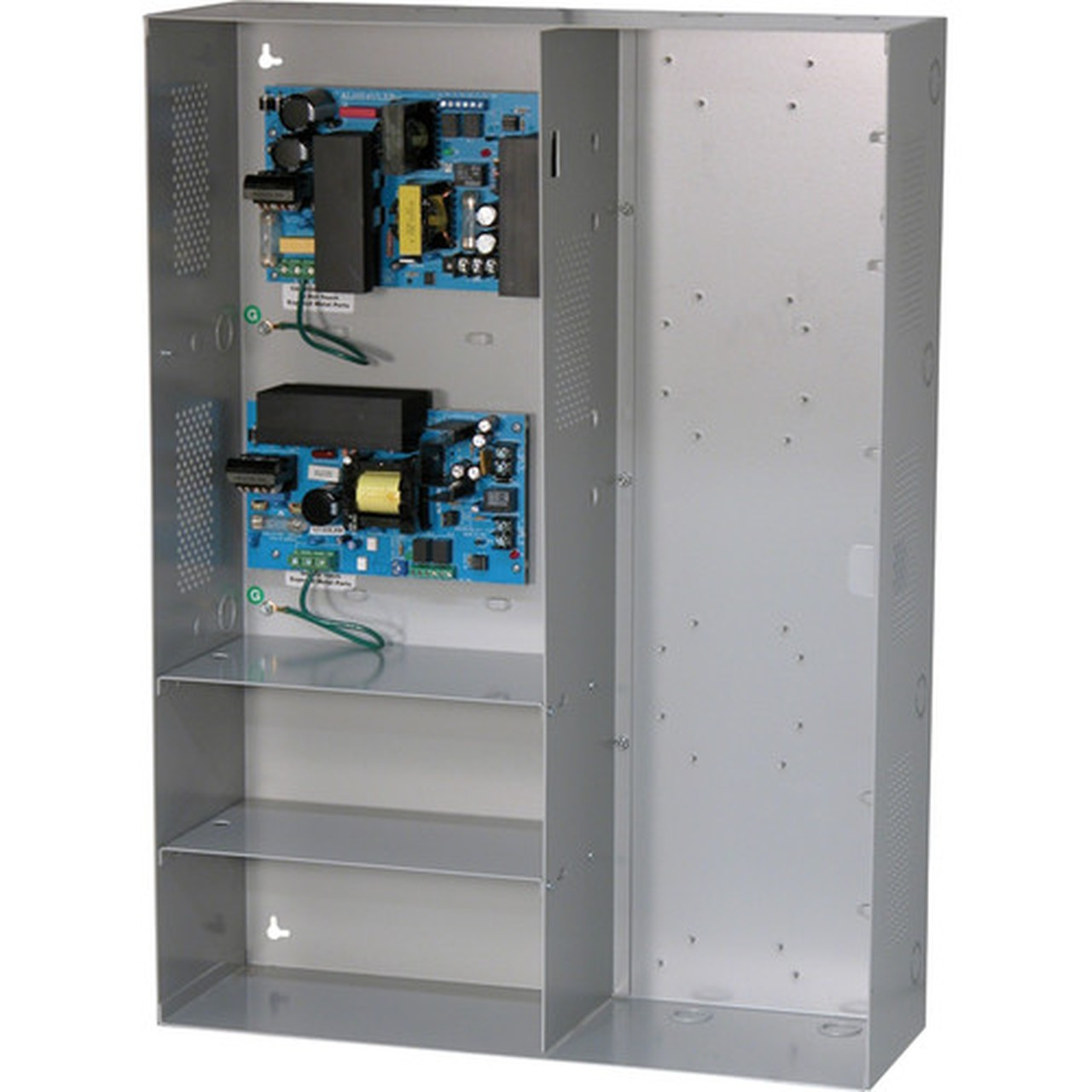

Altronix MAXIMAL75E - Wall Mount - 110 V AC Input - 12 V DC @ 10 A, 24 V DC @ 10 A Output (MAXIMAL75E)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Altronix
Altronix MAXIMAL75E - Wall Mount - 110 V AC Input - 12 V DC @ 10 A, 24 V DC @ 10 A Output (MAXIMAL75E)
- Access Control Systems
- Fire Alarm Applications
Marketing Information:
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Protection Type: Short Circuit,Thermal Overload
Input Voltage: 110 V AC
Output Voltage: 12 V DC,24 V DC
Output Voltage Detail: 12 V DC @ 10 A,24 V DC @ 10 A
Output Current: 10 A
Form Factor: Wall Mount
Height: 25.98" (660 mm)
Width: 19.02" (483 mm)
Depth: 6.26" (159 mm)
Weight (Approximate): 13.29 kg
Compatibility:
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | MAXIMAL75E |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Line | MAXIMAL |
| Product Model | 75E |
| Product Name | MAXIMAL75E |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit,Thermal Overload |
| Power Description | |
| Input Voltage | 110 V AC |
| Output Voltage | 12 V DC,24 V DC |
| Output Voltage Detail | 12 V DC @ 10 A,24 V DC @ 10 A |
| Output Current | 10 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 25.98" (660 mm) |
| Width | 19.02" (483 mm) |
| Depth | 6.26" (159 mm) |
| Weight (Approximate) | 13.29 kg |
| Miscellaneous | |
| Compatibility |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
