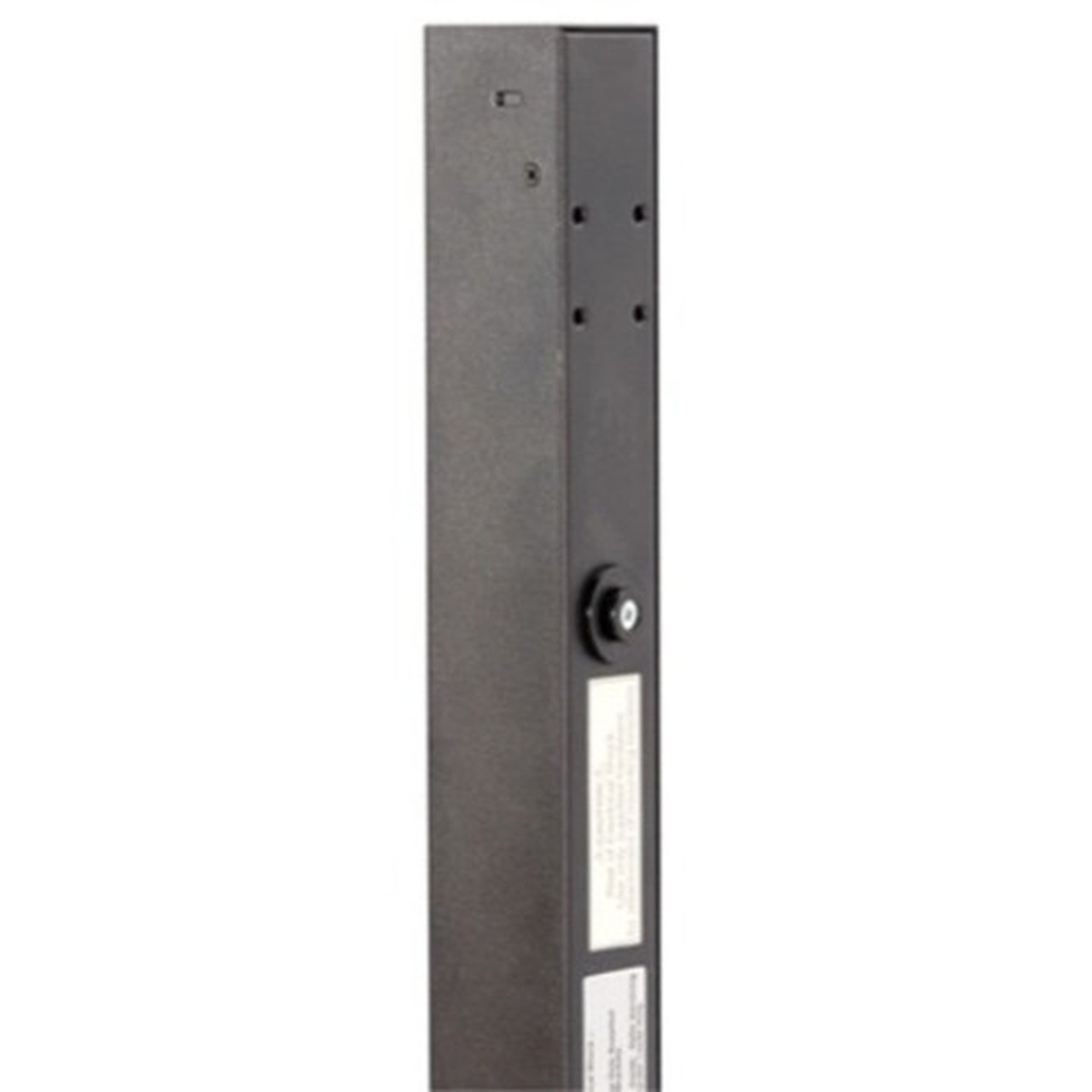

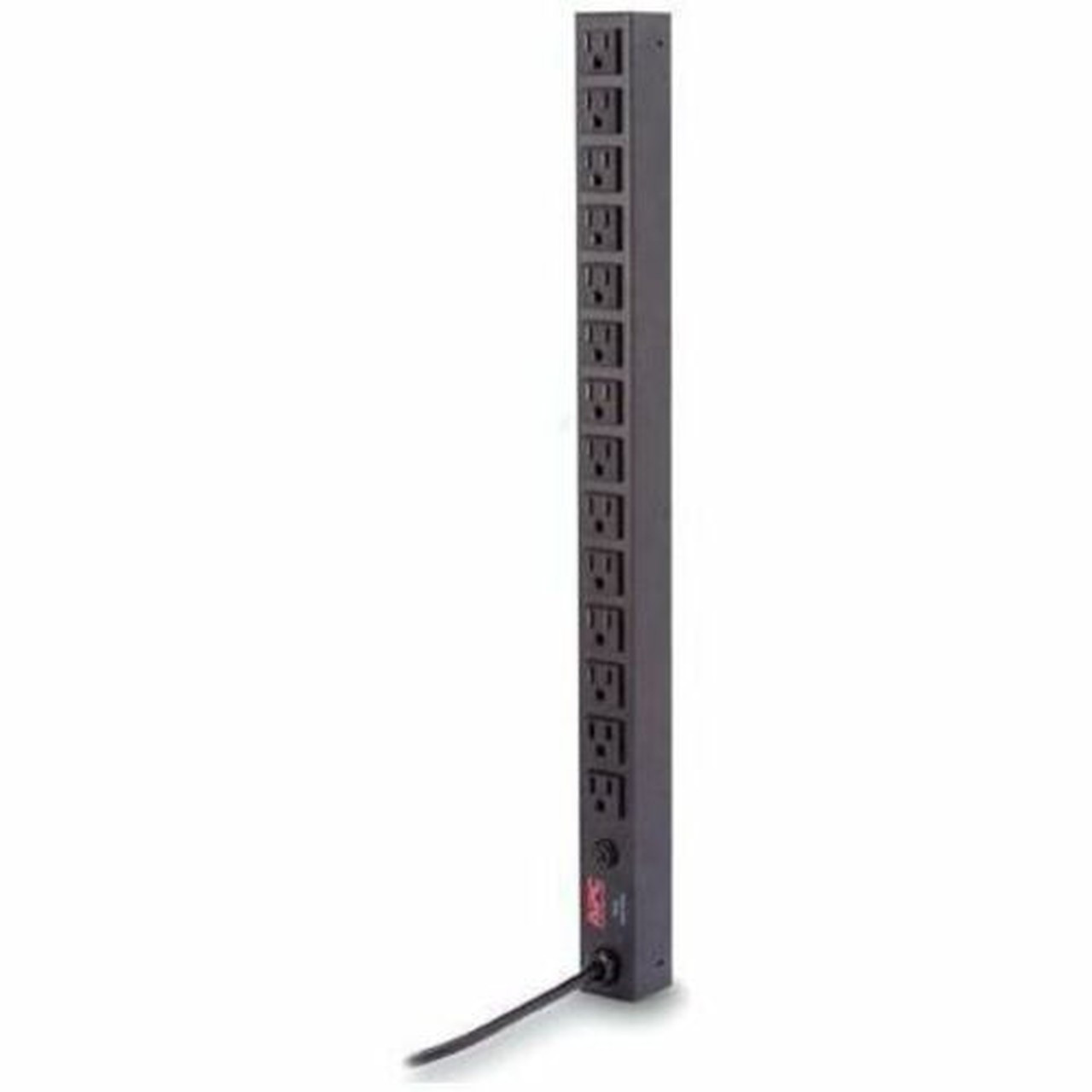

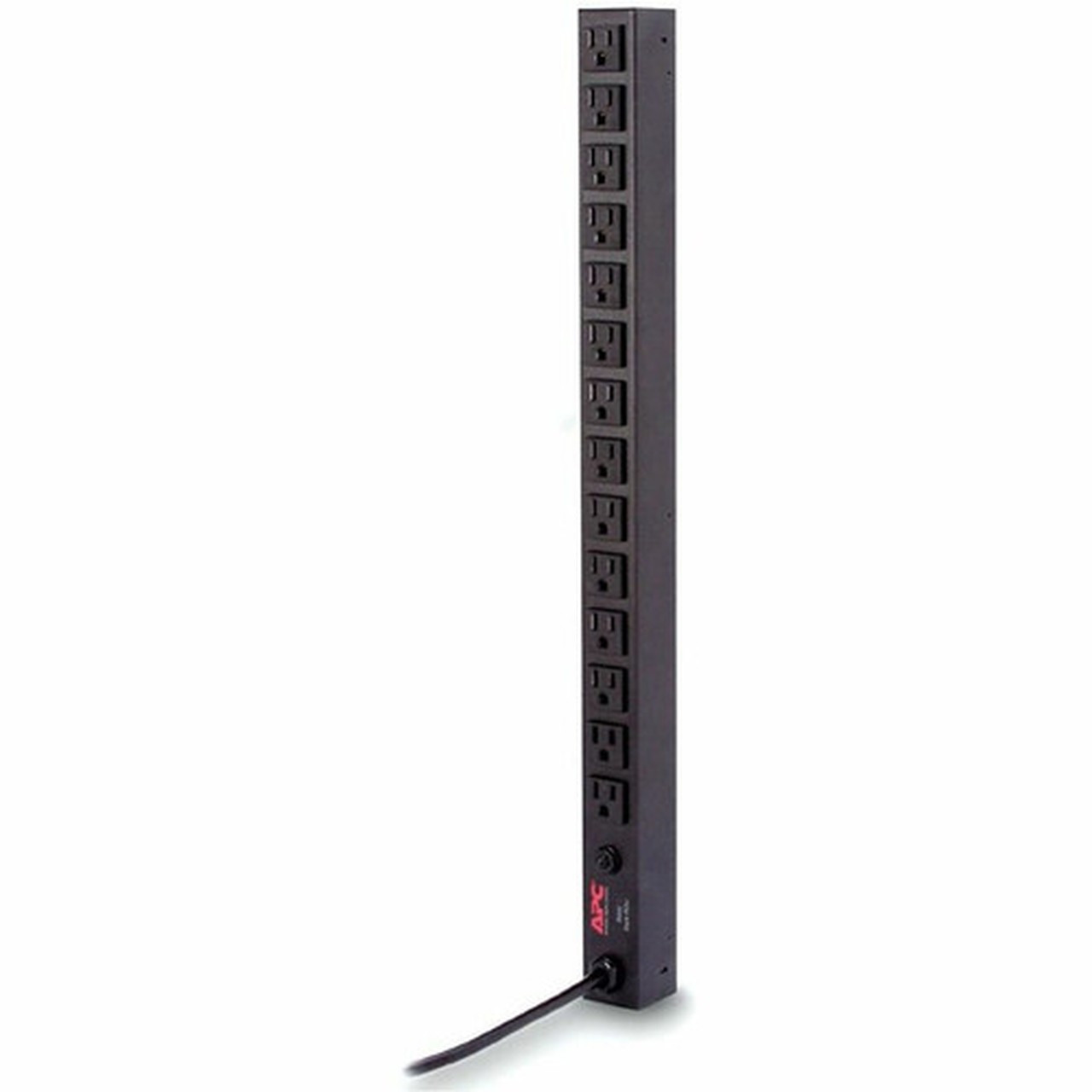

APC Basic Rack 1.8kVA PDU - 14 x NEMA 5-15R - 1.8kVA - Zero U Rack-mountable (AP9567)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Basic Rack 1.8kVA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit

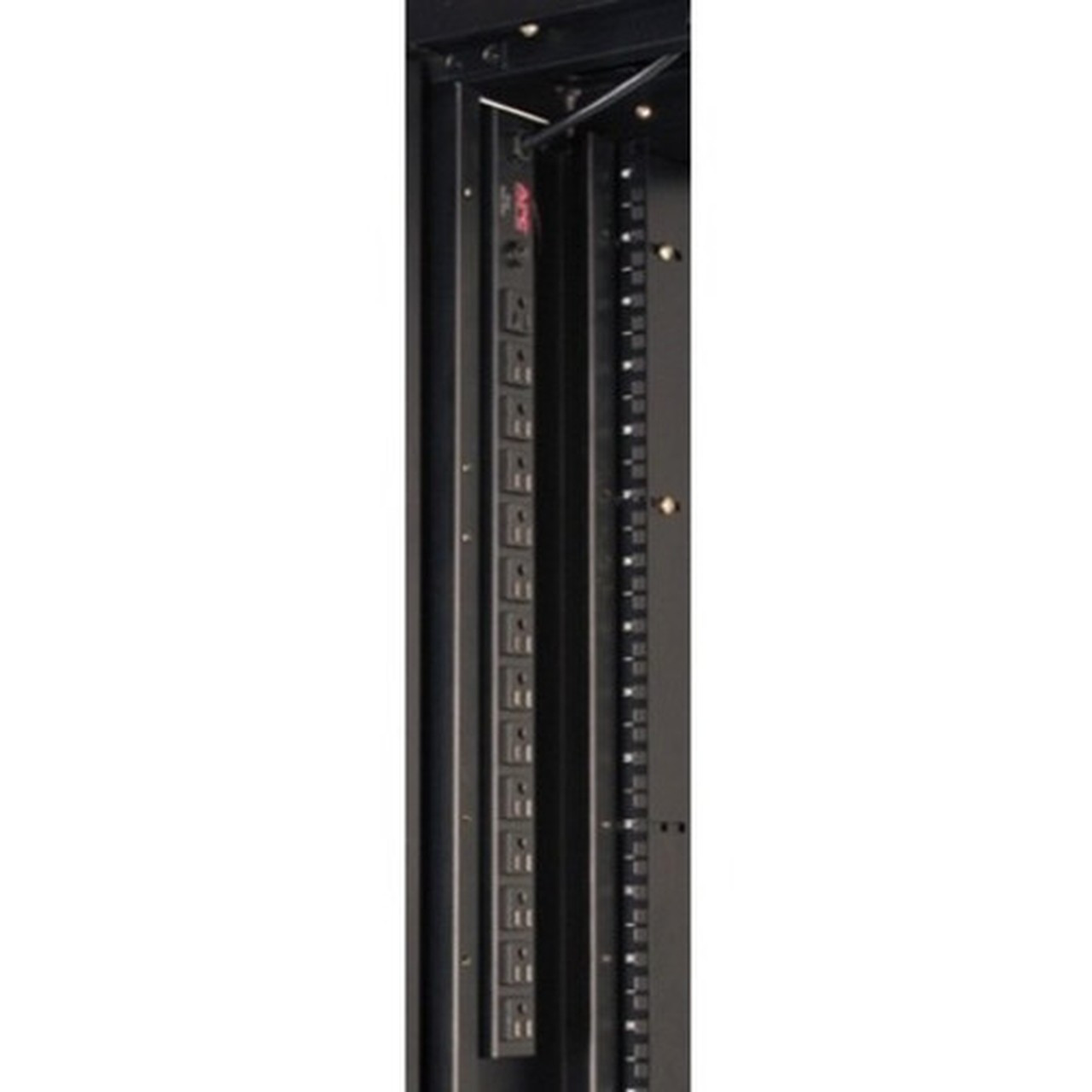

Marketing Information: APC Basic Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Toolless Mounting Kit
PDU Type: Basic
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 14 x NEMA 5-15R
Protection Type: Overload Protection
Input Voltage: 100 V,120 V
Output Voltage: 100 V AC,120 V AC
Power Rating (VA): 1.80 kVA
Product Color: Black
Mount Type: Rack-mountable
Rack Height: 0U
Cord Length: 12 ft
Height: 24.02" (610 mm)
Width: 1.73" (44 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 2.18 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
[custom-specifications]
Specifications | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | AP9567 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Basic Rack |
Product Name | Basic Rack 1.8kVA PDU |
Product Type | PDU |
Technical Information | |
PDU Type | Basic |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 14 x NEMA 5-15R |
Protection Type | Overload Protection |
Power Description | |
Input Voltage | 100 V,120 V |
Output Voltage | 100 V AC,120 V AC |
Power Rating (VA) | 1.80 kVA |
Physical Characteristics | |
Product Color | Black |
Mount Type | Rack-mountable |
Rack Height | 0U |
Cord Length | 12 ft |
Height | 24.02" (610 mm) |
Width | 1.73" (44 mm) |
Depth | 1.73" (44 mm) |
Weight (Approximate) | 2.18 kg |
Miscellaneous | |
Package Contents | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
[custom-options]
Product | APC by Schneider Electric EcoCare - 1 Year - Service - Technical |
SKU | ECO1PH1YAC01 |
Sale Price | $130.25 |
Product | APC by Schneider Electric EcoCare - 1 Year - Warranty - 24 x 7 x Next Business Day - On-site - Technical - Parts |
SKU | ECO1PH1YWITEAC01 |
Sale Price | $105.85 |
[/custom-options]
Warranty Infomartion
2 Year
