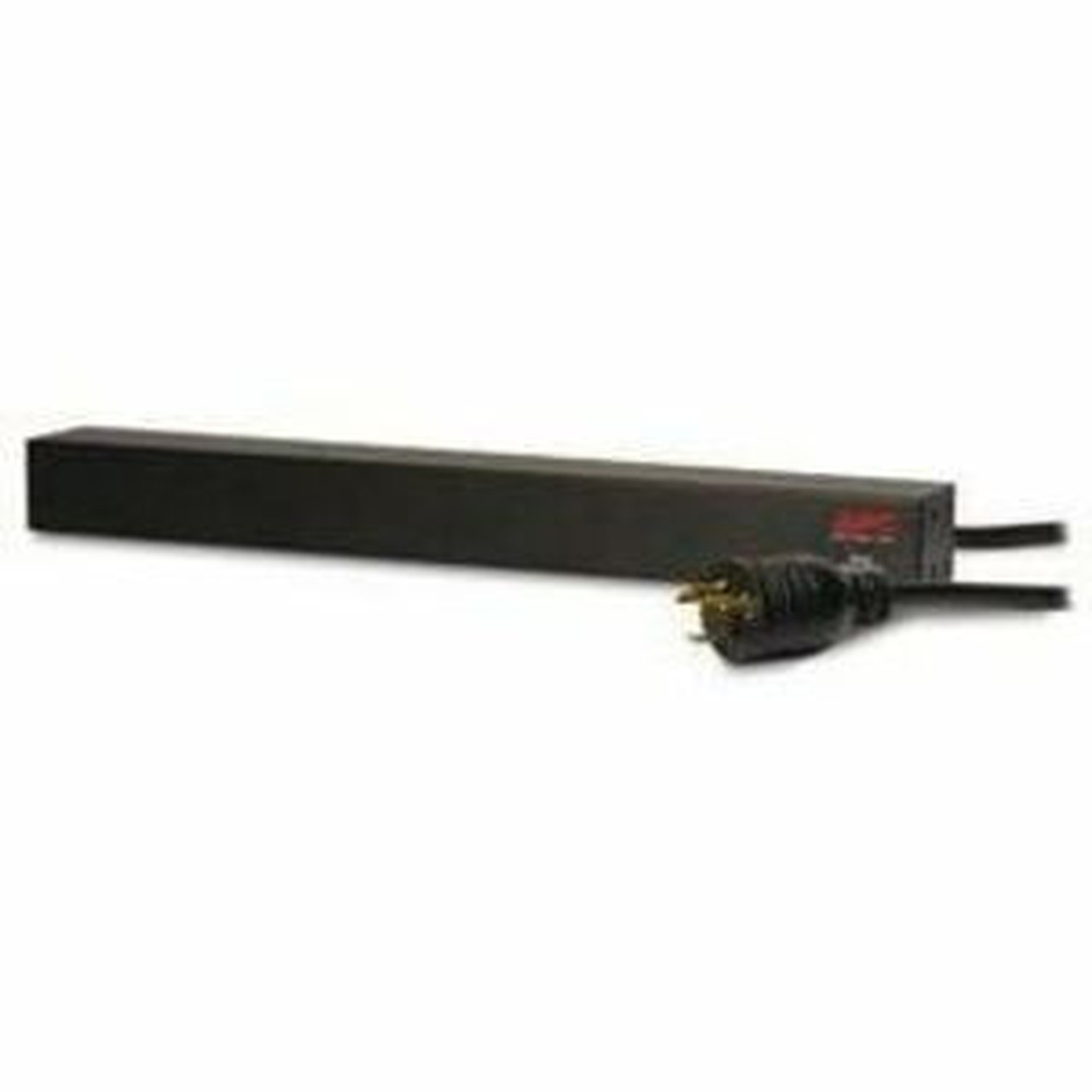

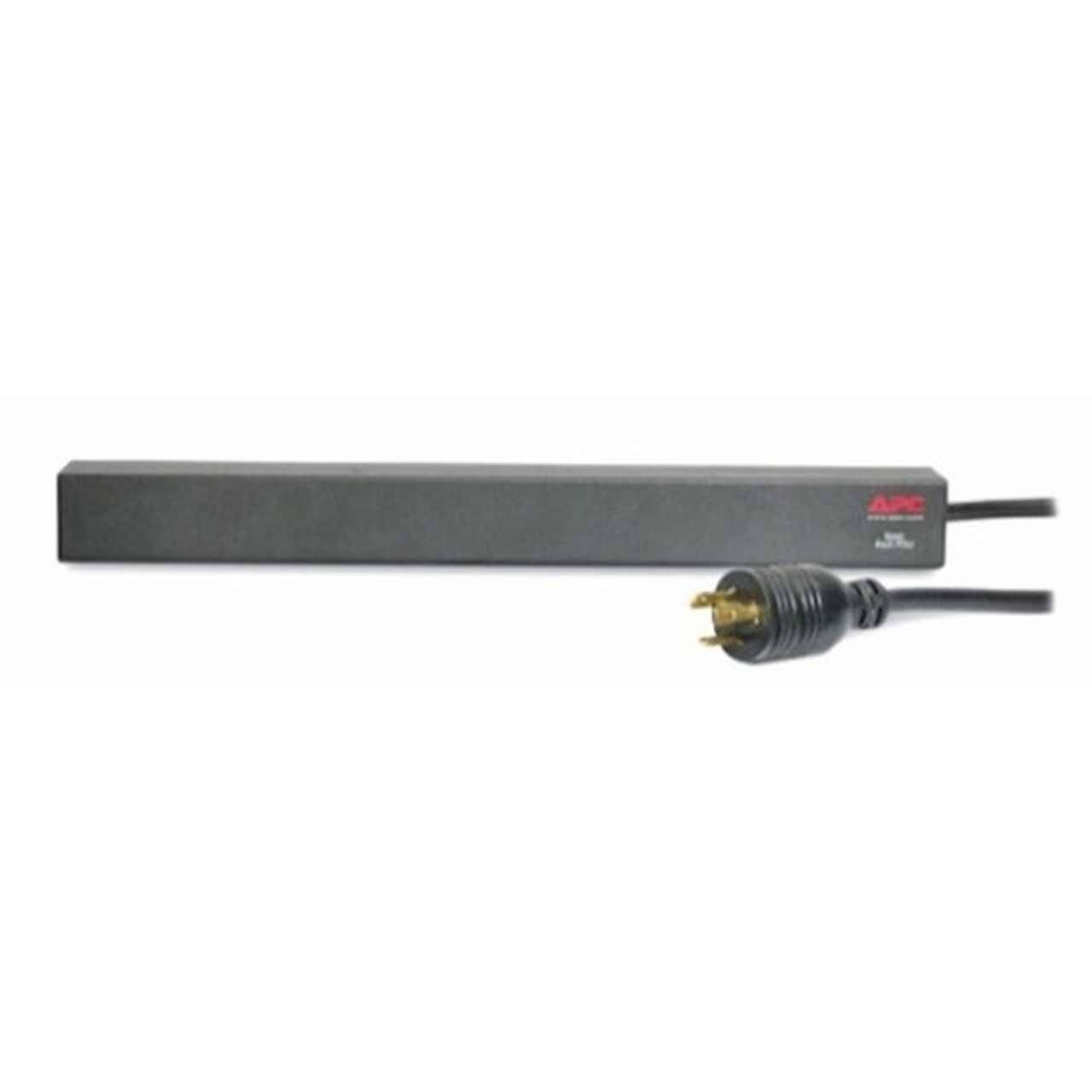

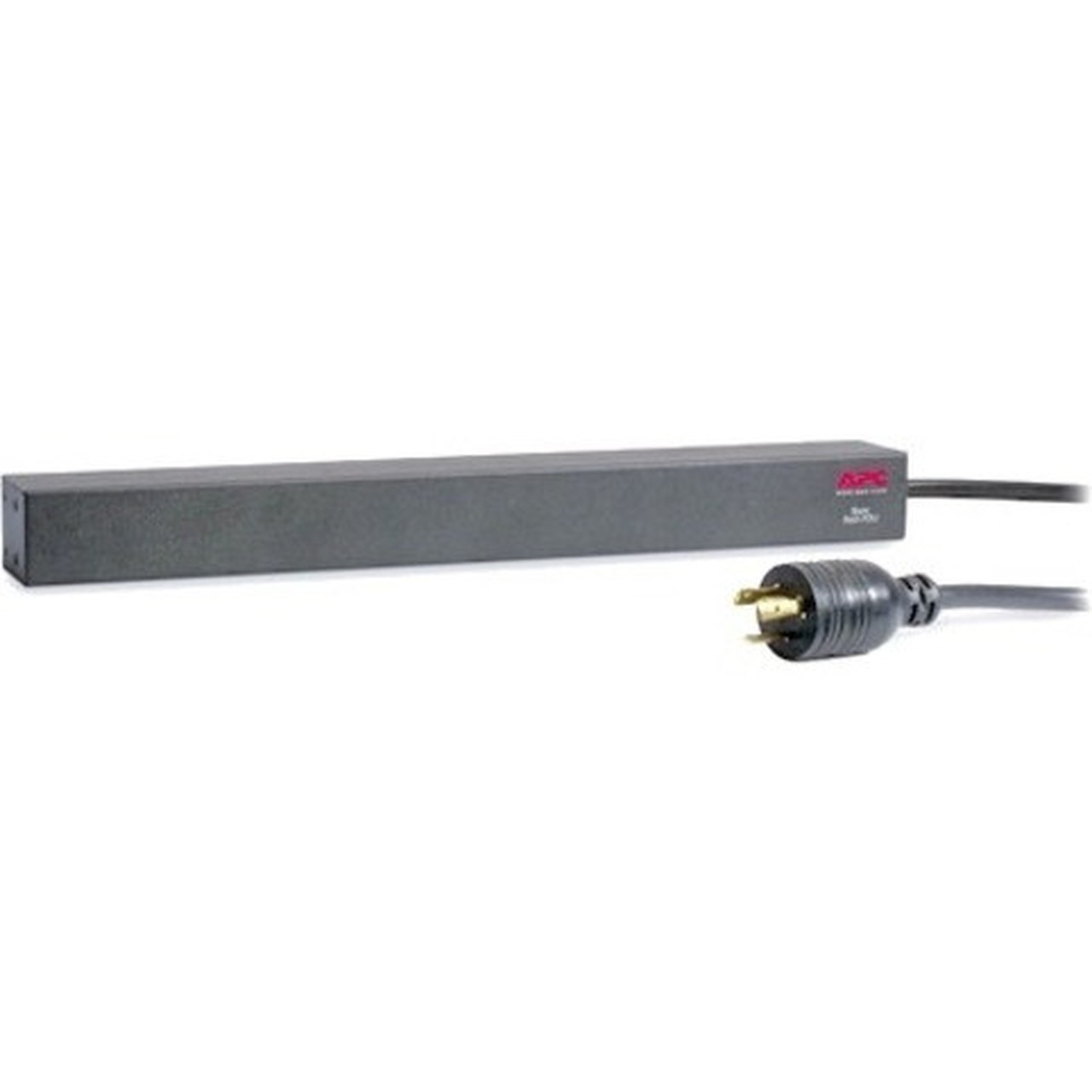

APC Basic Rack 3.328kVA PDU - 12 x IEC 320-C13 - 3.33kVA - 1U Rack-mountable (AP9566)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Basic Rack 3.328kVA PDU
- Installation guide
- Rack mounting brackets
Marketing Information: Reliable rack power distribution
PDU Type: Basic
Plug/Connector Type: NEMA L6-20P
Receptacle Type: IEC 60320 C13
Receptacle Detail: 12 x IEC 60320 C13
Input Voltage: 200 V,208 V,230 V
Output Voltage: 208 V AC
Power Rating (VA): 3.33 kVA
Product Color: Black
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 12 ft
Height: 1.73" (44 mm)
Width: 17.60" (447 mm)
Depth: 2.24" (57 mm)
Weight (Approximate): 2.50 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
- PDU provides active metering enabling energy optimization and circuit protection
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
[custom-specifications]
Specifications | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | AP9566 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Basic Rack |
Product Name | Basic Rack 3.328kVA PDU |
Product Type | PDU |
Technical Information | |
PDU Type | Basic |
Plug/Connector Type | NEMA L6-20P |
Receptacle Type | IEC 60320 C13 |
Receptacle Detail | 12 x IEC 60320 C13 |
Power Description | |
Input Voltage | 200 V,208 V,230 V |
Output Voltage | 208 V AC |
Power Rating (VA) | 3.33 kVA |
Physical Characteristics | |
Product Color | Black |
Mount Type | Rack-mountable |
Rack Height | 1U |
Cord Length | 12 ft |
Height | 1.73" (44 mm) |
Width | 17.60" (447 mm) |
Depth | 2.24" (57 mm) |
Weight (Approximate) | 2.50 kg |
Miscellaneous | |
Package Contents | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
[custom-options]

Product | APC by Schneider Electric EcoCare - 1 Year - Warranty - 24 x 7 x Next Business Day - On-site - Technical - Parts |
SKU | ECO1PH1YWITEAC01 |
Sale Price | $105.85 |

Product | APC by Schneider Electric EcoCare - 1 Year - Service - Technical |
SKU | ECO1PH1YAC01 |
Sale Price | $130.25 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
2 Year
