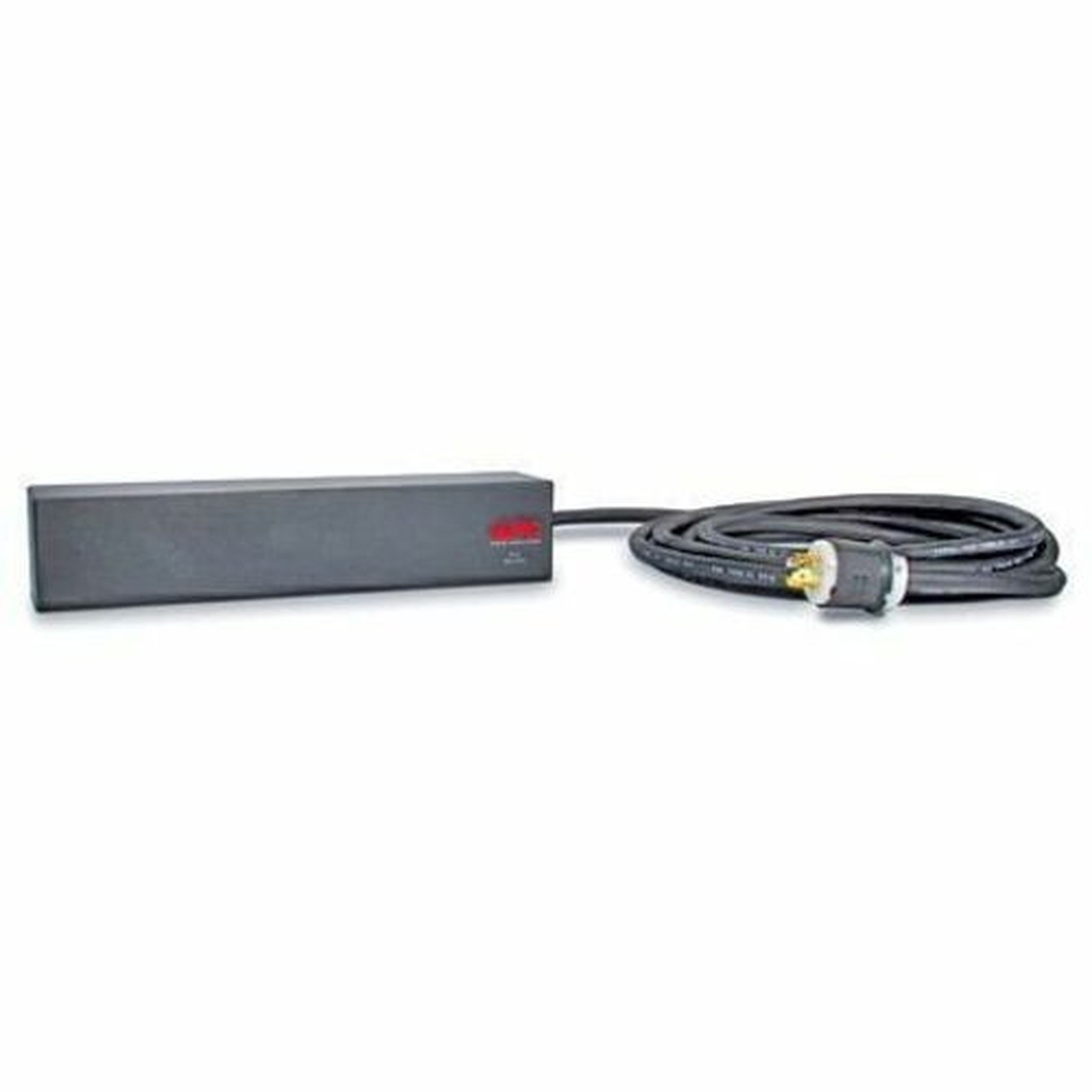

APC Basic Rack 4.992kVA PDU - 4 x NEMA L5-20R - 2U Rack-mountable (AP7580)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Basic Rack 4.992kVA PDU
- Installation guide
- Rack mounting brackets
Marketing Information: Reliable rack power distribution
PDU Type: Basic
Plug/Connector Type: NEMA L14-30P
Receptacle Type: NEMA L5-20R
Receptacle Detail: 4 x NEMA L5-20R
Input Voltage: 120 V,208 V
Output Voltage: 120 V AC
Power Rating (VA): 4.99 kVA
Product Color: Black
Mount Type: Rack-mountable
Rack Height: 2U
Cord Length: 28 ft
Height: 3.50" (89 mm)
Width: 17.20" (437 mm)
Depth: 3.50" (89 mm)
Weight (Approximate): 6.36 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
- Electric power fitted to racks of computers and networking equipment within a data center
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
[custom-specifications]
Specifications | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | AP7580 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Basic Rack |
Product Name | Basic Rack 4.992kVA PDU |
Packaged Quantity | 1 Each |
Product Type | PDU |
Technical Information | |
PDU Type | Basic |
Plug/Connector Type | NEMA L14-30P |
Receptacle Type | NEMA L5-20R |
Receptacle Detail | 4 x NEMA L5-20R |
Power Description | |
Input Voltage | 120 V,208 V |
Output Voltage | 120 V AC |
Power Rating (VA) | 4.99 kVA |
Physical Characteristics | |
Product Color | Black |
Mount Type | Rack-mountable |
Rack Height | 2U |
Cord Length | 28 ft |
Height | 3.50" (89 mm) |
Width | 17.20" (437 mm) |
Depth | 3.50" (89 mm) |
Weight (Approximate) | 6.36 kg |
Miscellaneous | |
Package Contents | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Infomartion
2 Year
