- Provide circuit protection and easy configuration for trouble-free access
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- #atr : 12091# couples appliances together
Marketing Information
The APC by Schneider Electric basic Rack PDU distributes power to the devices in the rack.
Input Receptacles
Output Receptacles
Input Voltage
Output Voltage
Input Current
Height
Width
Depth
Weight (Approximate)
Environmentally Friendly
Environmental Certification
[custom-specifications]
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP6003A
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Series: Basic
Product Model: AP6003A

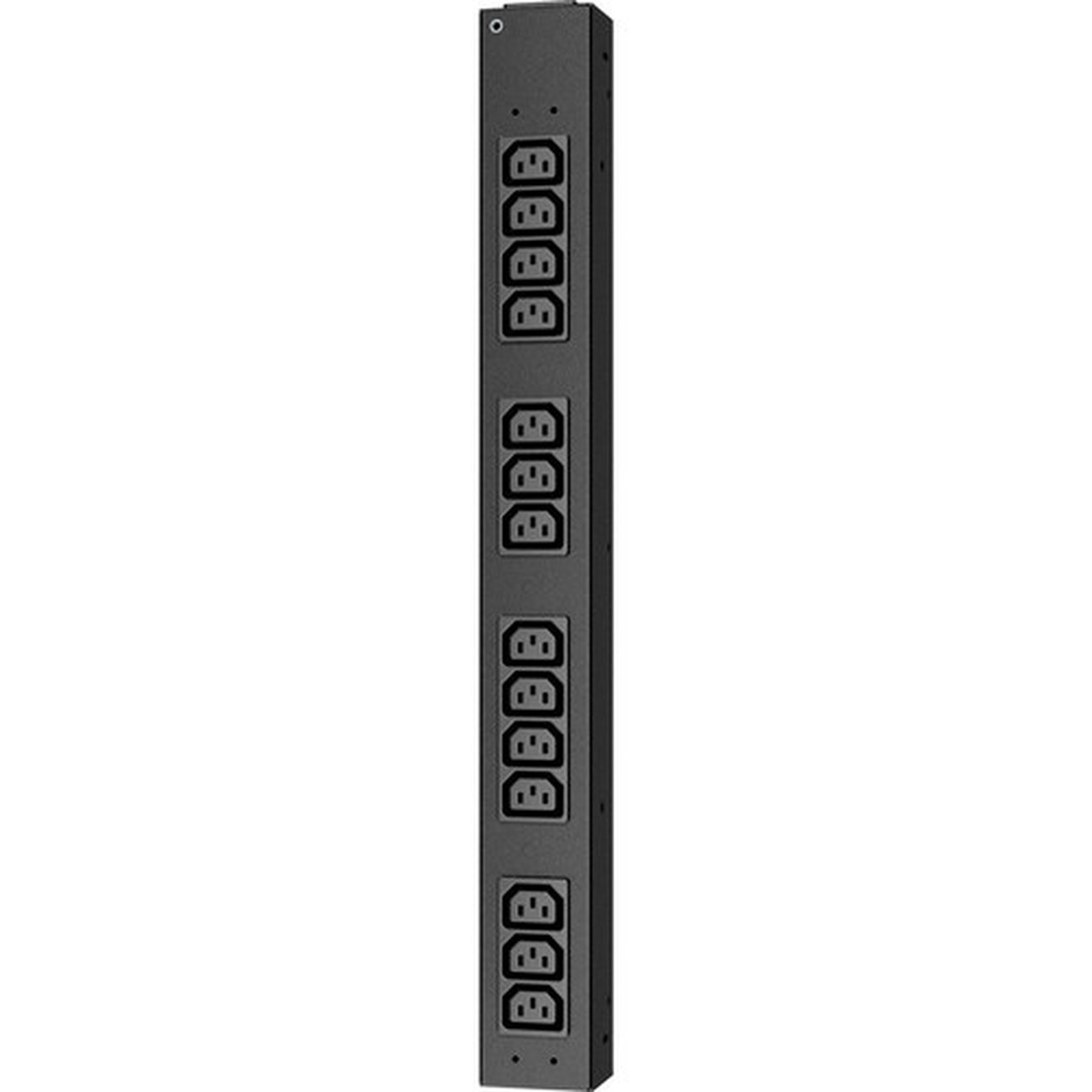

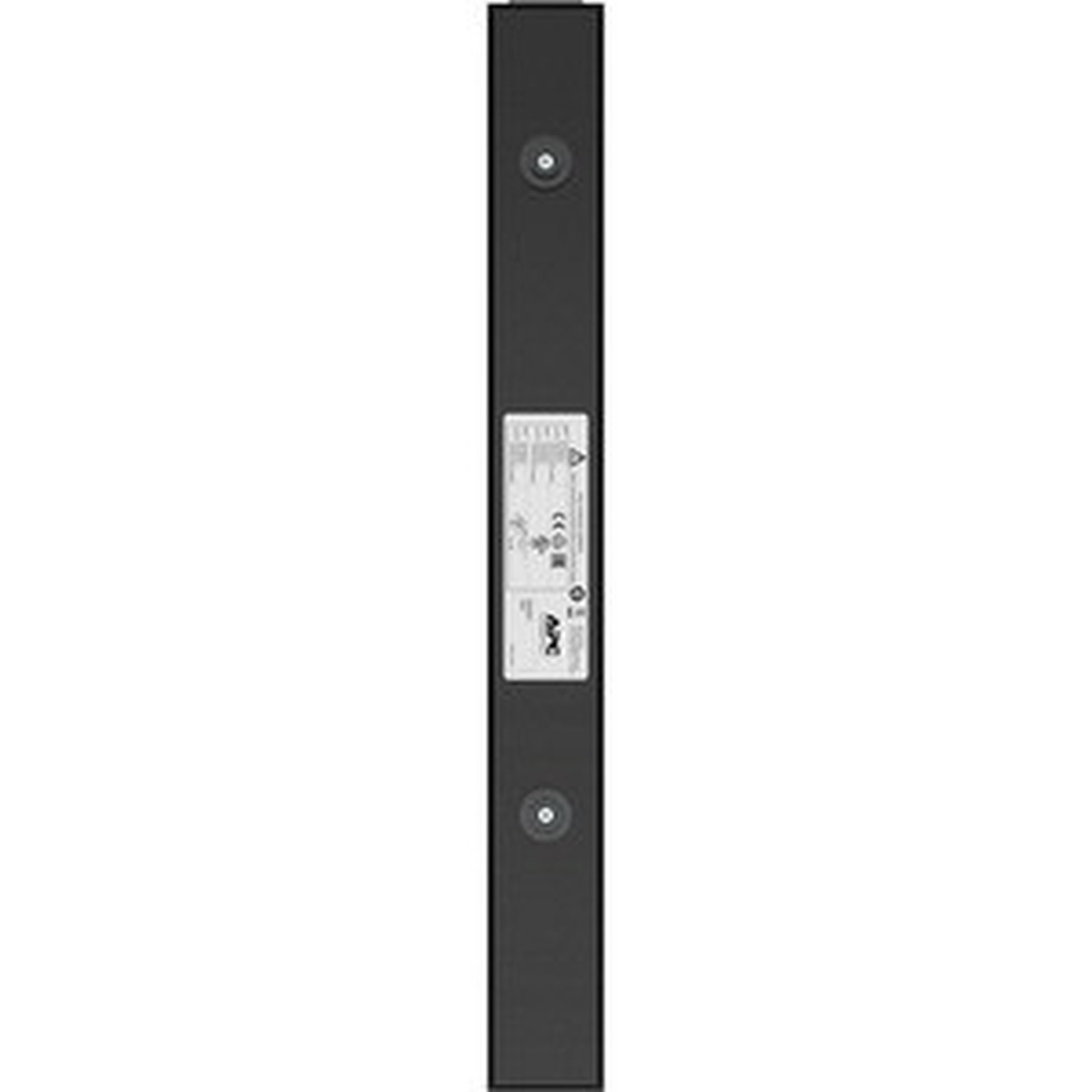

Product Name: Basic AP6003A 14-Outlet PDU
Product Type: PDU
Technical Information
Input Receptacles: IEC 60320 C20
Output Receptacles: 14 x IEC 60320 C13
Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Input Current: 16 A
Physical Characteristics
Height: 20.59" (522.99 mm)
Width: 2.20" (55.88 mm)
Depth: 1.85" (46.99 mm)
Weight (Approximate): 1.40 kg
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
