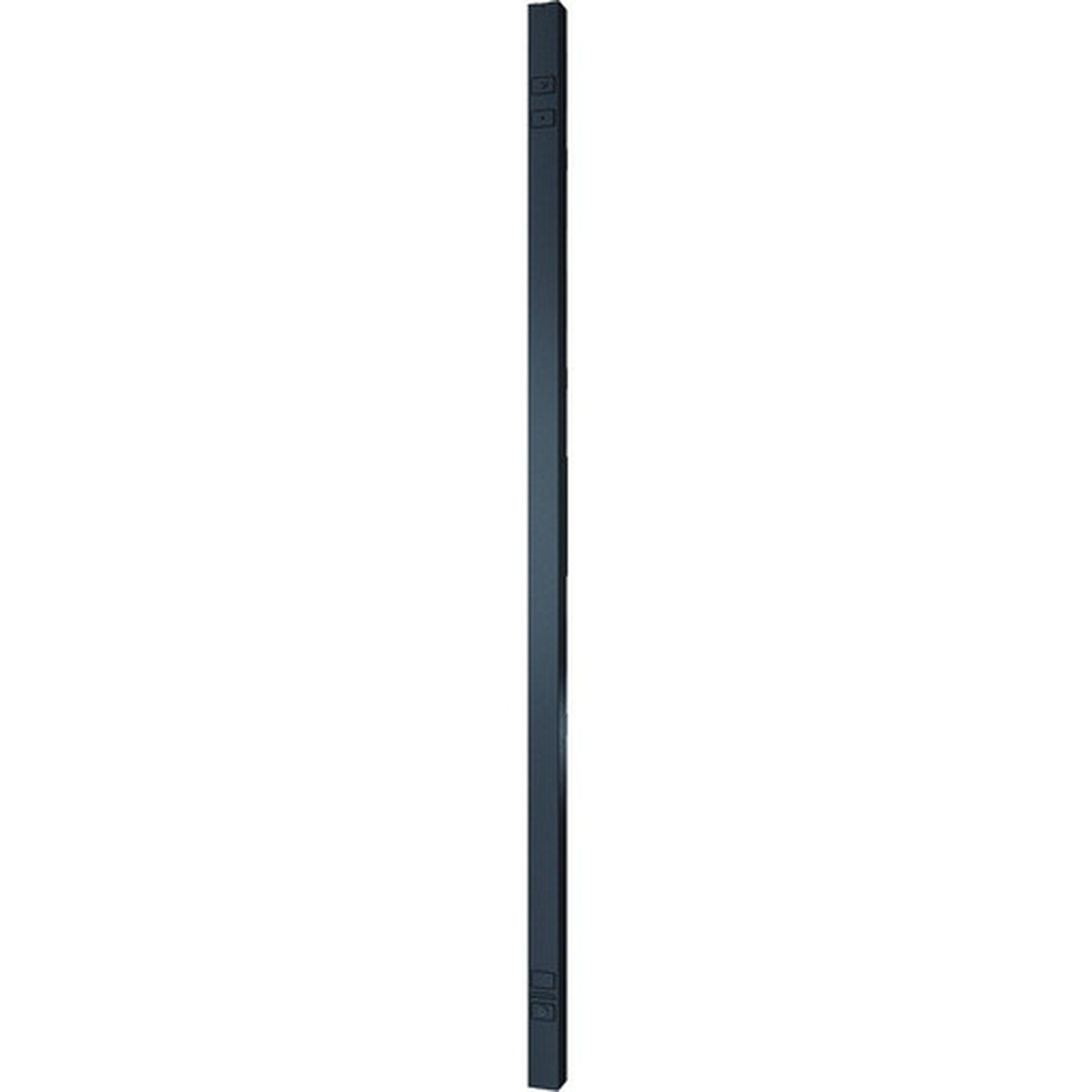

APC by Schneider Electric Metered-by-Outlet Rack PDU - Metered-by-Outlet - NEMA L6-30P - 230 V AC - 0U - Rack-mountable (AP8441)

(No reviews) Write a Review
$1,984.87
$1,881.32
SKU: AP8441
UPC: 731304000000
Weight: 23.10 LBS
Adding to cart… The item has been added
    Marketing Information:

    World leader in Rack Power Distribution now with Metering-by-Outlet!

    APC Metered-by-outlet Rack Power Distribution Units (PDUs) provide active metering of individual outlets to enable energy optimization and detailed capacity planning. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered-by-outlet rack PDUs provide a more granular level of power utilization data to allow Data Center Managers to make more precise decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered-by-outlet Rack PDUs include individual outlet power metering, a temperature/humidity sensor port, and locking IEC receptacles. Users can access and configure Metered-by-outlet rack PDUs through secure Web, SNMP, or Telnet Interfaces and are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Capacity Manager and Change Manager.


    PDU Type: Metered-by-Outlet
    Plug/Connector Type: NEMA L6-30P
    Plug/Connector Detail: 1 x NEMA L6-30P
    Receptacle Type:
    • IEC 60309 C13
    • IEC 60309 C19

    Input Voltage: 230 V AC
    Output Voltage: 230 V AC
    Input Current: 30 A
    Mount Type: Rack-mountable
    Rack Height: 0U
    Height: 72" (1828.80 mm)
    Width: 86.61 mil (2.20 mm)
    Depth: 2" (50.80 mm)
    Weight (Approximate): 8.21 kg
    Package Contents:
    • Metered-by-Outlet Rack PDU
    • CAN Port Terminator
    • Installation Guide
    • Rack Mounting Brackets
    • Safety Guide
    • Serial Configuration Cable

    Environmentally Friendly: Yes
    Environmental Certification:
    • REACH
    • RoHS

    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8441
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Metered
Product Name: Metered-by-Outlet Rack PDU
Product Type: PDU
Technical Information
PDU Type: Metered-by-Outlet
Plug/Connector Type: NEMA L6-30P
Plug/Connector Detail: 1 x NEMA L6-30P
Receptacle Type:
  • IEC 60309 C13
  • IEC 60309 C19

Power Description
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Input Current: 30 A
Physical Characteristics
Mount Type: Rack-mountable
Rack Height: 0U
Height: 72" (1828.80 mm)
Width: 86.61 mil (2.20 mm)
Depth: 2" (50.80 mm)
Weight (Approximate): 8.21 kg
Miscellaneous
Package Contents:
  • Metered-by-Outlet Rack PDU
  • CAN Port Terminator
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable

Environmentally Friendly: Yes
Environmental Certification:
  • REACH
  • RoHS

Warranty
Limited Warranty: 2 Year
