Marketing Information: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Output Receptacles: - 6 x IEC 60320 C13
- 12 x IEC 60320 C19
Protection Type: Overload ProtectionInput Voltage: 230 V ACOutput Voltage: 208 V ACPower Rating (VA): 17.30 kVAManagement: Protocols:
Placement: RackHeight: 72.01" (1829 mm)Width: 2.20" (56 mm)Depth: 2.01" (51 mm)Weight (Approximate): 9.50 kgPackage Contents: - Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Serial Configuration Cable
Environmentally Friendly: YesEnvironmental Certification: Limited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: AP8866
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Metered Rack

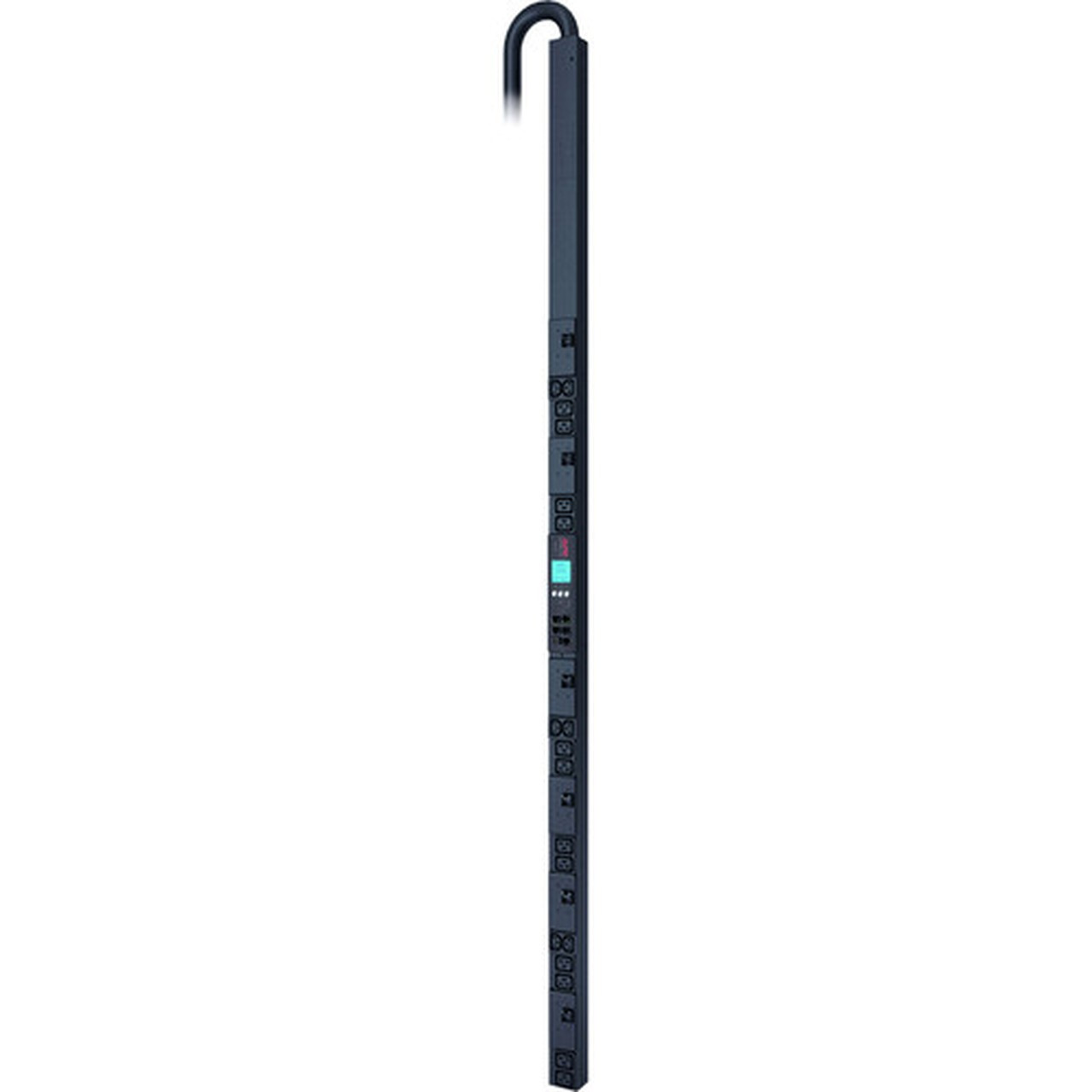

Product Name: Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Product Type: PDU
Technical InformationOutput Receptacles:
- 6 x IEC 60320 C13
- 12 x IEC 60320 C19
Protection Type: Overload Protection
Power DescriptionInput Voltage: 230 V AC
Output Voltage: 208 V AC
Power Rating (VA): 17.30 kVA
ManagementManagement:
Protocols:
Physical CharacteristicsPlacement: Rack
Height: 72.01" (1829 mm)
Width: 2.20" (56 mm)
Depth: 2.01" (51 mm)
Weight (Approximate): 9.50 kg
MiscellaneousPackage Contents:
- Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Serial Configuration Cable
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 2 Year
