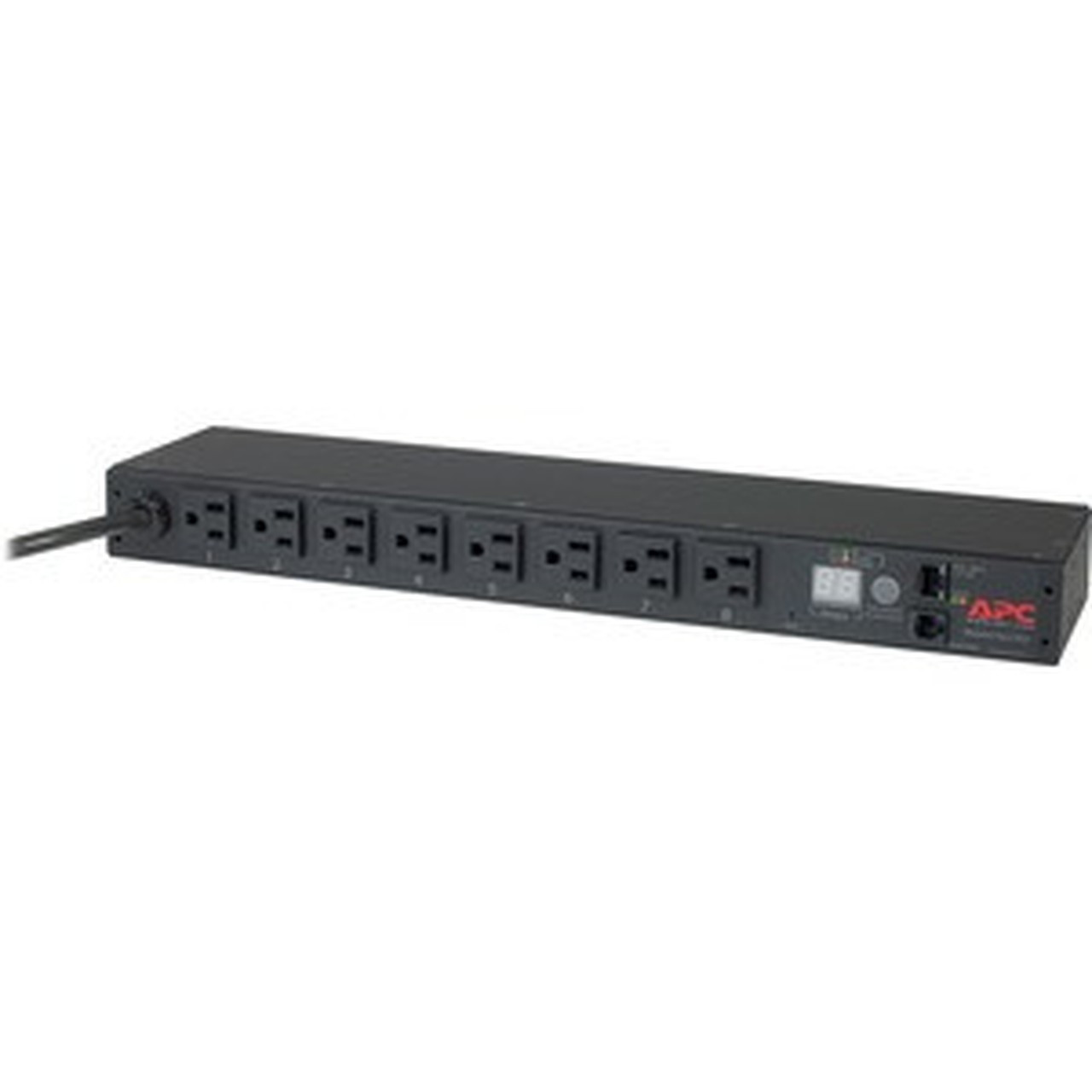

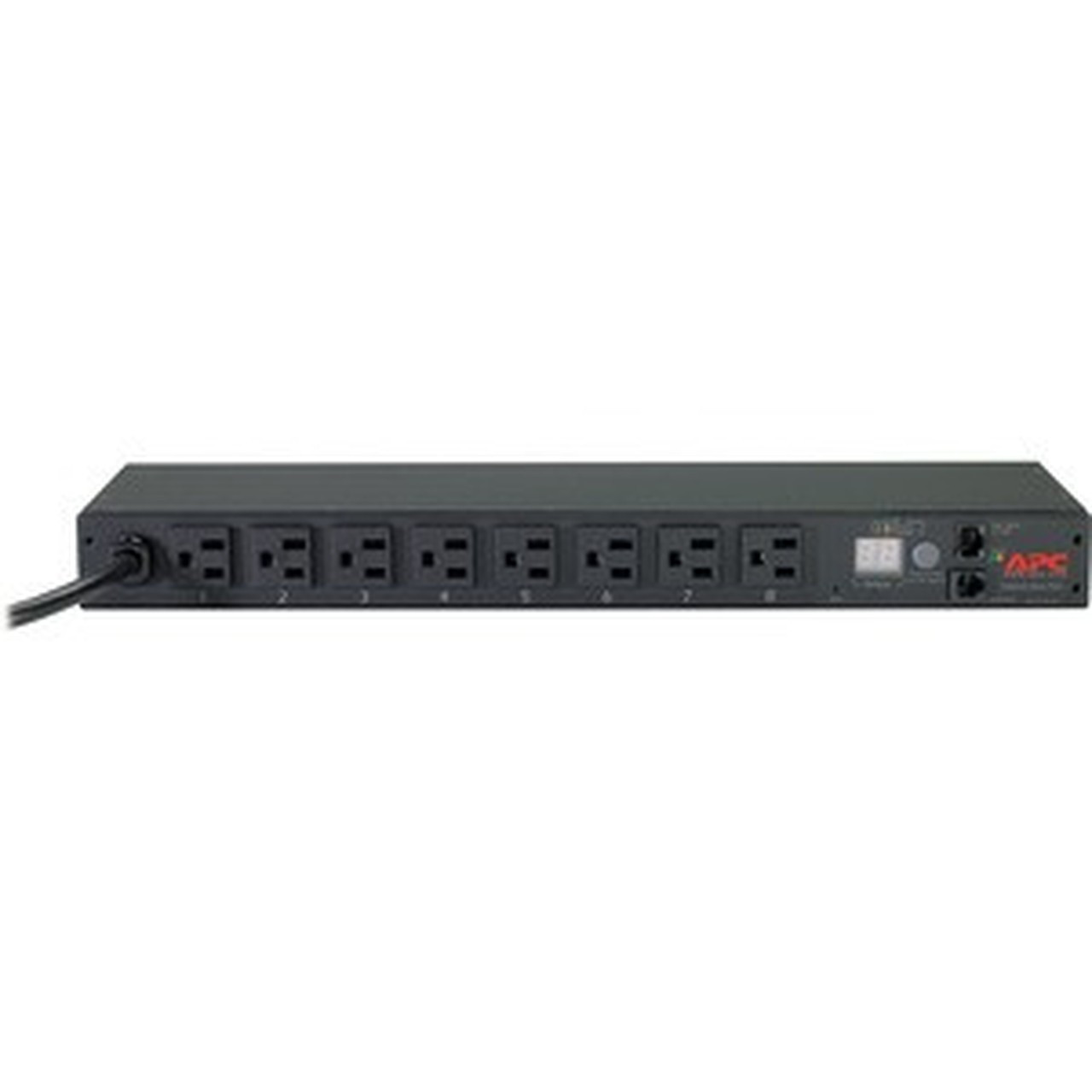

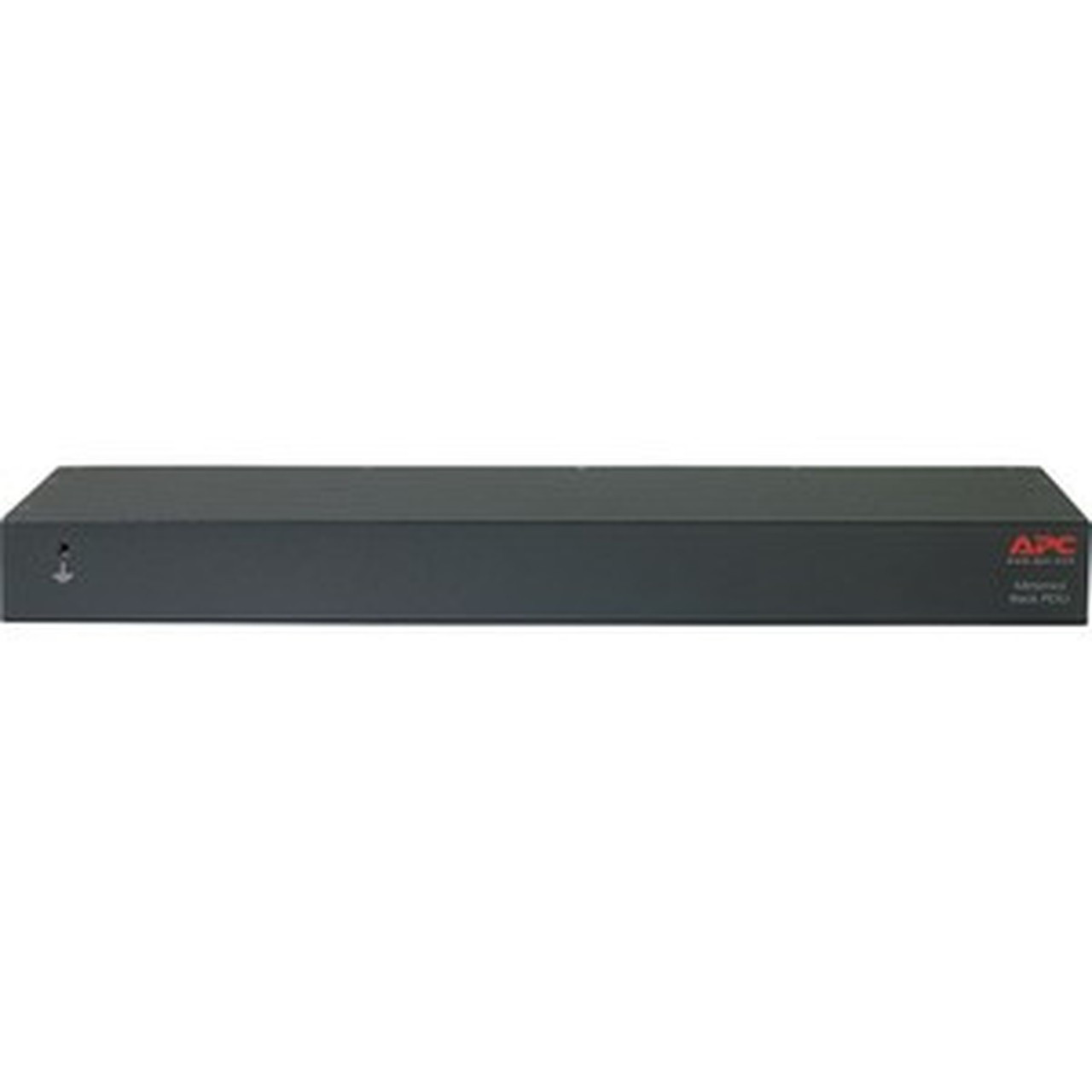

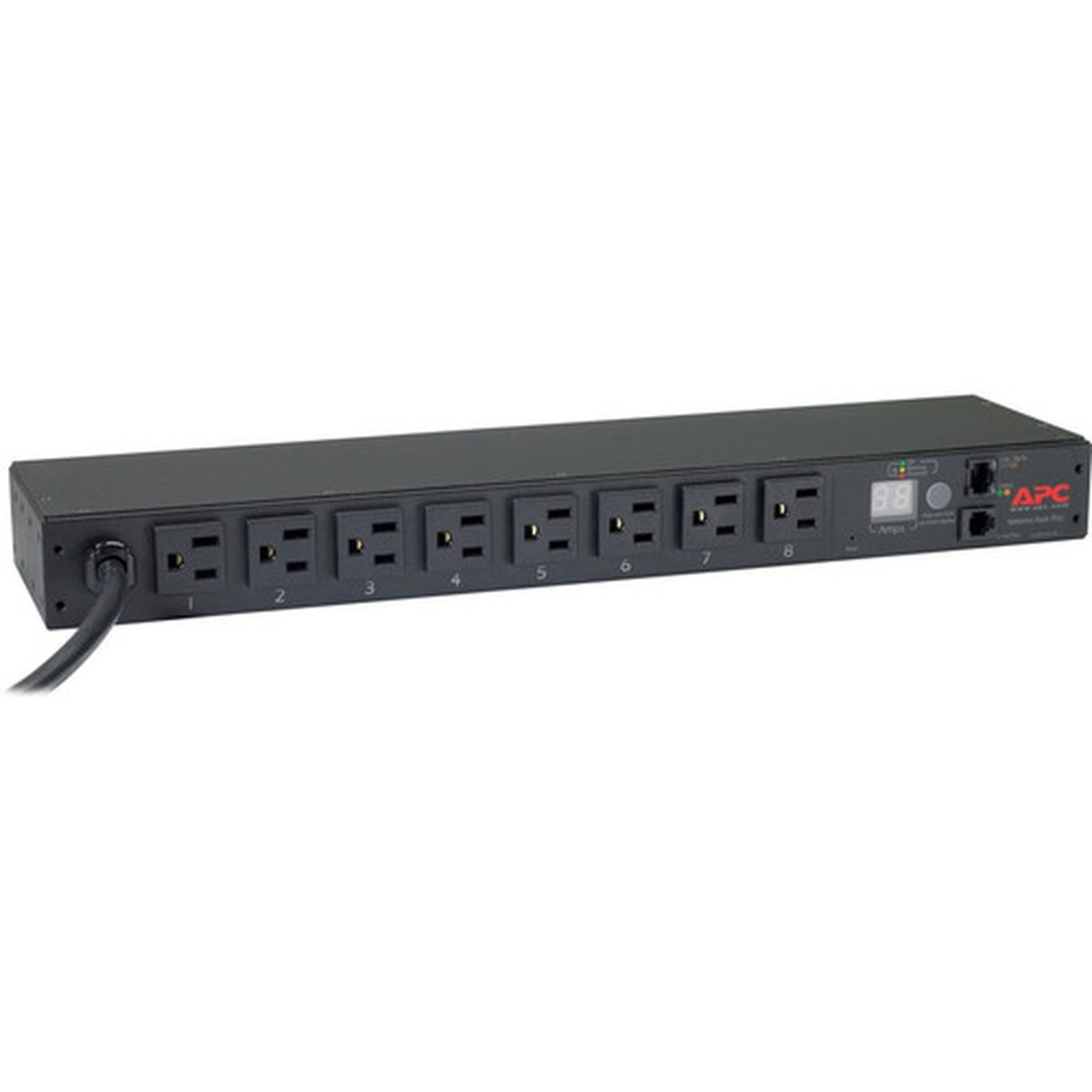

APC by Schneider Electric Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15 - Metered - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - (AP7800B)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Schneider Electric
APC by Schneider Electric Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15 - Metered - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - (AP7800B)
- Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
- Cord retention bracket(s)
- Installation guide
- Rack mounting brackets
- User manual
Marketing Information: Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
PDU Type: Metered
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Input Voltage: 100 V,120 V
Output Voltage: 120 V AC
Input Current: 15 A
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 12 ft
Height: 1.73" (44 mm)
Width: 17.48" (444 mm)
Depth: 4.02" (102 mm)
Weight (Approximate): 1.73 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7800B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15 |
| Product Type | PDU | Technical Information |
| PDU Type | Metered |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R | Power Description |
| Input Voltage | 100 V,120 V |
| Output Voltage | 120 V AC |
| Input Current | 15 A | Physical Characteristics |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 12 ft |
| Height | 1.73" (44 mm) |
| Width | 17.48" (444 mm) |
| Depth | 4.02" (102 mm) |
| Weight (Approximate) | 1.73 kg | Miscellaneous |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
[/custom-specifications]
[custom-options]
| Product | APC by Schneider Electric Service Pack - Extended Warranty - 1 Year - Warranty - 24 x 7 - Technical - Physical |
| SKU | WBEXTWAR1YR-AC-02 |
| Sale Price | $69.19 |
| Product | APC by Schneider Electric EcoCare - 1 Year - Service - Technical |
| SKU | ECO1PH1YAC02 |
| Sale Price | $130.25 |
| Product | APC by Schneider Electric EcoCare - 1 Year - Warranty - 24 x 7 x Next Business Day - On-site - Technical - Parts |
| SKU | ECO1PH1YWITEAC02 |
| Sale Price | $105.85 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
Warranty Infomartion
2 Year
