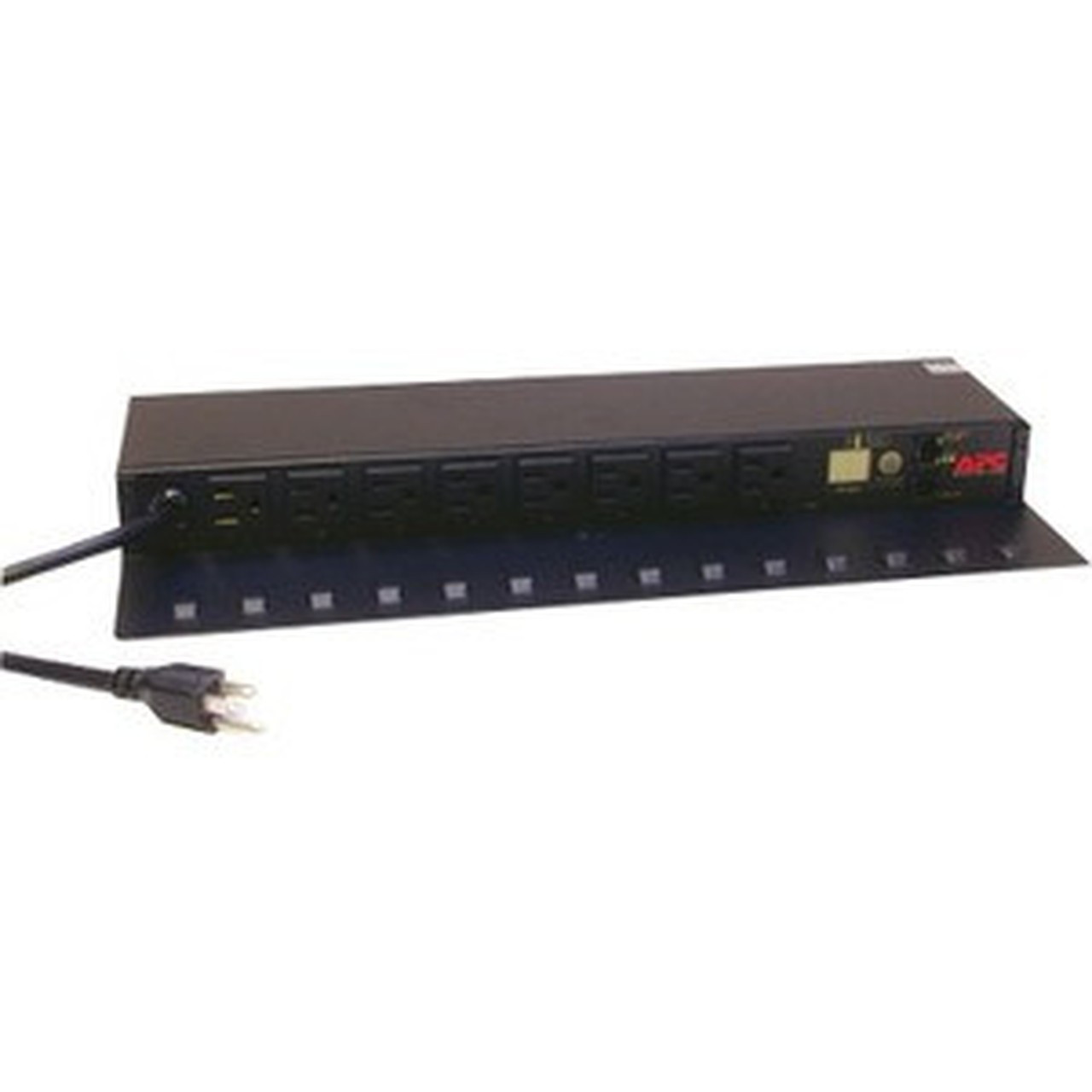

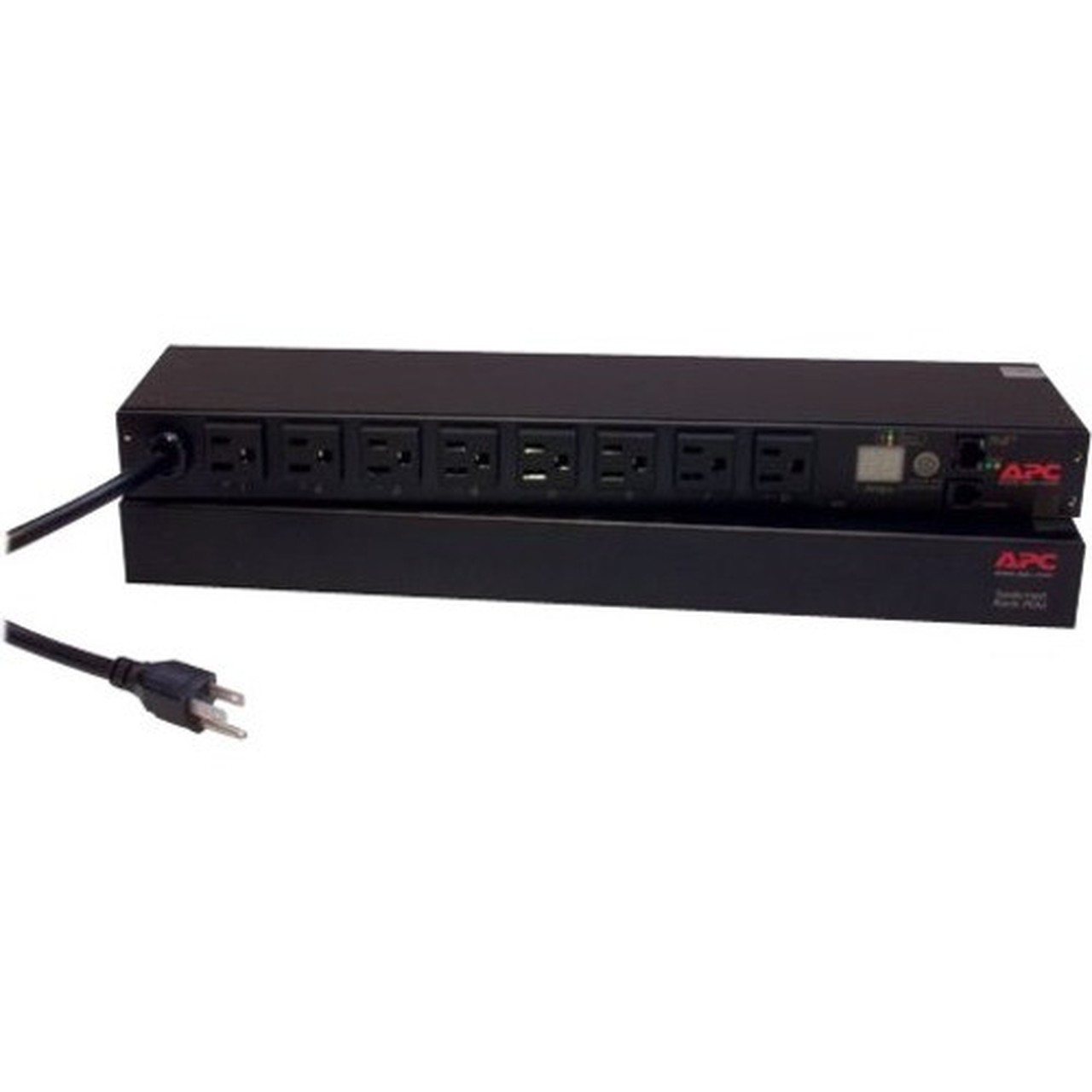

APC by Schneider Electric Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15 - Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1.44 kW (AP7900B)

(No reviews) Write a Review
$919.87
$879.88
SKU: AP7900B
UPC: 731304331568
Availability: Toronto
Weight: 8.25 LBS
Adding to cart… The item has been added
  • Racks enhance the reliability and working of the PDU
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • #atr : 12091# couples appliances together
    Marketing Information: APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
    Input Receptacles: 1 x NEMA 5-15P
    Output Receptacles: 8 x NEMA 5-15R
    Input Voltage: 120 V AC
    Output Voltage: 120 V AC
    Power Rating (VA): 1.44 kVA
    Input Current: 15 A
    Mounting Orientation: Horizontal
    Placement: Rack
    Rack Height: 1U
    Height: 1.73" (43.94 mm)
    Width: 17.50" (444.50 mm)
    Depth: 4.25" (107.95 mm)
    Weight (Approximate): 2.27 kg
    Package Contents:
    • Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
    • Cord Retention Bracket(s)
    • Horizontal Mounting Brackets
    • Installation Guide
    • User Manual

    Environmentally Friendly: Yes
    Environmental Certification:
    • RoHS
    • REACH

    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7900B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
Product Type: PDU
Technical Information
Input Receptacles: 1 x NEMA 5-15P
Output Receptacles: 8 x NEMA 5-15R
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (VA): 1.44 kVA
Input Current: 15 A
Physical Characteristics
Mounting Orientation: Horizontal
Placement: Rack
Rack Height: 1U
Height: 1.73" (43.94 mm)
Width: 17.50" (444.50 mm)
Depth: 4.25" (107.95 mm)
Weight (Approximate): 2.27 kg
Miscellaneous
Package Contents:
  • Rack PDU, Switched, 1U, 15A, 100/120V, (8)5-15
  • Cord Retention Bracket(s)
  • Horizontal Mounting Brackets
  • Installation Guide
  • User Manual

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • REACH

Warranty
Limited Warranty: 2 Year
