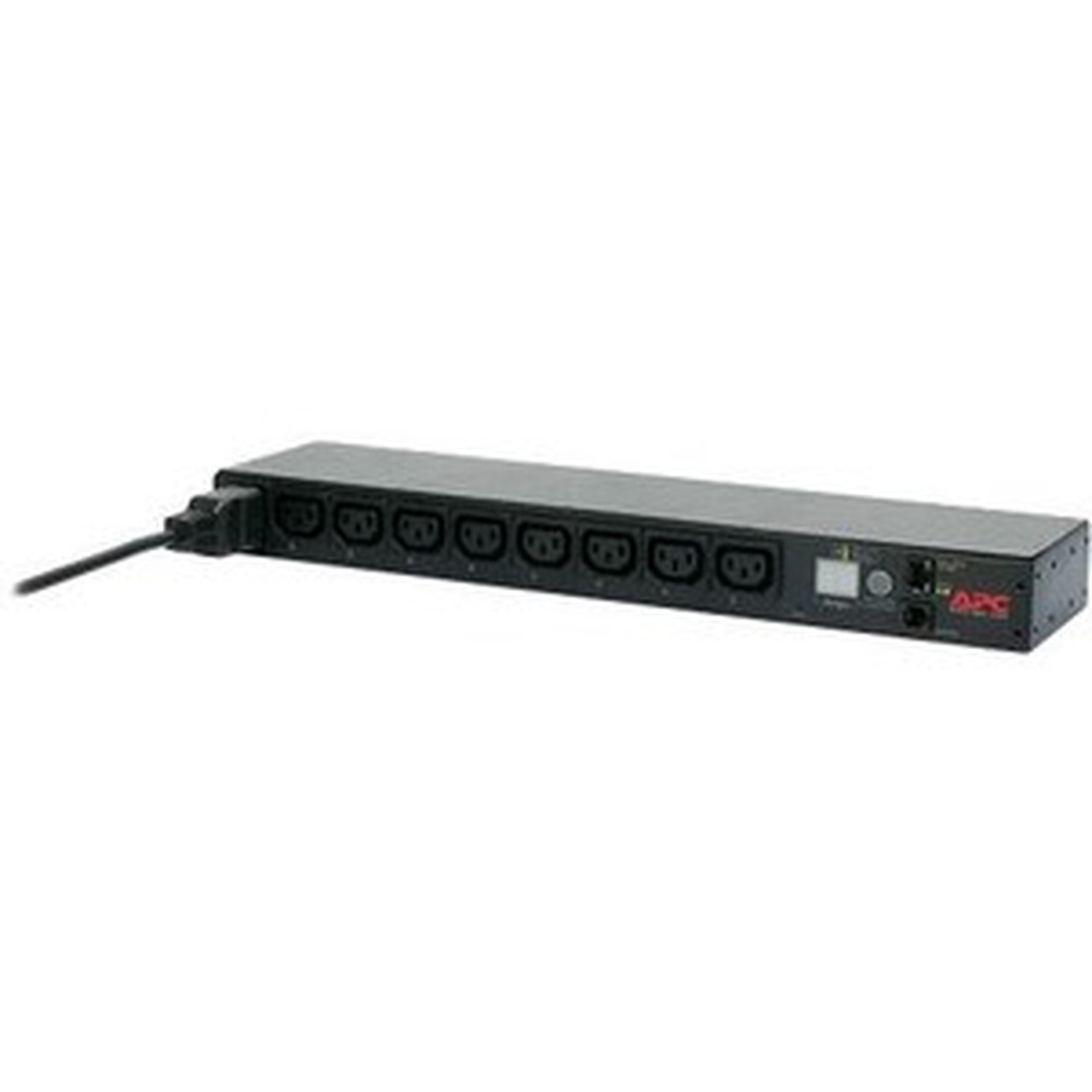

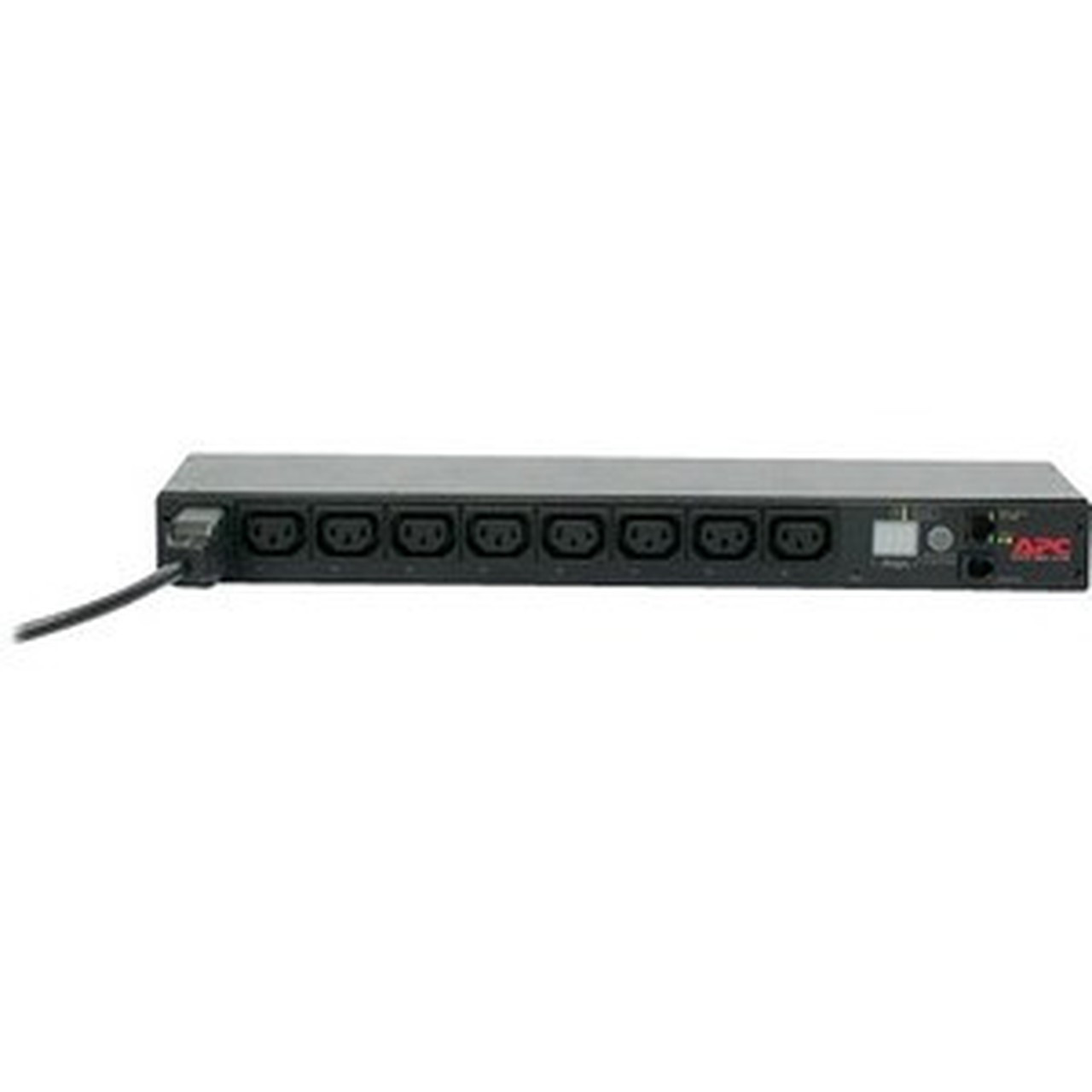

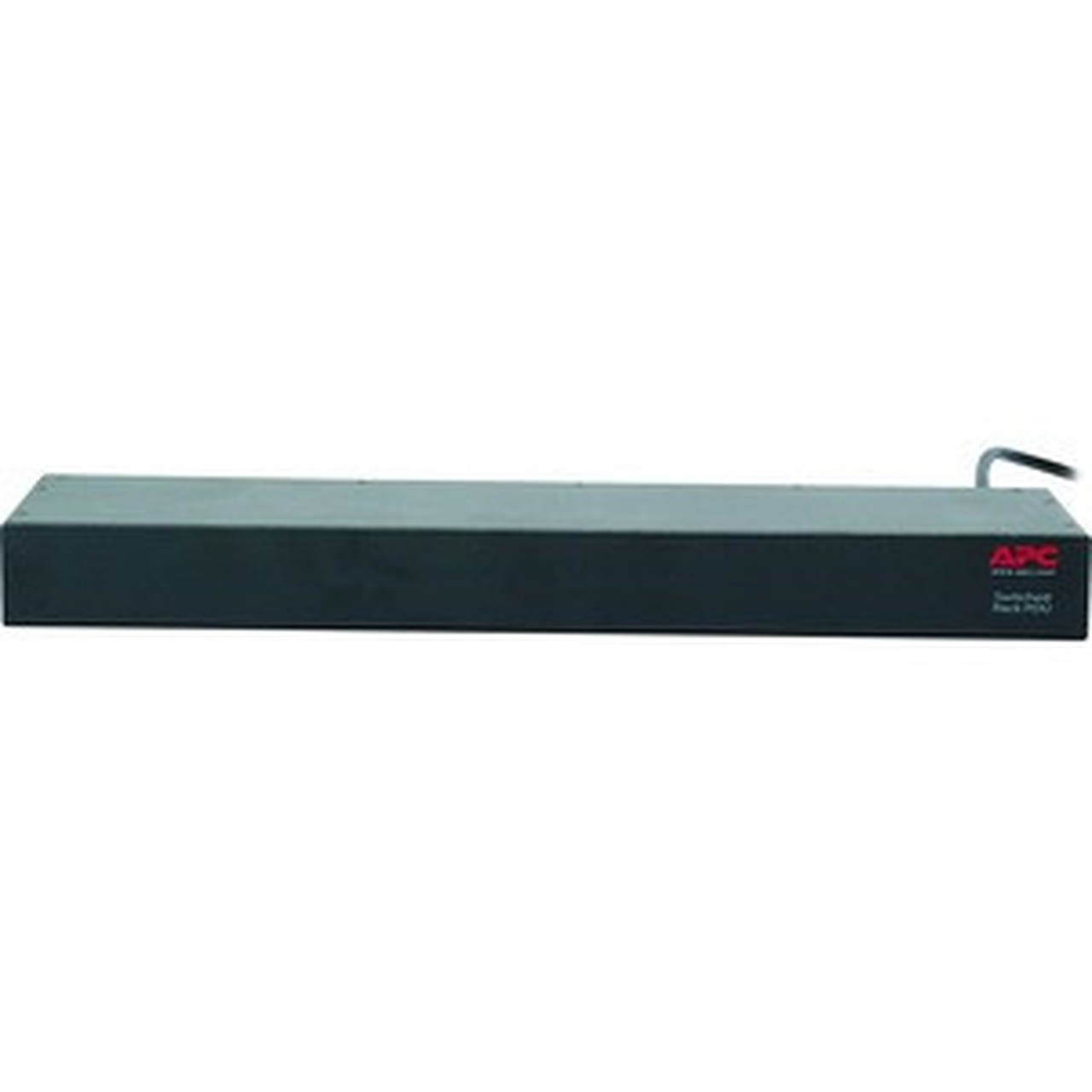

APC by Schneider Electric Rack PDU, Metered, 1U, 12A/208V, 10A/230V, (8) C13 - Metered - IEC 60320 C14 - 200 V AC - 1U - (AP7820B)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It can be monitored through Web, Telnet, SNMP, SSH, StruxureWare Data Center Expert® interfaces.
Outlets: The outlets connect the Rack PDU to equipment in your rack or enclosure. Each outletallows independent control of the connected equipment and the Rack PDU firmware also provides Outlet User accounts. The PDU has eight IEC-320-C13 outlets.
Power cord: The Rack PDU has an IEC-320-C20 inlet on the front of the unit to connect to the power cord. The power cord connects the Rack PDU to one power source. The cord connects to the front of the Rack PDU for easier mounting and user access. The 8 foot (2.4 meter) cord terminates with a C20 plug.
Digital display: The digital display shows the aggregate current being used by th
Output Voltage: 230 V ACInput Current: 20 APlacement: RackRack Height: 1UHeight: 1.73" (43.94 mm)Width: 17.50" (444.50 mm)Depth: 4.25" (107.95 mm)Weight (Approximate): 2.27 kg[custom-specifications]
