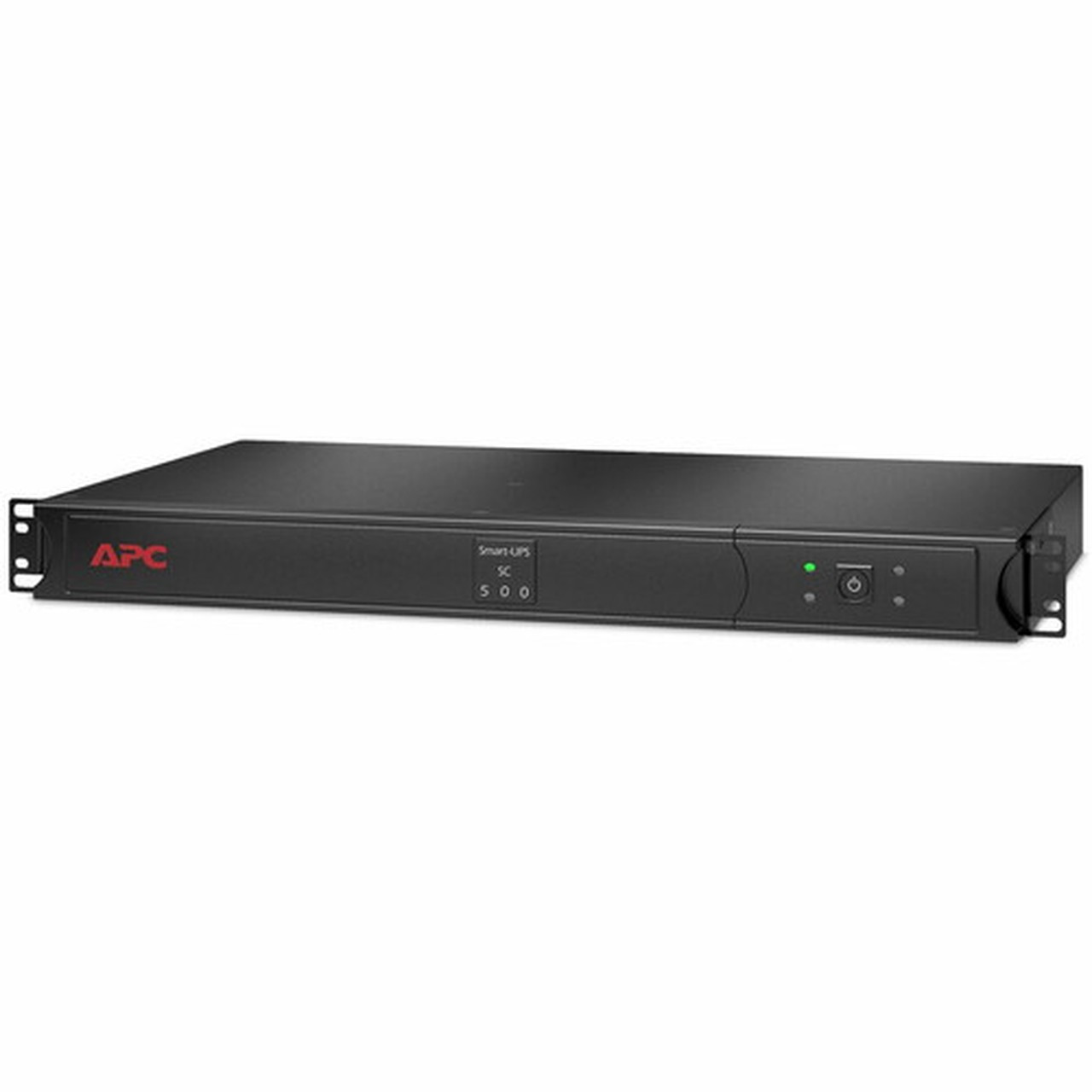

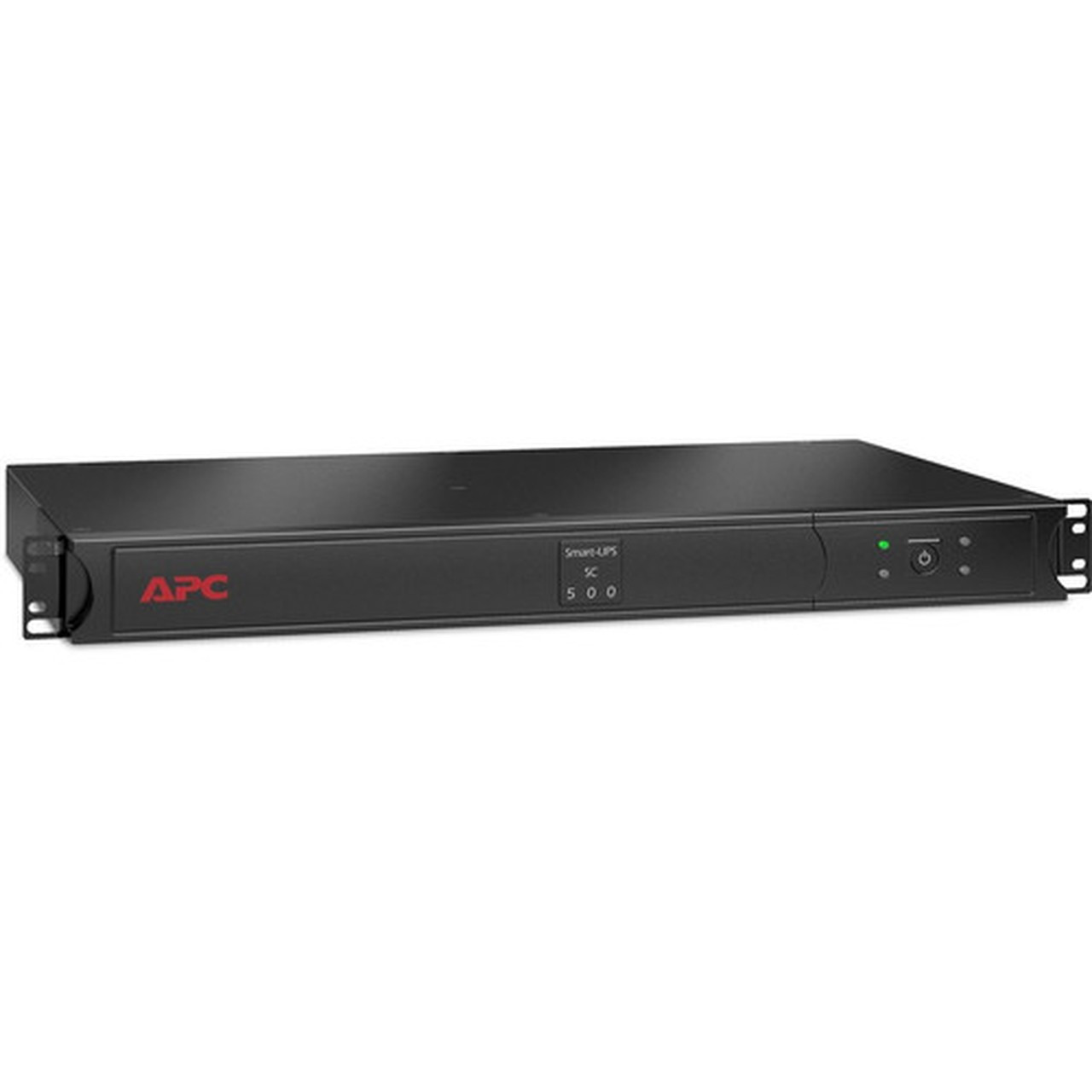

APC Smart-UPS 500VA Rack-mountable UPS - 1U, AVR, 5 Hour Recharge, 120V Output (SC500RM1U)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- On-Line
- On-Battery
- Replace Battery
- Overload Indicators
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS provides simulated sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA5-15R outlets. It offers UPS firmware upgrades and power monitoring by software. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SC UPS has a 2-year warranty on the UPS and battery.
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 4 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Cord Length: 8 ft
Application/Usage: Business,Electronic,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),Home/Office,POS,Network Device,Switch,IT
Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V
Output Voltage: 120 V AC
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 400 J
Display: LED
Status Indicators:
LED Indicators:
USB: Yes
Network (RJ-45): Yes
Battery Chemistry: Lead Acid
Typical Battery Recharge Time: 5 Hour
Replaceable Battery: Yes
Product Color: Black

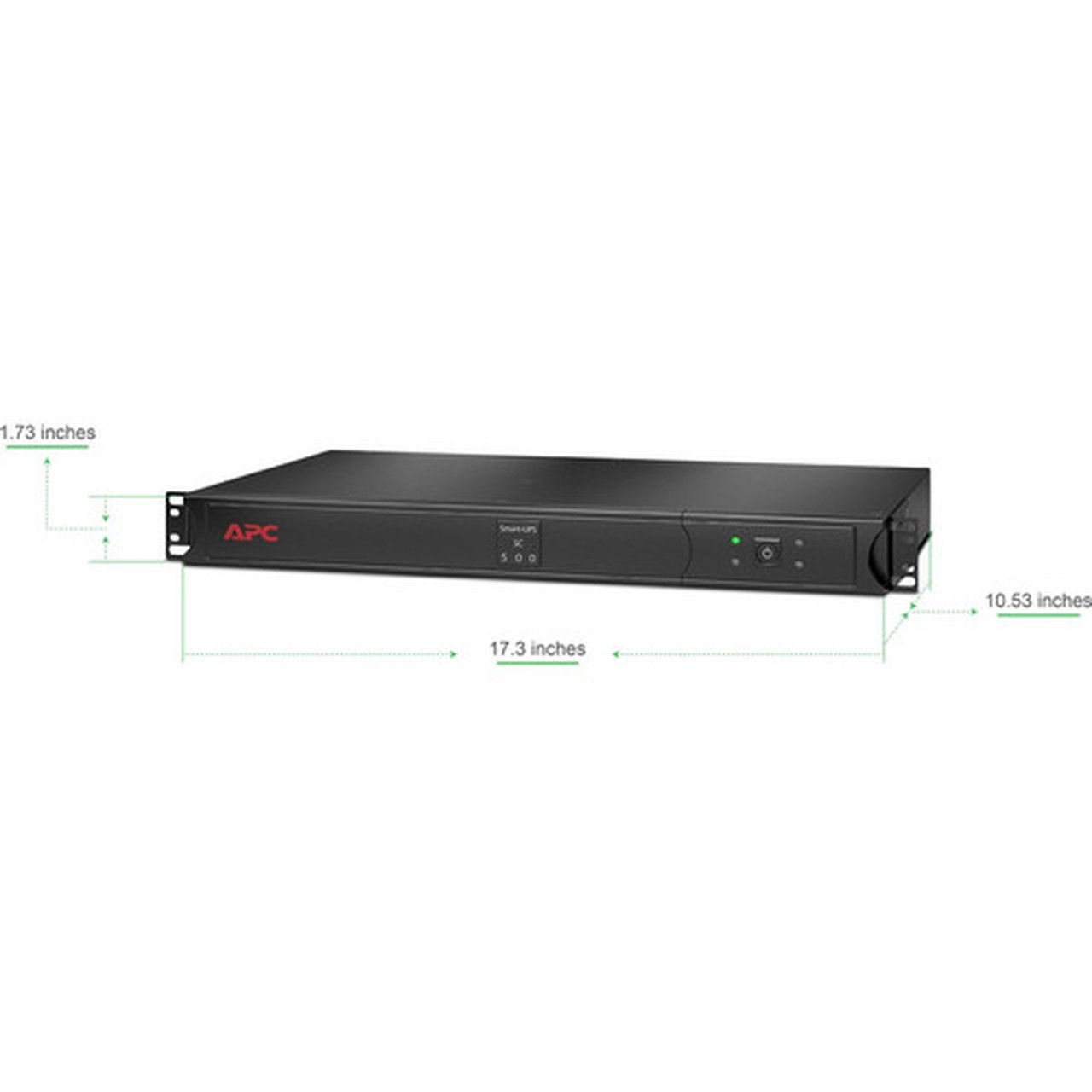

Height: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 10.55" (268 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 8.10 kg
Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: India
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Limited Warranty: 2 Year
Additional Warranty Information: 2 Years
- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
- 500 VA load capacity - work without any interruption during power outages
[custom-specifications]
Specifications | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | SC500RM1U |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS |
Product Name | Smart-UPS 500VA Rack-mountable UPS |
Product Type | Line-interactive UPS |
Technical Information | |
AVR | Yes |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15P |
Receptacle Detail | 4 x NEMA 5-15R |
Number of Battery & Surge Outlets | 4 |
Cord Length | 8 ft |
Application/Usage | Business,Electronic,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),Home/Office,POS,Network Device,Switch,IT |
Power Description | |
Load Capacity (VA) | 500 VA |
Load Capacity (Watt) | 300 W |
Input Voltage | 120 V |
Output Voltage | 120 V AC |
Waveform Type | Stepped Approximated Sine Wave |
Surge Energy Rating | 400 J |
Display & Graphics | |
Display | LED |
Controls/Indicators | |
Status Indicators | LED Indicators:
|
Interfaces/Ports | |
USB | Yes |
Network (RJ-45) | Yes |
Battery Information | |
Battery Chemistry | Lead Acid |
Typical Battery Recharge Time | 5 Hour |
Replaceable Battery | Yes |
Physical Characteristics | |
Product Color | Black |
Height | 1.73" (44 mm) |
Width | 17.32" (440 mm) |
Depth | 10.55" (268 mm) |
Rack Height | 1U |
Form Factor | Rack-mountable |
Weight (Approximate) | 8.10 kg |
Miscellaneous | |
Software Included | Powerchute Serial Edition |
Energy Star | Yes |
Country of Origin | India |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 2.0 |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 Years |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
2 Year
