- 600 W load capacity - backup power for your valuable electronics
- Up to 9.20 minute runtime on full load to preserve critical data from power shortage interruptions
- 1 kVA load capacity provides sufficient backup during power failures
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: SMC1000-2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

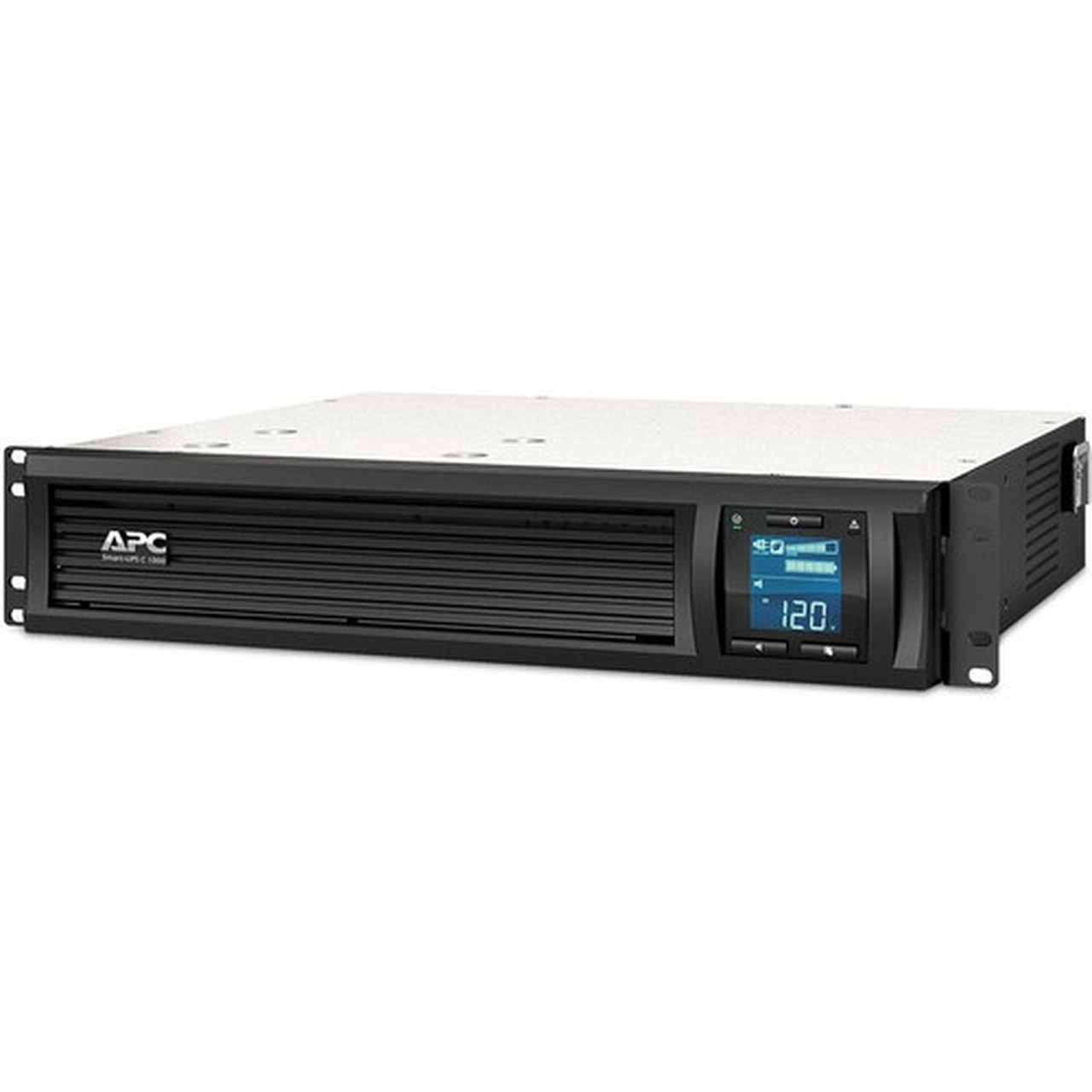

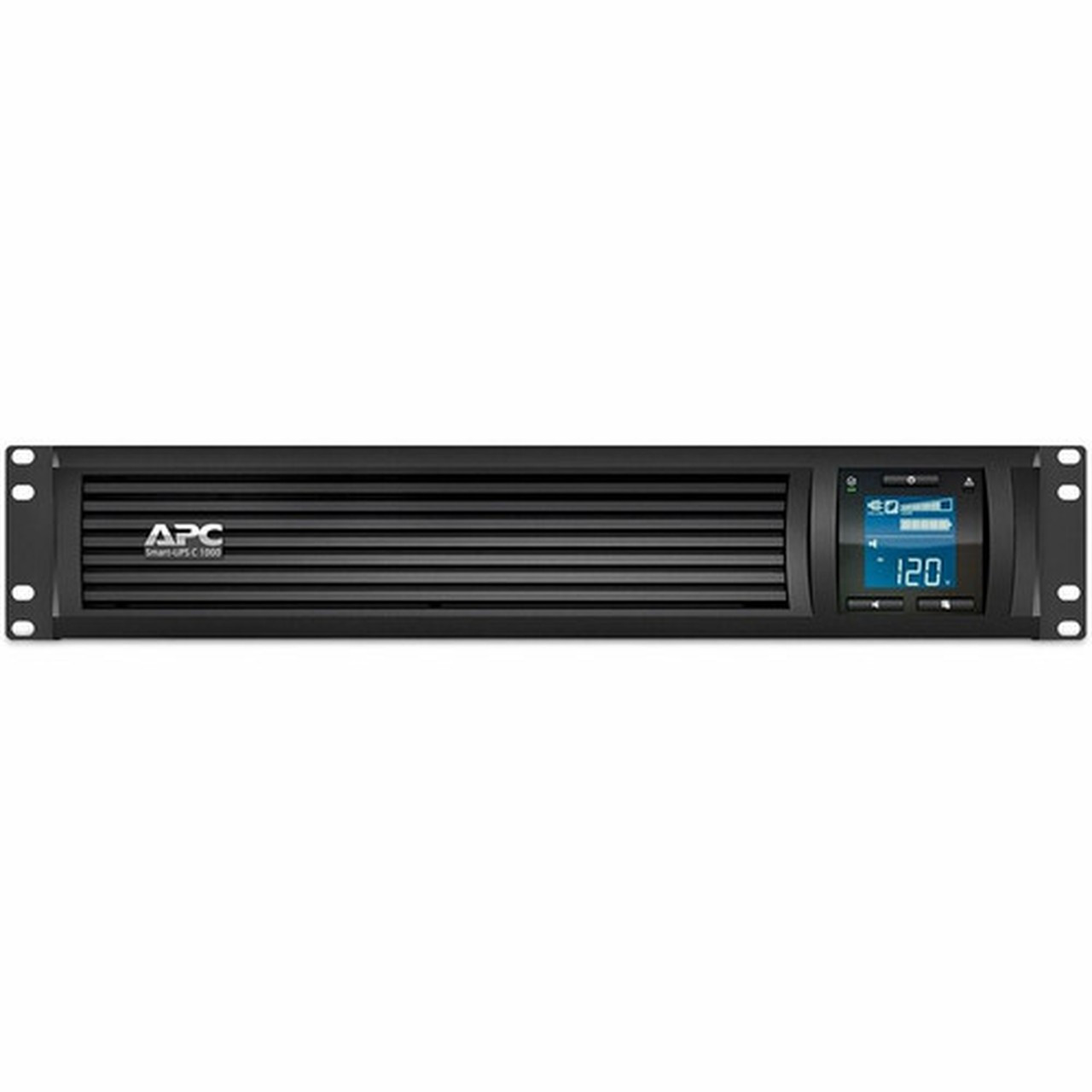

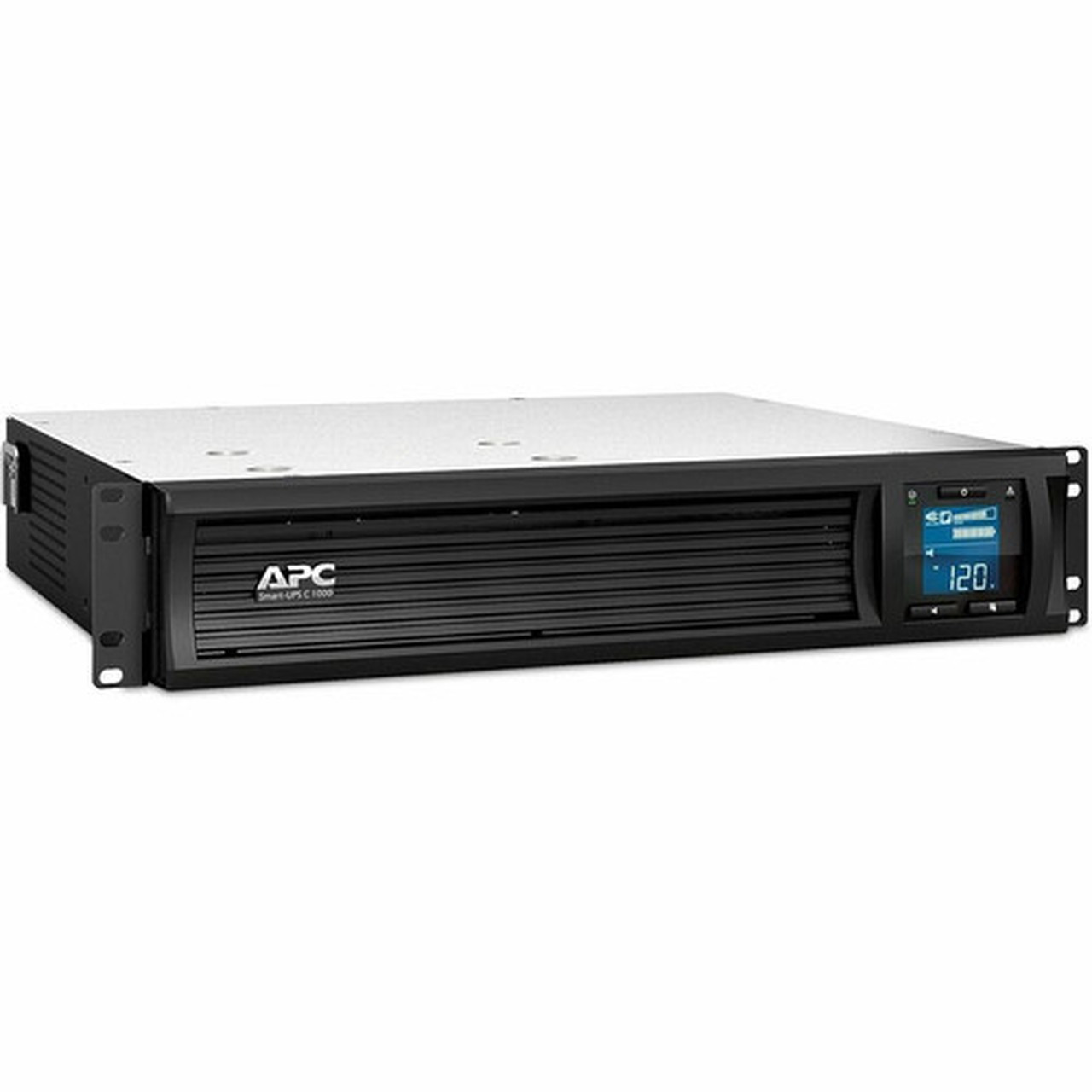

Product Name: Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect
Packaged Quantity: 1
Product Type: Line-interactive UPS
Technical InformationPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Cord Length: 8 ft
Transfer Time: 10 ms
Application/Usage:
- Server
- Router
- Switch
- Network Hub
- Network Device
- POS Terminal
Power DescriptionLoad Capacity (VA): 1 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V
Input Voltage Range: 93 V AC - 130 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 680 J
ManagementNetwork Management: SmartConnect
Interfaces/PortsNetwork (RJ-45): Yes
Battery InformationBattery Chemistry: Lead Acid
Backup/Run Time (Full Load): 9.20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Physical CharacteristicsProduct Color: Black
Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 15.98" (406 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 20.52 kg
MiscellaneousPackage Contents:
Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect Documentation CDInstallation guideRack mounting bracketsUSB cableEnergy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
