- Experience higher efficiency with lower energy cost
- 1.50 kVA load capacity provides sufficient backup during power failures
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- Keep your sensitive devices powered with a backup of up to 2.10 minute at full load

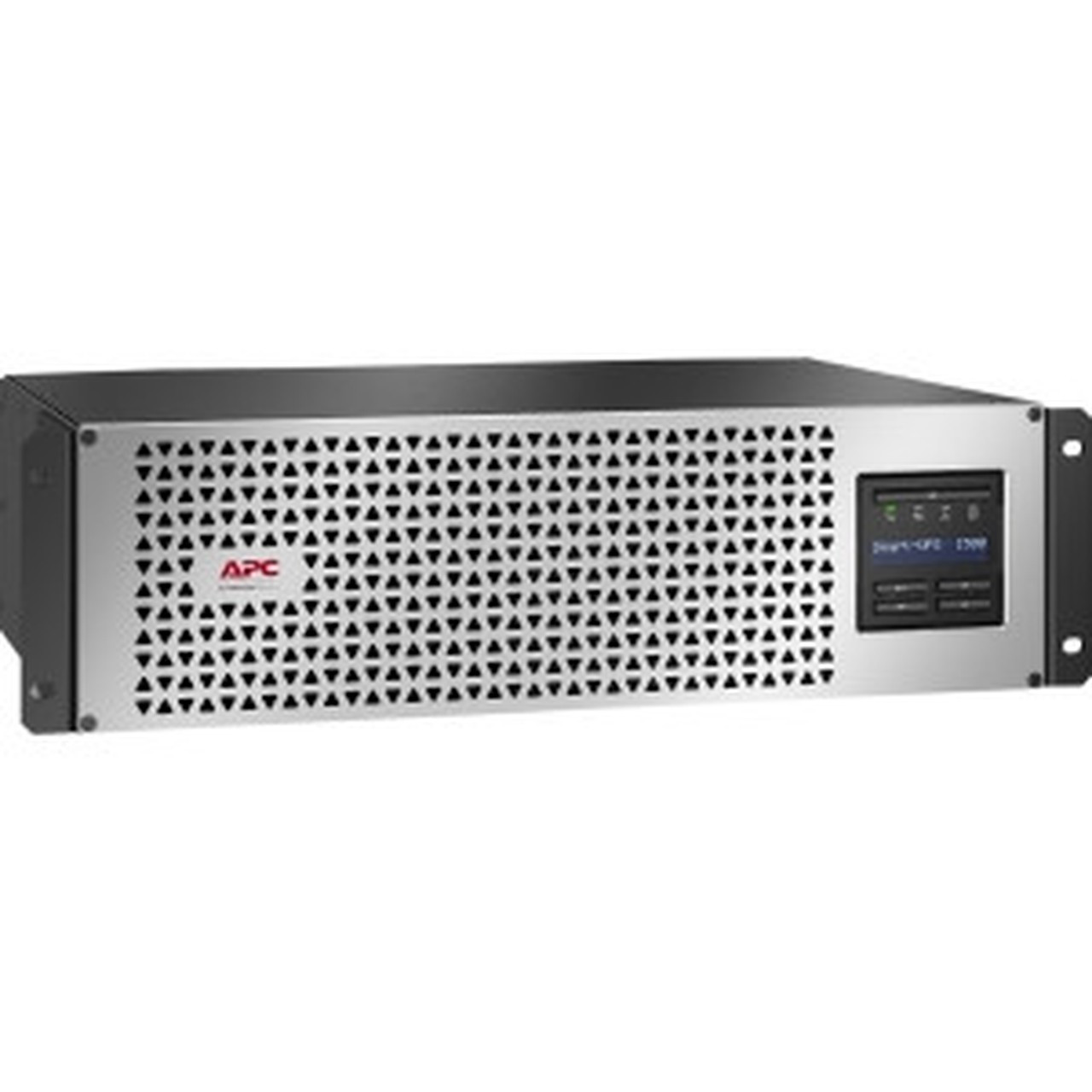

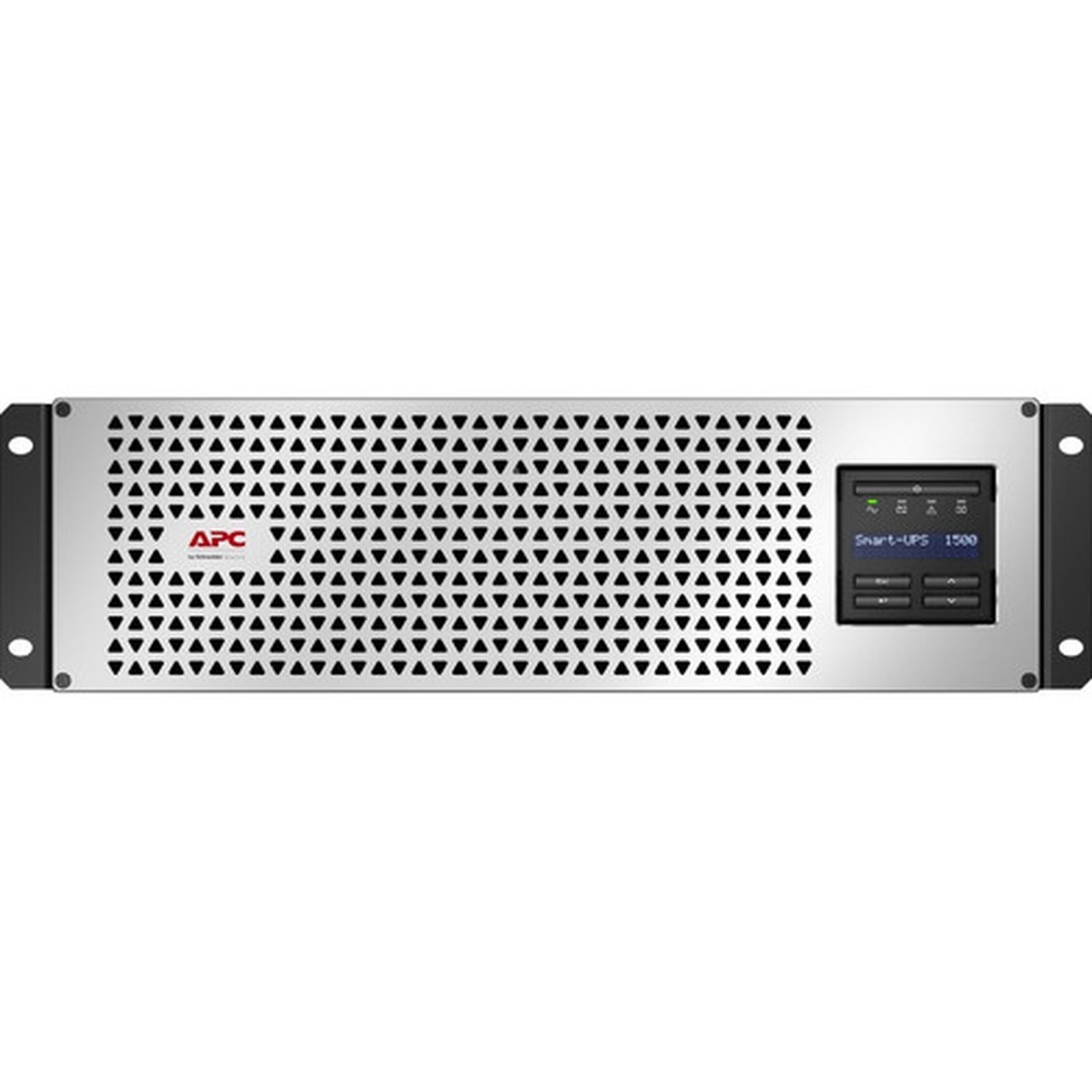

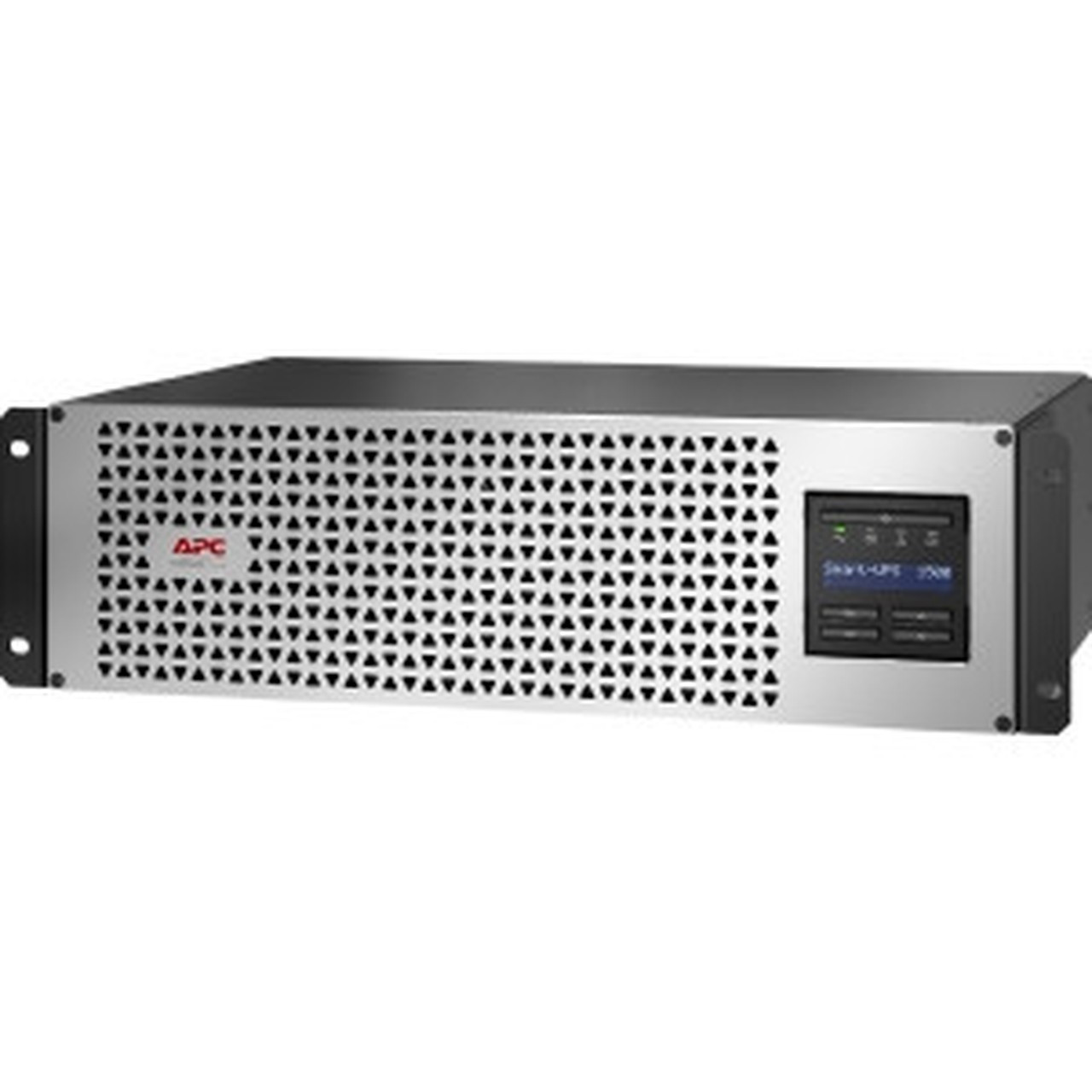

Marketing Information: APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Plug/Connector Type: NEMA 5-15PReceptacles: 6 x NEMA 5-15RSwitching Time: 6 msLoad Capacity (VA): 1.50 kVALoad Capacity (Watt): 1.35 kWInput Voltage: 120 V ACInput Voltage Range: 82 V AC - 144 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 2.10 MinuteMaximum Battery Recharge Time: 2.50 HourHeight: 5.14" (130.56 mm)Width: 17.25" (438.15 mm)Depth: 11.89" (302.01 mm)Rack Height: 3UForm Factor: Rack-mountableWeight (Approximate): 19.50 kgPackage Contents: - Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect
- CD With Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- USB Cable
Environmentally Friendly: YesEnvironmental Certification: Limited Warranty: 5 Year
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: SMTL1500RM3UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SMTL1500RM3UC
Product Name: Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect
Product Type: Line-interactive UPS
Technical InformationPlug/Connector Type: NEMA 5-15P

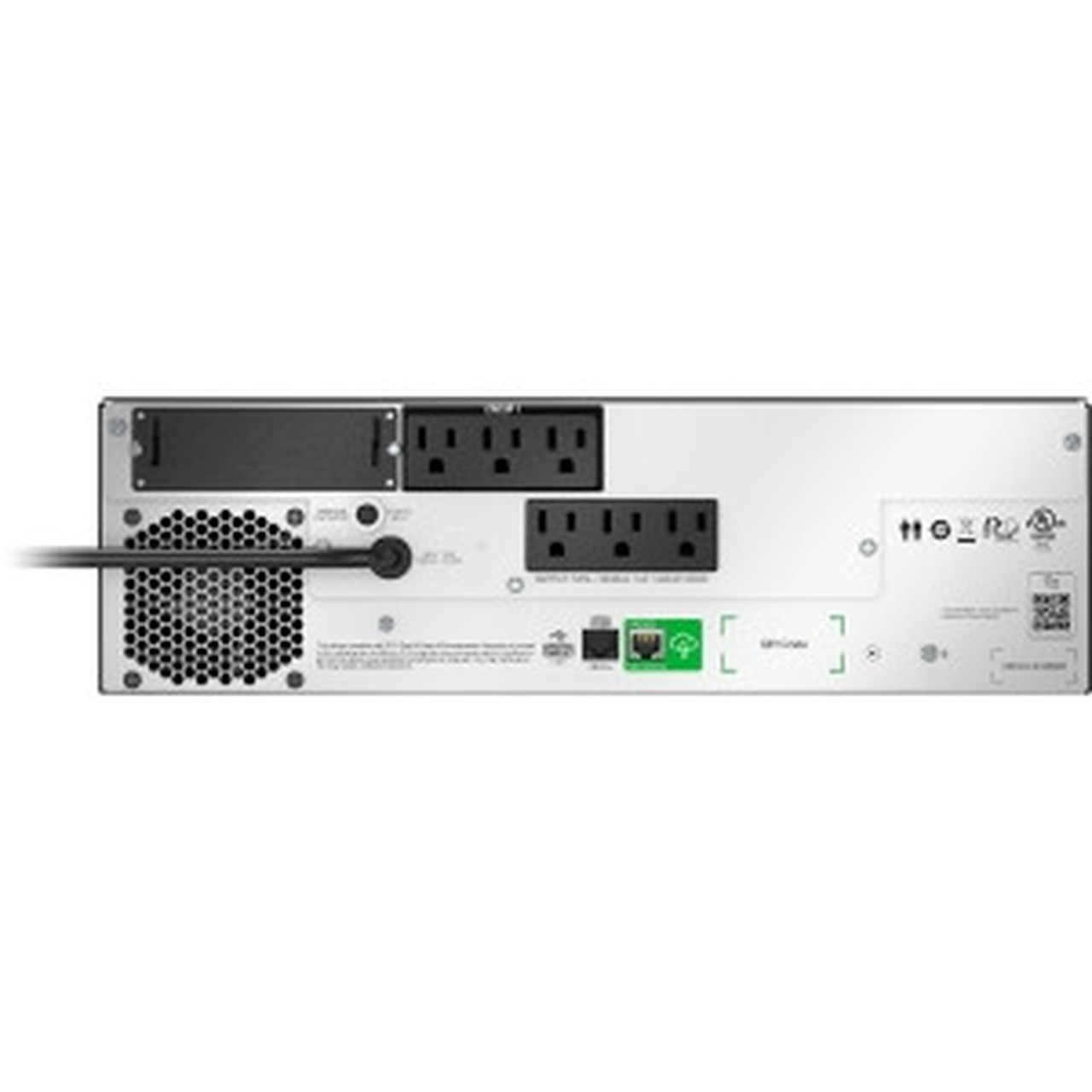

Receptacles: 6 x NEMA 5-15R
Switching Time: 6 ms
Power DescriptionLoad Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Battery InformationBackup/Run Time (Full Load): 2.10 Minute
Maximum Battery Recharge Time: 2.50 Hour
Physical CharacteristicsHeight: 5.14" (130.56 mm)
Width: 17.25" (438.15 mm)
Depth: 11.89" (302.01 mm)
Rack Height: 3U
Form Factor: Rack-mountable
Weight (Approximate): 19.50 kg
MiscellaneousPackage Contents:
- Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect
- CD With Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- USB Cable
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 5 Year
