APC by Schneider Electric Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer - Tower - 1.50 Hour Recharge - 4 Minute - V (SRT5KXLT-5KTF)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer
- CD with software
- Documentation CD
- Installation guide
- Integrated network management
- Removable support feet
- Temperature probe
Marketing Information: This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-30P

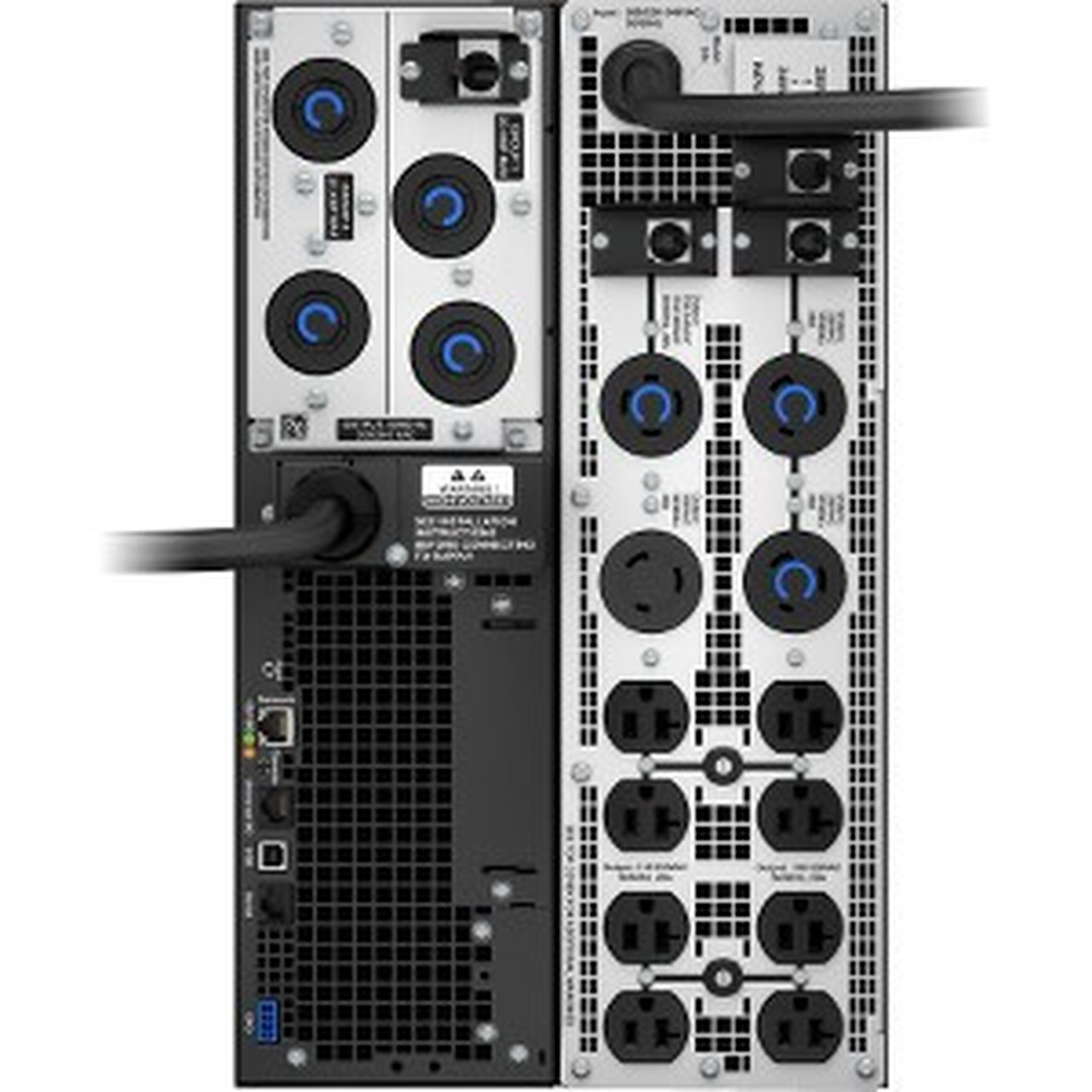

Receptacle Detail: 1 x NEMA L14-30R,2 x NEMA L6-30R,4 x NEMA L6-20R,8 x NEMA 5-20R
Number of Battery & Surge Outlets: 15
Cord Length: 10 ft
Load Capacity (VA): 5 kVA
Load Capacity (Watt): 4.25 kW
Input Voltage: 208 V
Output Voltage: 120 V AC,208 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 480 J
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 1.50 Hour
Product Color: Black
Height: 17.01" (432 mm)
Width: 10.20" (259 mm)
Depth: 28.31" (719 mm)
Form Factor: Rack-mountable
Weight (Approximate): 112.49 kg
Package Contents:
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
- 4.25 kW load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 4 minute at full load
- 5 kVA load capacity - work without any interruption during power outages
[custom-specifications]
Specifications | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | SRT5KXLT-5KTF |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS On-Line |
Product Name | Smart-UPS SRT 5000VA with 208/240V to 120V Step-Down Transformer |
Product Type | Double Conversion Online UPS |
Technical Information | |
Plug/Connector Type | NEMA L6-30P |
Receptacle Type | NEMA L6-30P |
Receptacle Detail | 1 x NEMA L14-30R,2 x NEMA L6-30R,4 x NEMA L6-20R,8 x NEMA 5-20R |
Number of Battery & Surge Outlets | 15 |
Cord Length | 10 ft |
Power Description | |
Load Capacity (VA) | 5 kVA |
Load Capacity (Watt) | 4.25 kW |
Input Voltage | 208 V |
Output Voltage | 120 V AC,208 V AC |
Waveform Type | Sine Wave |
Surge Energy Rating | 480 J |
Battery Information | |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 4 Minute |
Typical Battery Recharge Time | 1.50 Hour |
Physical Characteristics | |
Product Color | Black |
Height | 17.01" (432 mm) |
Width | 10.20" (259 mm) |
Depth | 28.31" (719 mm) |
Form Factor | Rack-mountable |
Weight (Approximate) | 112.49 kg |
Miscellaneous | |
Package Contents | |
Energy Star | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
[/custom-specifications]
