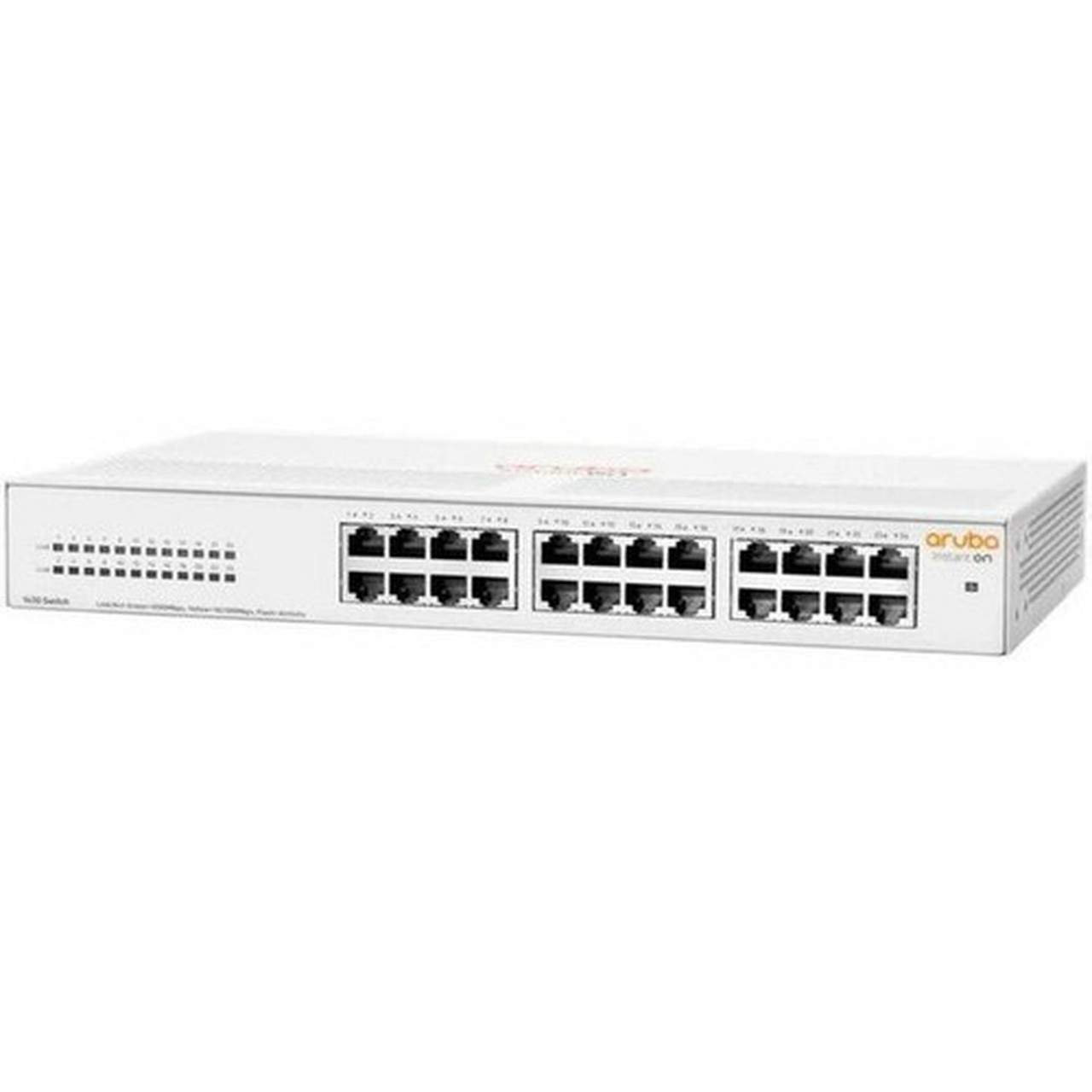

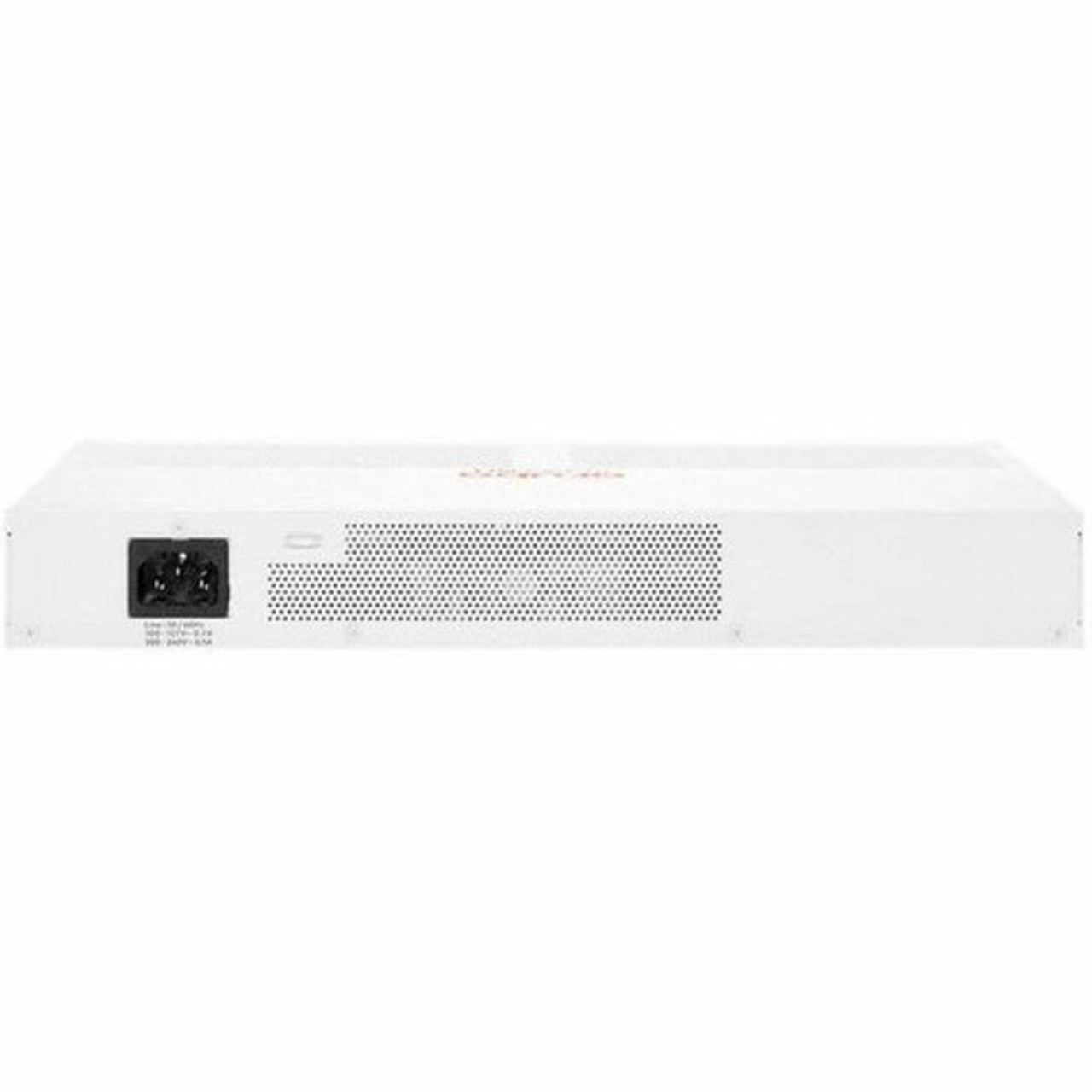

Aruba Instant On 1430 24G Switch - 24 Ports - Gigabit Ethernet - 100Base-TX, 10/100/1000Base-T - 2 Layer Supported - 11.70 W Power - - (R8R49A#ABA)

(No reviews) Write a Review
$275.72
$267.00
$166.84
(You save $108.88 )
SKU: R8R49A#ABA
UPC: 190017602417
Weight: 6.00 LBS
Adding to cart… The item has been added
  • Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
  • Up to 124W of PoE to power APs, IP Phones, and other IoT devices
  • No configuration or management needed
  • Plug-and-play with fully automated functions and zero ongoing maintenance
  • Quality of Service (QoS) and flow control for improved network efficiency
  • Fan-less with Energy Efficient Ethernet for low power consumption
  • Class B certified for home office networks (5 and 8 port models)
    Marketing Information: Aruba Instant On 1430 Switch Series
    Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.
    The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

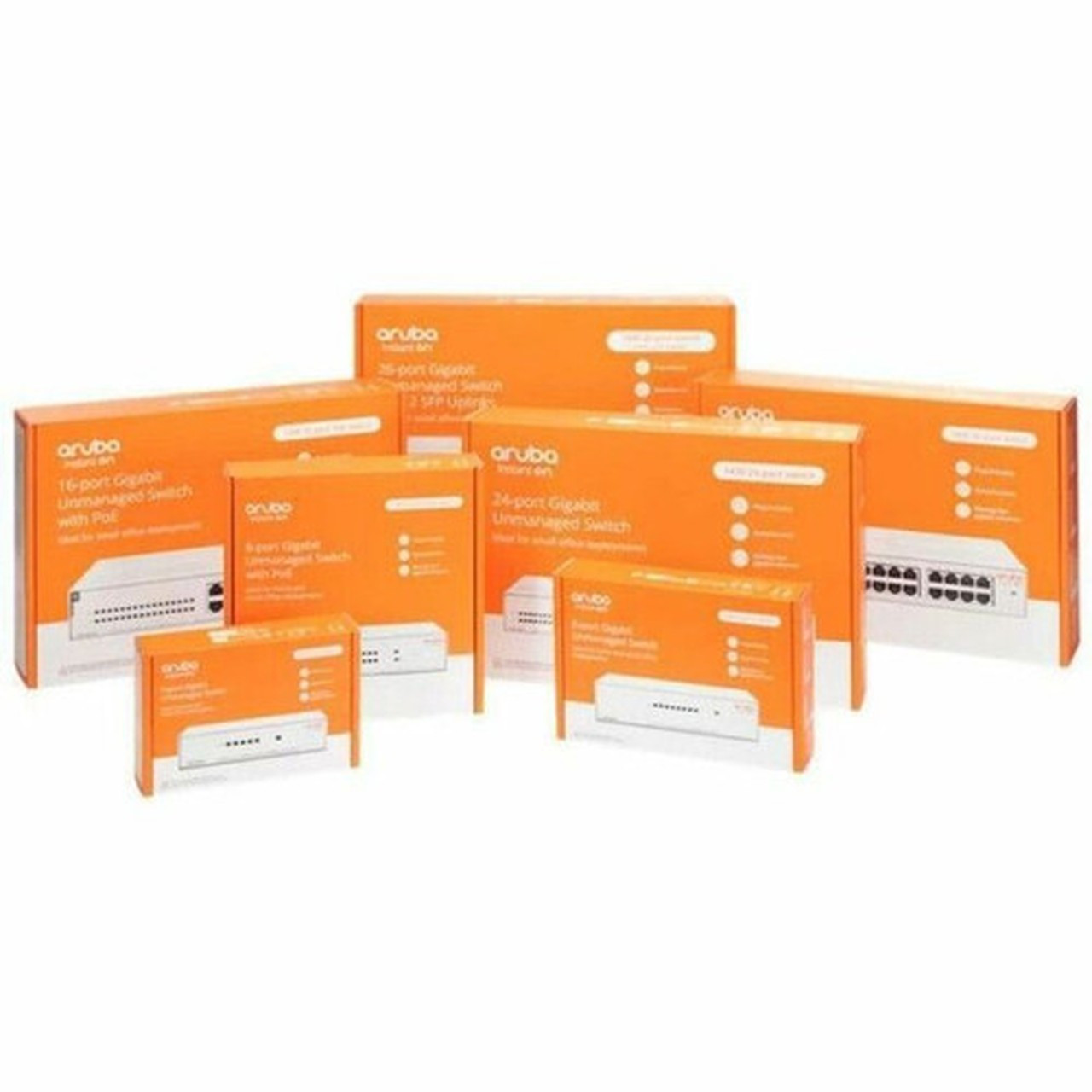

    The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).
    Features: Fanless
    Total Number of Network Ports: 24
    Network (RJ-45): Yes
    Uplink Port: Yes
    Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
    Media Type Supported:
    • Twisted Pair
    • Optical Fiber

    Ethernet Technology: Gigabit Ethernet
    Network Technology:
    • 100Base-TX
    • 10/100/1000Base-T

    Layer Supported: 2
    Networking Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.1x
    • IEEE 802.1p
    • IEEE 802.3i
    • IEEE 802.3z
    • IEEE 802.3at
    • IEEE 802.3az
    • IEEE 802.3x

    Manageable: No
    Input Voltage:
    • 120 V AC
    • 230 V AC

    Power Source: Power Supply
    Power Consumption: 11.70 W
    Form Factor:
    • Table Top
    • Under Table
    • Wall Mountable
    • Rack-mountable

    Height: 1.73" (44 mm)
    Width: 13.39" (340 mm)
    Depth: 8.86" (225 mm)
    Weight (Approximate): 1.91 kg
    Package Contents:

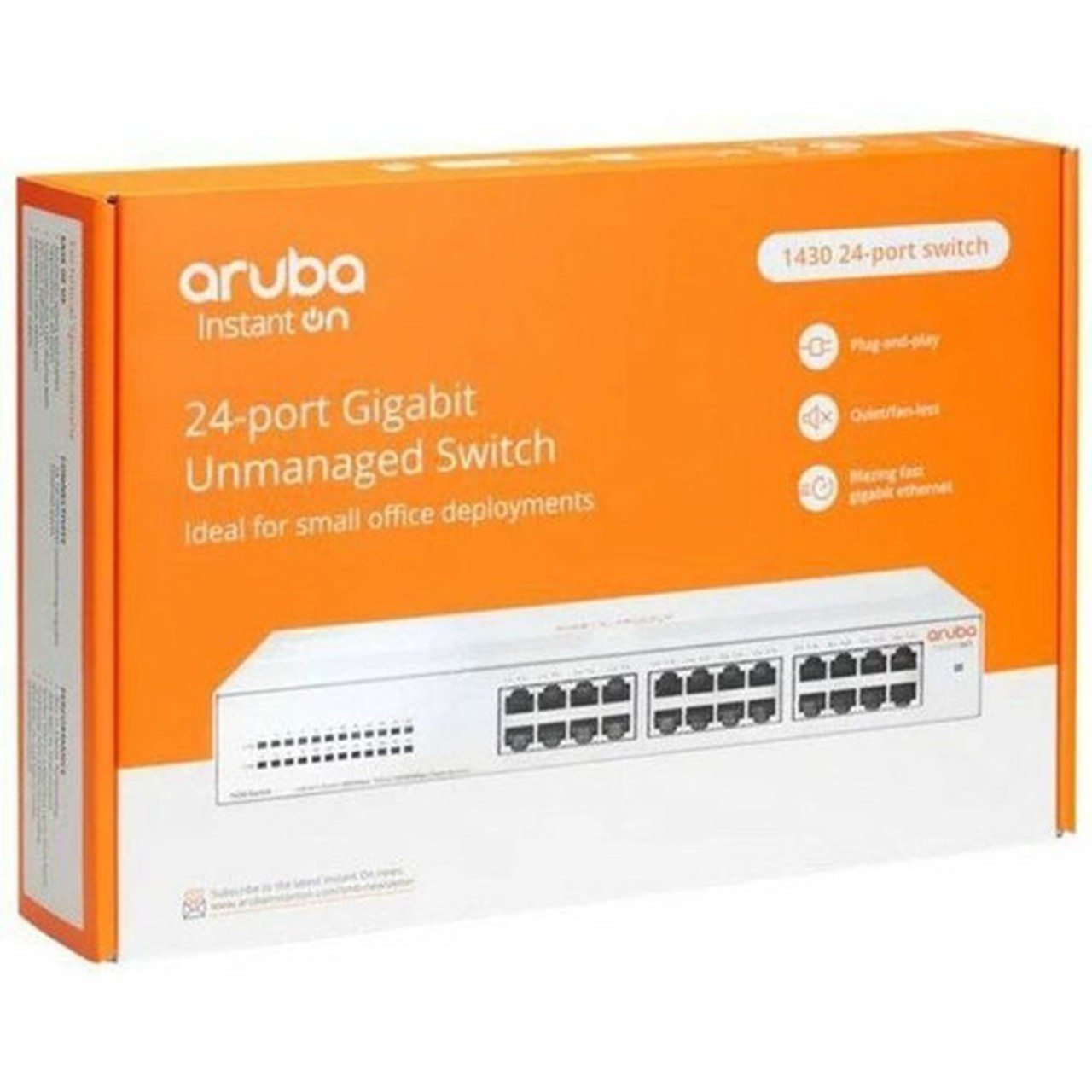

    • Instant On 1430 24G Switch
    • 2-post Rack Kit
    • Brackets

    Environmentally Friendly: Yes
    Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Limited Warranty: Lifetime

[custom-specifications]

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: R8R49AABA
Manufacturer Website Address: http://www.hpe.com
Brand Name: Aruba
Product Line: Instant On
Product Series: 1430
Product Name: Instant On 1430 24G Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:
  • 100Base-TX
  • 10/100/1000Base-T

Network & Communication
Layer Supported: 2
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.1x
  • IEEE 802.1p
  • IEEE 802.3i
  • IEEE 802.3z
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC

Power Source: Power Supply
Power Consumption: 11.70 W
Physical Characteristics
Form Factor:
  • Table Top
  • Under Table
  • Wall Mountable
  • Rack-mountable

Height: 1.73" (44 mm)
Width: 13.39" (340 mm)
Depth: 8.86" (225 mm)
Weight (Approximate): 1.91 kg
Miscellaneous
Package Contents:
  • Instant On 1430 24G Switch
  • 2-post Rack Kit
  • Brackets

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
