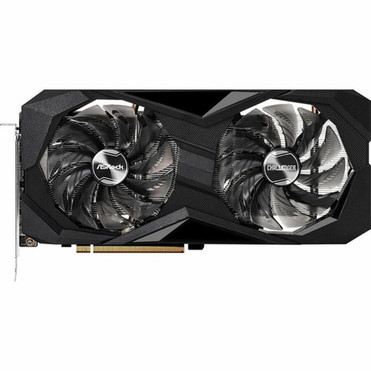

ASRock AMD Radeon RX 6600 Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 1.63 GHz Core - 2.04 GHz Game Clock - 2.49 GHz Boost Clock - 128 - (RX6600 CLD 8G)

Marketing Information:

• Clock: GPU / Memory
• Boost Clock: Up to 2491 MHz / 14 Gbps
• Game Clock: Up to 2044 MHz / 14 Gbps
• Base Clock: 1626 MHz / 14 Gbps
• Key Specification
• 7nm AMD Radeon RX 6600
• 8GB GDDR6
• AMD RDNA 2 Architecture
• DirectX 12 Ultimate
• PCI Express 4.0 Support
• 1 x 8-pin Power Connector
• 3 x DisplayPort 1.4 with DSC / 1 x HDMI 2.1 VRR
• Key Features
• Dual Fan Design
• Striped Axial Fan
• Ultra-fit Heatpipe
• Stylish Metal Backplate
• 0dB Silent Cooling
• Super Alloy Graphics Card

Dual Fan Design

Two fans that provide strong cooling performance and make your gaming rig stay cool. It's optimized for delivering excellent gaming experience with stylish and streamlined design.

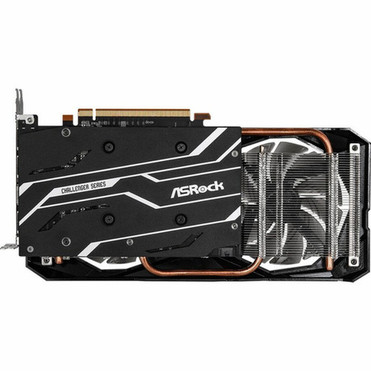

Stylish Metal Backplate Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan Designed For Enhanced Airflow.

ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Copper Base Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

Nano Thermal Paste Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

API Supported: DirectX 12 Ultimate,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

Chipset Manufacturer: AMD

Chipset Line: Radeon

Chipset Series: RX 6000

Chipset Model: RX 6600

GPU Clock: 1.63 GHz

GPU Boost Clock: 2.49 GHz

Game Clock: 2.04 GHz

Standard Memory: 8 GB

Memory Technology: GDDR6

Bus Width: 128 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 1

Power Supply Wattage: 500 W

Power Connector: 1x 8-pin

Slot Space Required: Dual

Form Factor: Plug-in Card

Cooler Type: Active Cooler

Height: 1.61" (41 mm)

Width: 5.20" (132 mm)

Length: 10.59" (269 mm)

Weight (Approximate): 1.38 lb (627 g)

Platform Supported: PC
