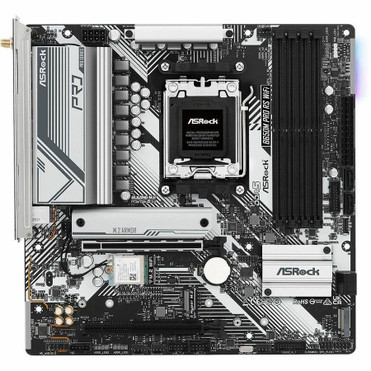

ASRock B650M PRO RS WiFi Micro ATX Gaming Motherboard Socket AMD Chipset Integrated B650M PRO RS WIFI B650M PRO RS WIFI B650M PRO RS WIFI

Marketing Information:

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming - with style and speed!

Extreme Overclocking Performance | DDR5 EXPO & XMP Support

Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel^®XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

AMD PBO Technology

PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC's performance by raising clock speeds based on the conditions inside your PC, AMD's processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the "go faster" decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

Intelligent Cooling Design | Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Fan-Tastic Tuning

ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Optimized VRM Design | Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Optimized VRM Design | 6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Chipset Manufacturer: AMD

Chipset Model: B650

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 7,Ryzen 5

Multi GPU Supported: CrossFire

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 192 GB

Memory Speed Supported: 7200 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10

Onboard Video: CPU Dependent Video

Graphics Controller Model: RDNA graphics

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.2

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of PCI Express Slots: 2

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 4.0,PCI Express 3.0

Total Number of USB Ports: 8

Number of USB 2.0 Ports: 4

Number of USB 3.2 Gen 1 Type-A Ports: 2

Number of USB 3.2 Gen 2 Type-A Ports: 1

Number of USB 3.2 Gen 2 Type-C Ports: 1

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of Thunderbolt 4 Ports: 1

Number of M.2 Interfaces: 3

Total Number of Onboard USB Ports: 9

Number of Onboard USB 2.0 Ports: 4

Form Factor: Micro ATX

Width: 9.61" (244 mm)

Depth: 9.61" (244 mm)

Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
