Asus ExpertCenter Pro ET700I W7-B-1300 Barebone System - Socket LGA-4677 - 1 x Processor Support - Intel W790 Chip - 1 TB DDR5 SDRAM - (PRO ET700I W7-B-1300)

Marketing Information:

ASUS ExpertCenter Pro ET700I W7 Workstation

ASUS ExpertCenter Pro ET700I W7 is a high-end workstation that delivers professional performance and flexible expandability ideal for a range of applications from design to virtualization. Equipped with powerful Intel Xeon W-3400 and W-2400 processors and ECC memory, plus support for an NVIDIA Quadro graphics card and independent software vendor (ISV) certification, ExpertCenter Pro ET700I W7 delivers the performance, reliability and guaranteed compatibility you can trust for your professional workflows.

Professional performance

Designed for creative professionals who require outstanding performance, reliability and enhanced security, ExpertCenter Pro ET700I W7 is powered by the Intel Xeon^®W-3400 & W-2400 processors to handle the additional cores and increased bandwidth. It also supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.

PCIe 5.0

Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.

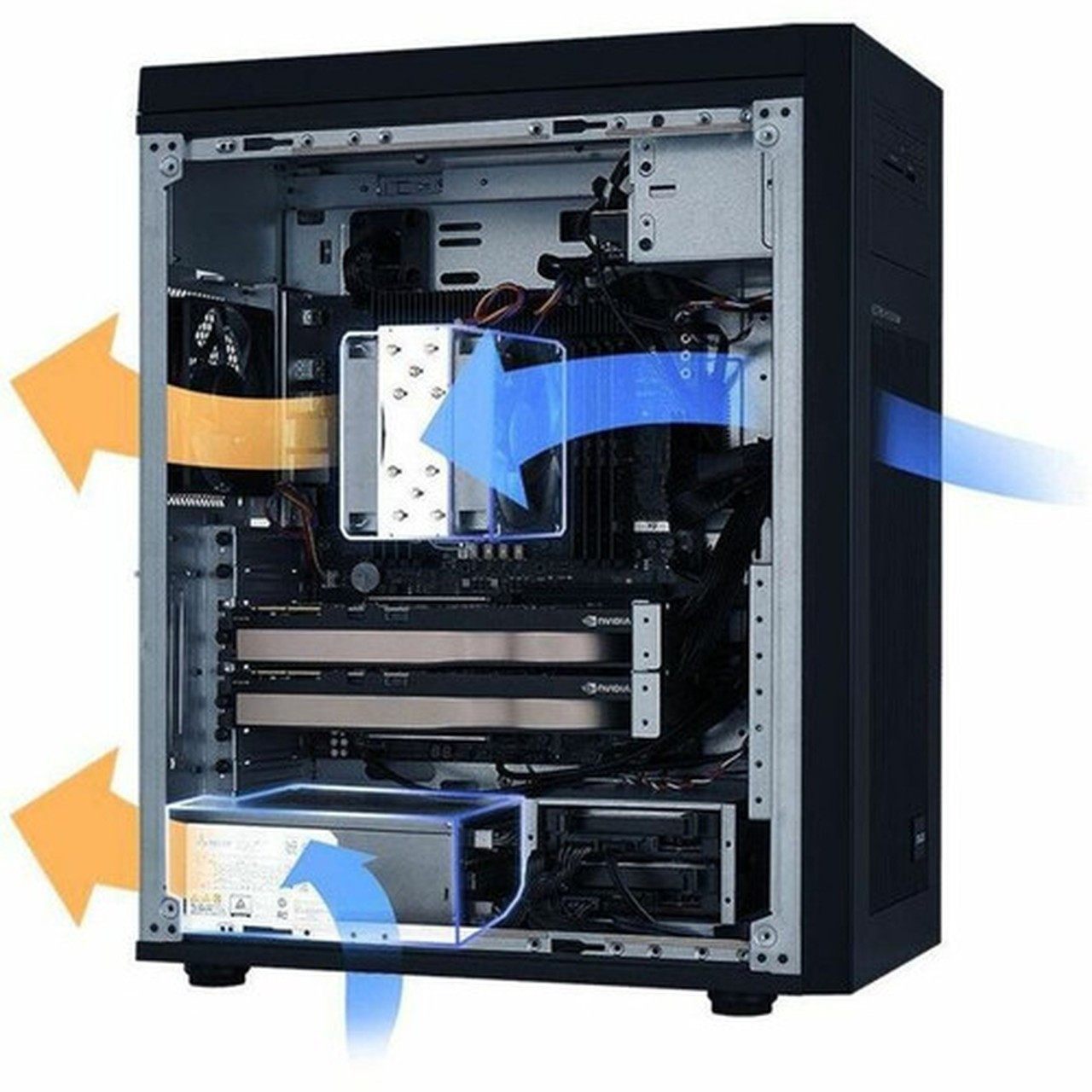

To ensure stable performance, ExpertCenter Pro ET700I W7 employs an innovative multi-channel cooling system.

The airflow flows in through front panel and bottom of the case which can bring cool air to drop system temperature, plus, ExpertCenter Pro ET700I W7 also equips an air duct (Note) in VRM area to direct cool air through CPU and DRAM, making sure the temperature of these two major components are optimized to perform well as you wish.

AI-powered: Yes

Number of Processors Supported: 1

Processor Socket: Socket LGA-4677

Processor Supported: Xeon

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: W790

Maximum Memory Supported: 1 TB

Memory Technology: DDR5 SDRAM

Total Number of Memory Slots: 8

Controller Type: Serial ATA/600,NVMe

RAID Supported: Yes

RAID Levels: 0, 1, 5, 10

Ethernet Technology: 2.5 Gigabit Ethernet

Number of Total Expansion Bays: 6

Number of External 5.25" Bays: 1

Number of 3.5" Bays: 3

Total Number of Expansion Slots: 5

Number of PCI Express x4 Slots: 1

Number of PCI Express x16 Slots: 4

Number of M.2 Interfaces: 2

Total Number of USB Ports: 13

USB Type-C (Front): Yes

USB Type-C (Rear): Yes

USB Type-C Detail: Front: 1 x USB 20 Gbps Type-C port, Rear: 1 x USB 10 Gbps Type-C port

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 2

Number of SATA Interfaces: 4

Number of SAS Interfaces: 2

Operating System Supported: Windows 11 Pro

Input Voltage: 120 V AC,230 V AC

Number of Power Supplies Installed: 1

Maximum Power Supply Wattage: 1.30 kW

Color Family: Black

Product Color: Black

Height: 21.06" (535 mm)

Width: 9.06" (230 mm)

Depth: 17.64" (448 mm)

Weight (Approximate): 31.48 lb (14280 g)

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Certification: Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
