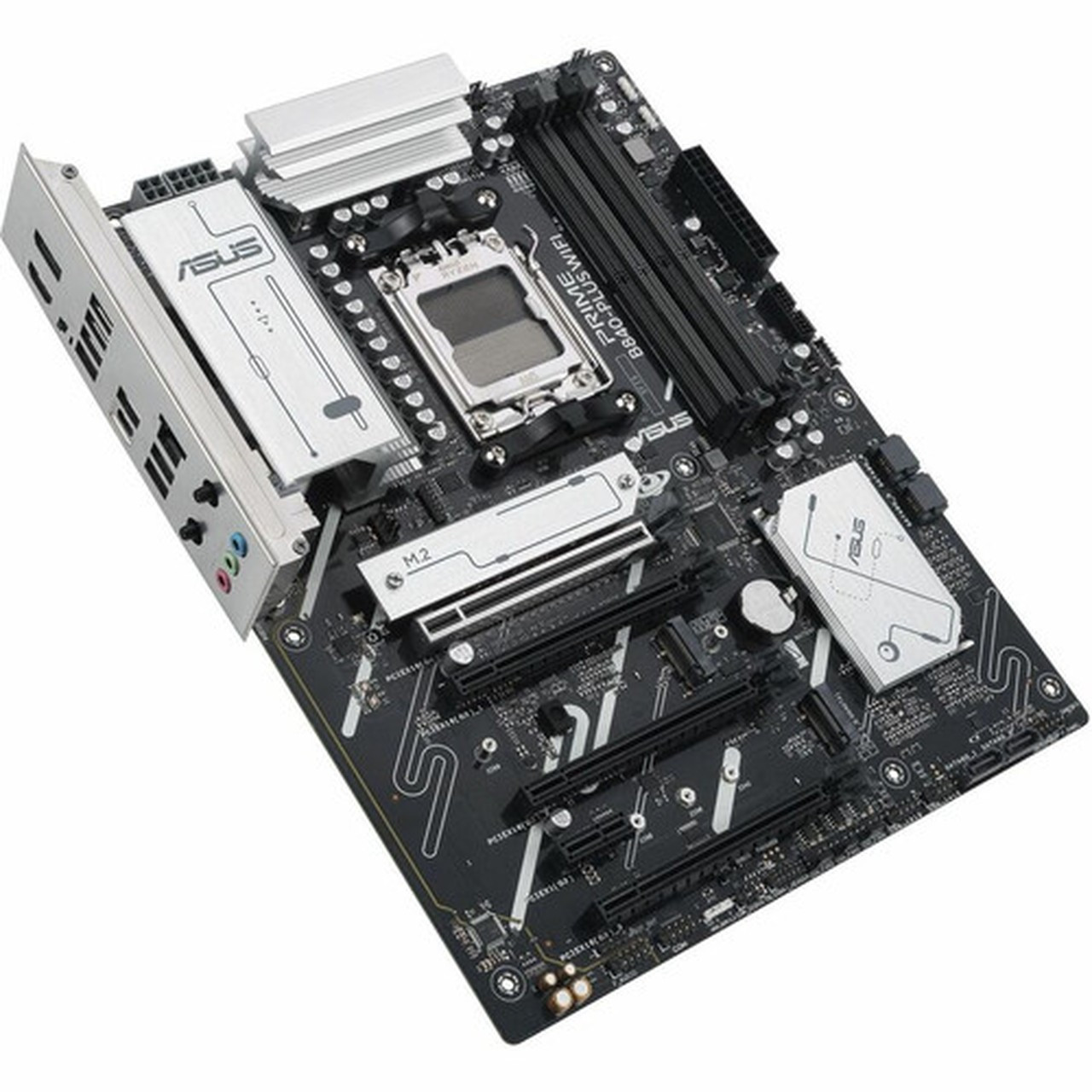

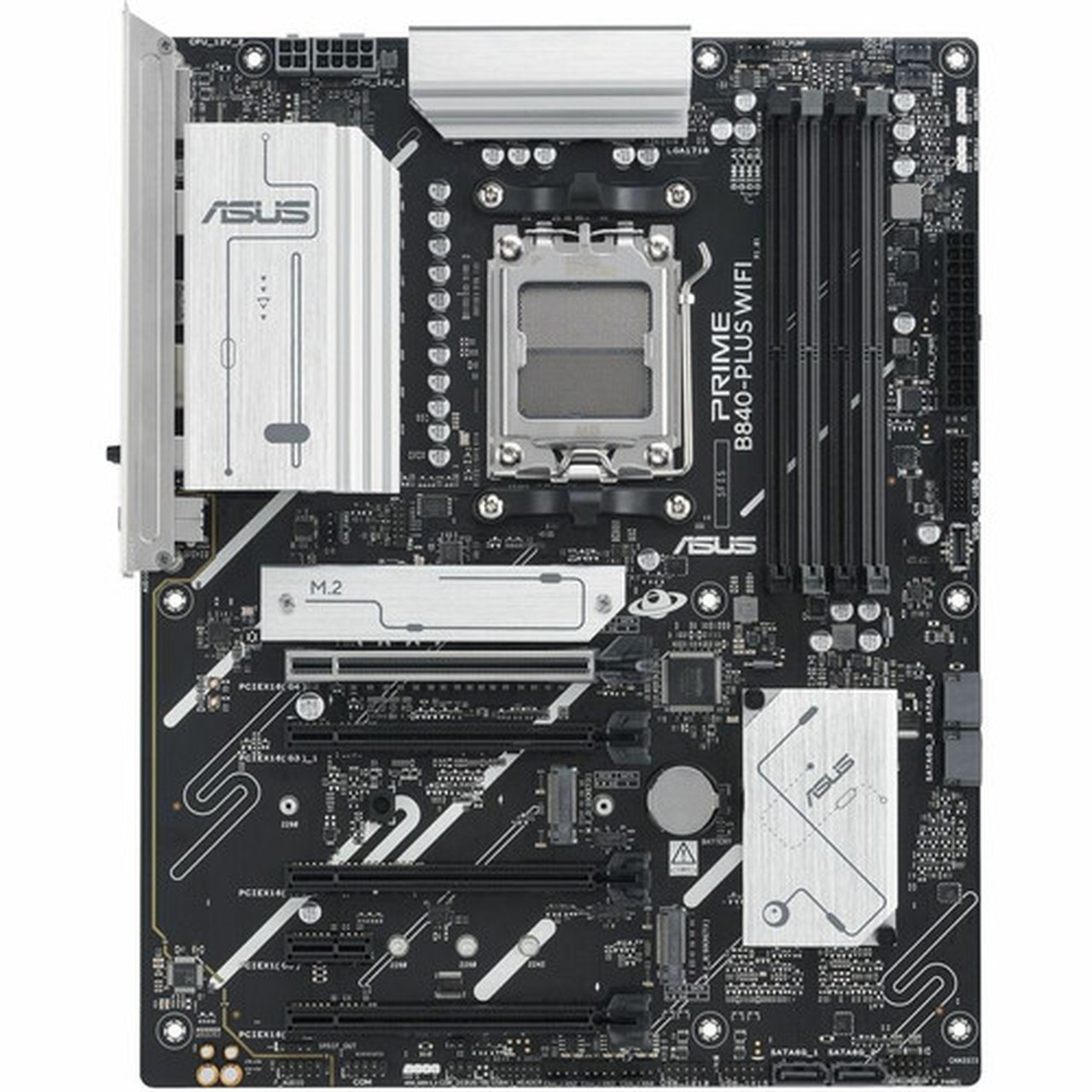

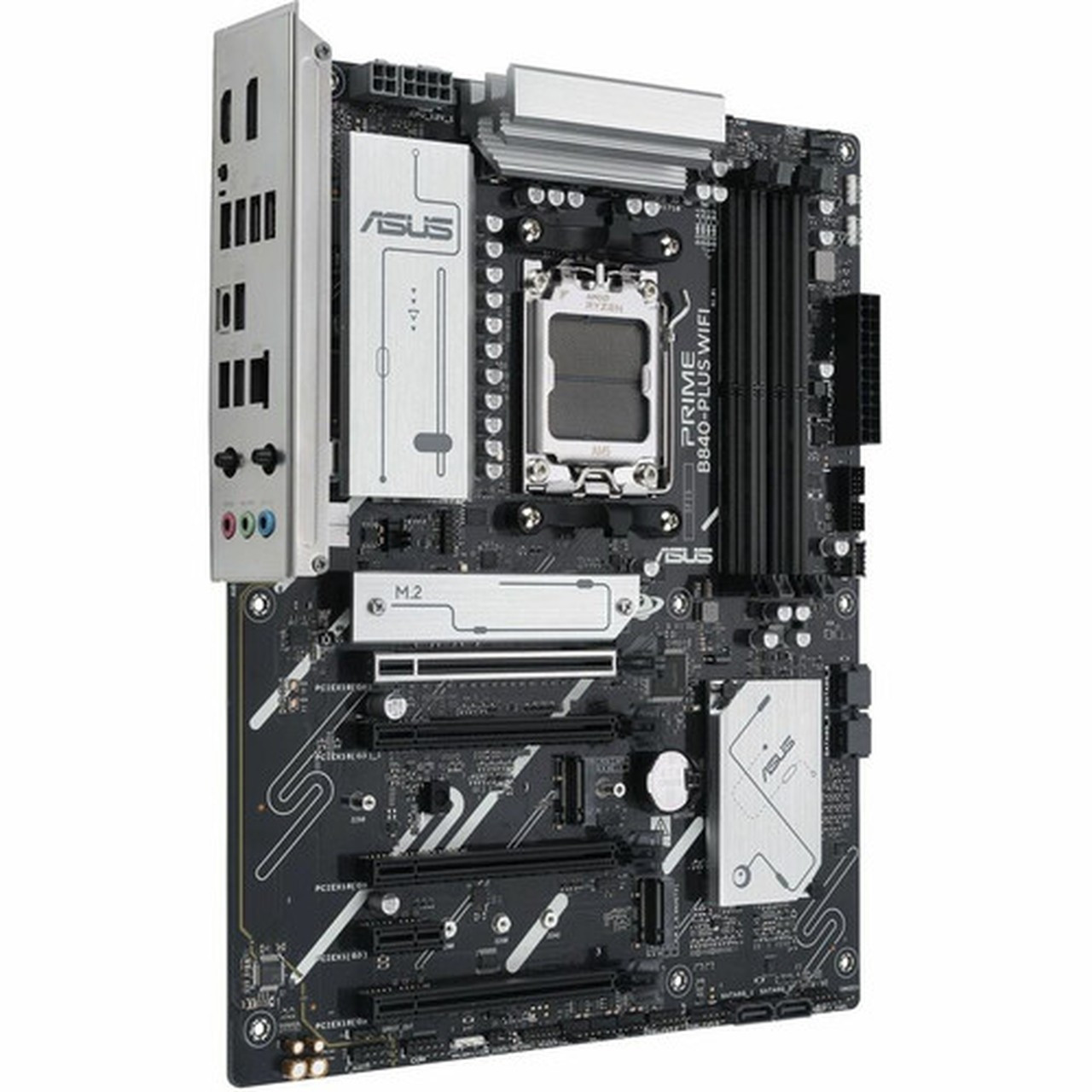

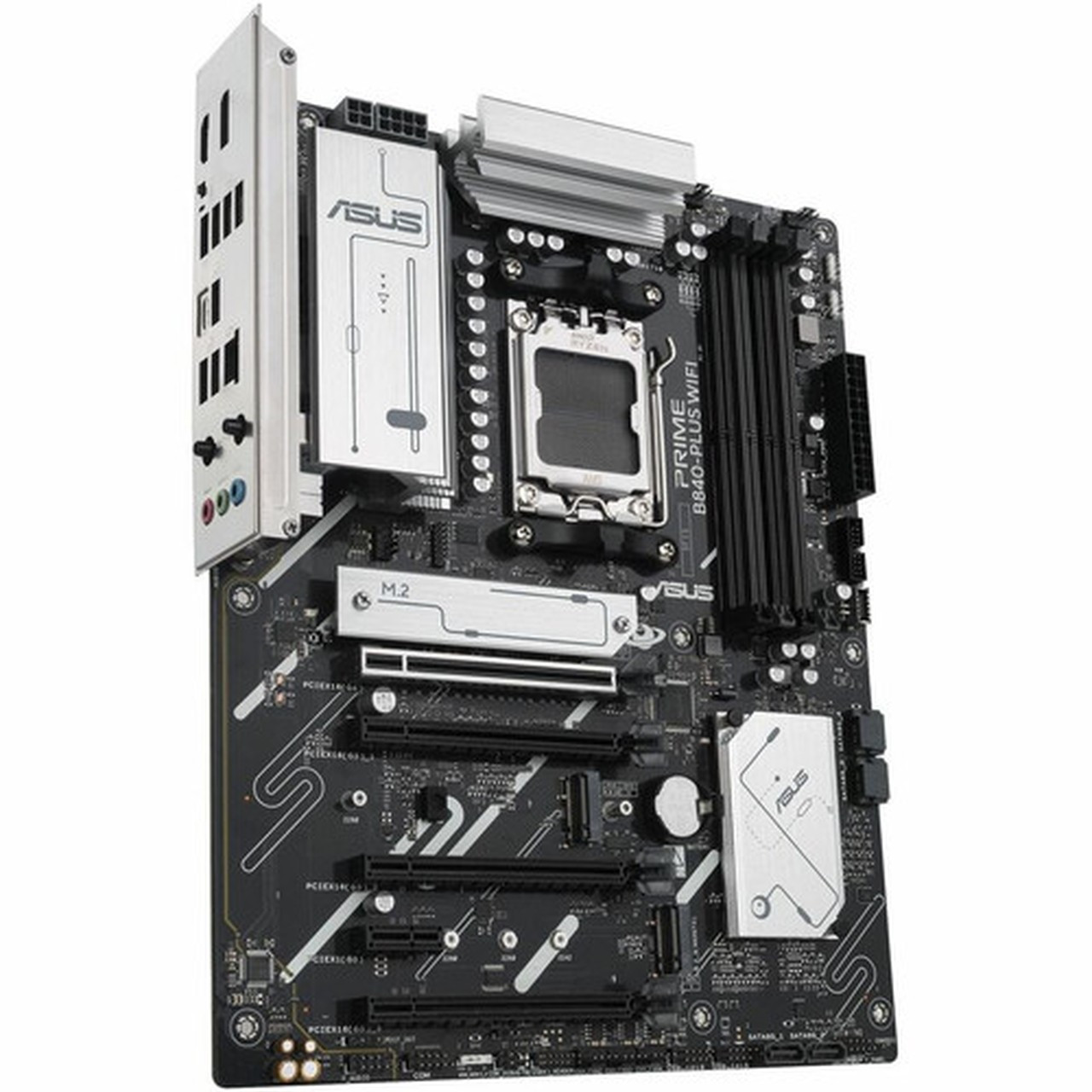

Asus Prime B840-PLUS WIFI Gaming Desktop Motherboard - AMD B840 Chipset - Socket AM5 - ATX - Ryzen 7, Ryzen 8, Ryzen 9 Processor - 192 (PRIME B840-PLUS WIFI)

Marketing Information:

PRIME B840-PLUS WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen^™9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Performance Digital Power Design

PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

• 8 Vcore power
• 2 SOC power
• 1 Misc power

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

Enhanced Memory & Storage Performance | Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1

For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

Three M.2 slots (up to 64 Gbps)

PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling | Cooler by design

The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart Cooling precision | ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

AI-powered: Yes

Chipset Manufacturer: AMD

Chipset Model: B840

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 7,Ryzen 8,Ryzen 9

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 192 GB

Memory Speed Supported: 7600 MHz

Memory Technology: DDR5 SDRAM

Error Checking: ECC

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.3

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11ax

Total Number of Expansion Slots: 6

Total Number of PCI Express Slots: 6

Number of PCI Express x1 Slots: 1

Number of PCI Express x16 Slots: 5

PCI Express Standard: PCI Express 4.0,PCI Express 3.0

Total Number of USB Ports: 8

S/PDIF: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of Thunderbolt 4 Ports: 2

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 3

Total Number of Onboard USB Ports: 7

Number of Onboard USB 2.0 Ports: 4

Form Factor: ATX

Width: 12.01" (305 mm)

Depth: 9.61" (244 mm)

Package Contents:

• Prime B840-PLUS WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber packages
• 3 x Screw packages for M.2 SSD
• 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Limited Warranty: 3 Year
