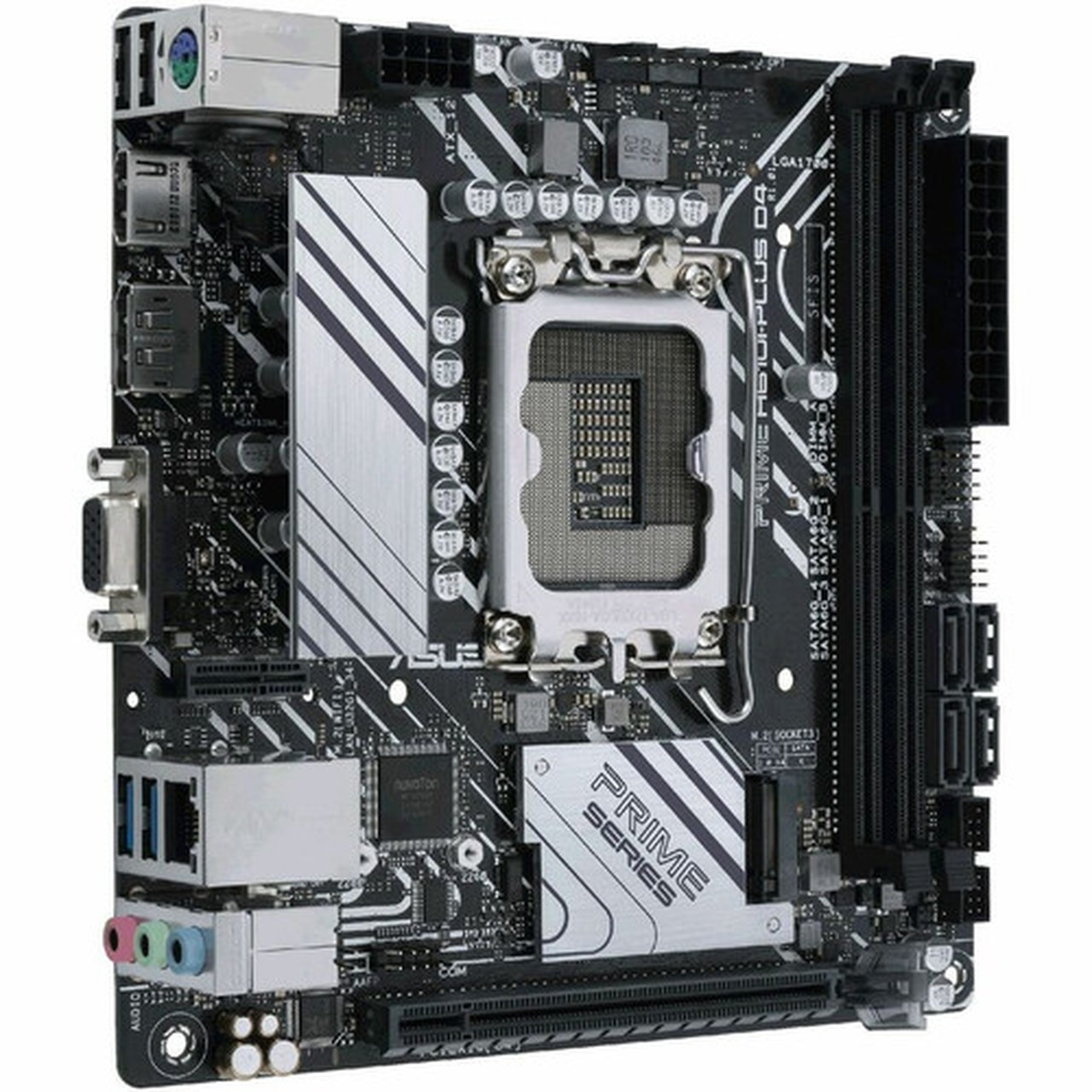

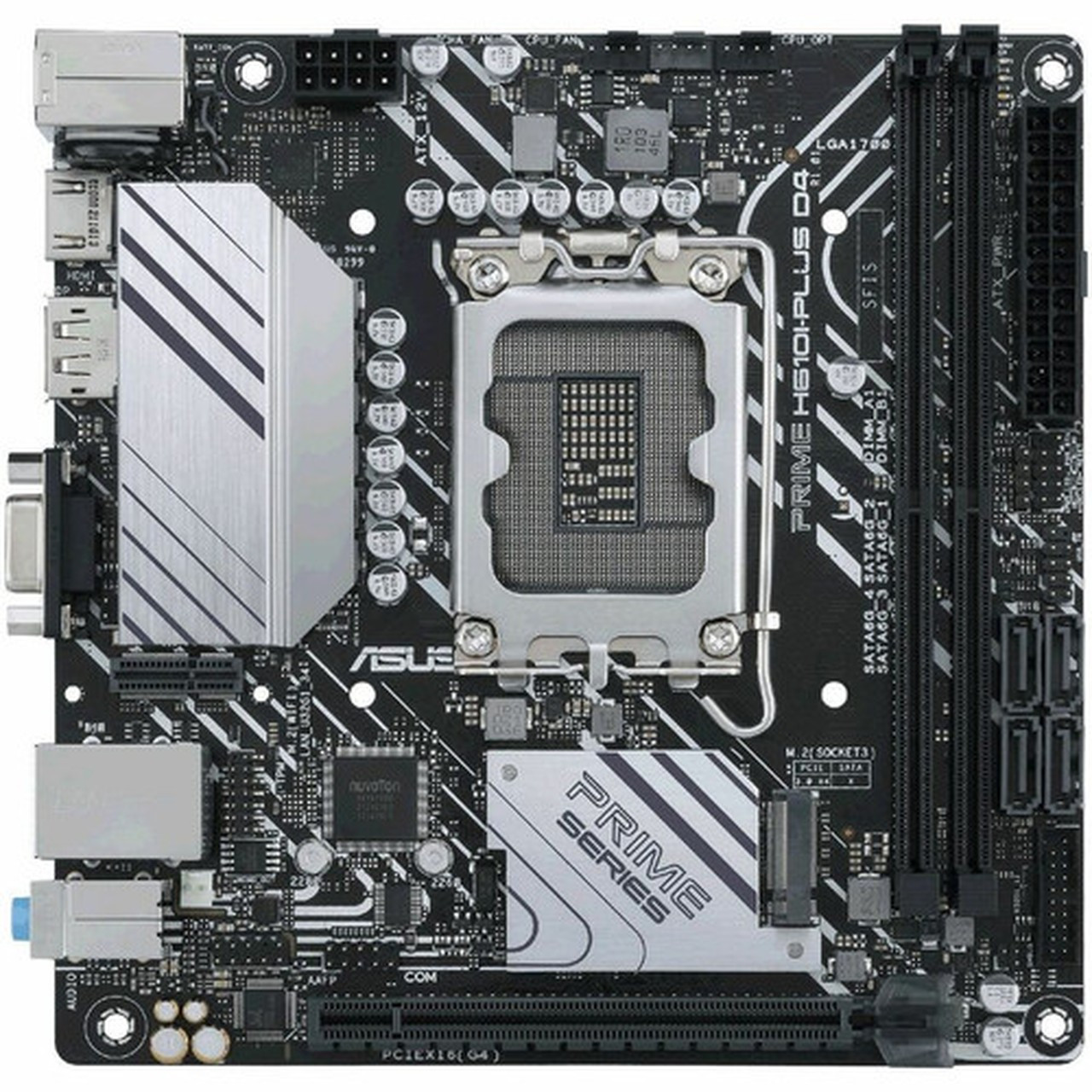

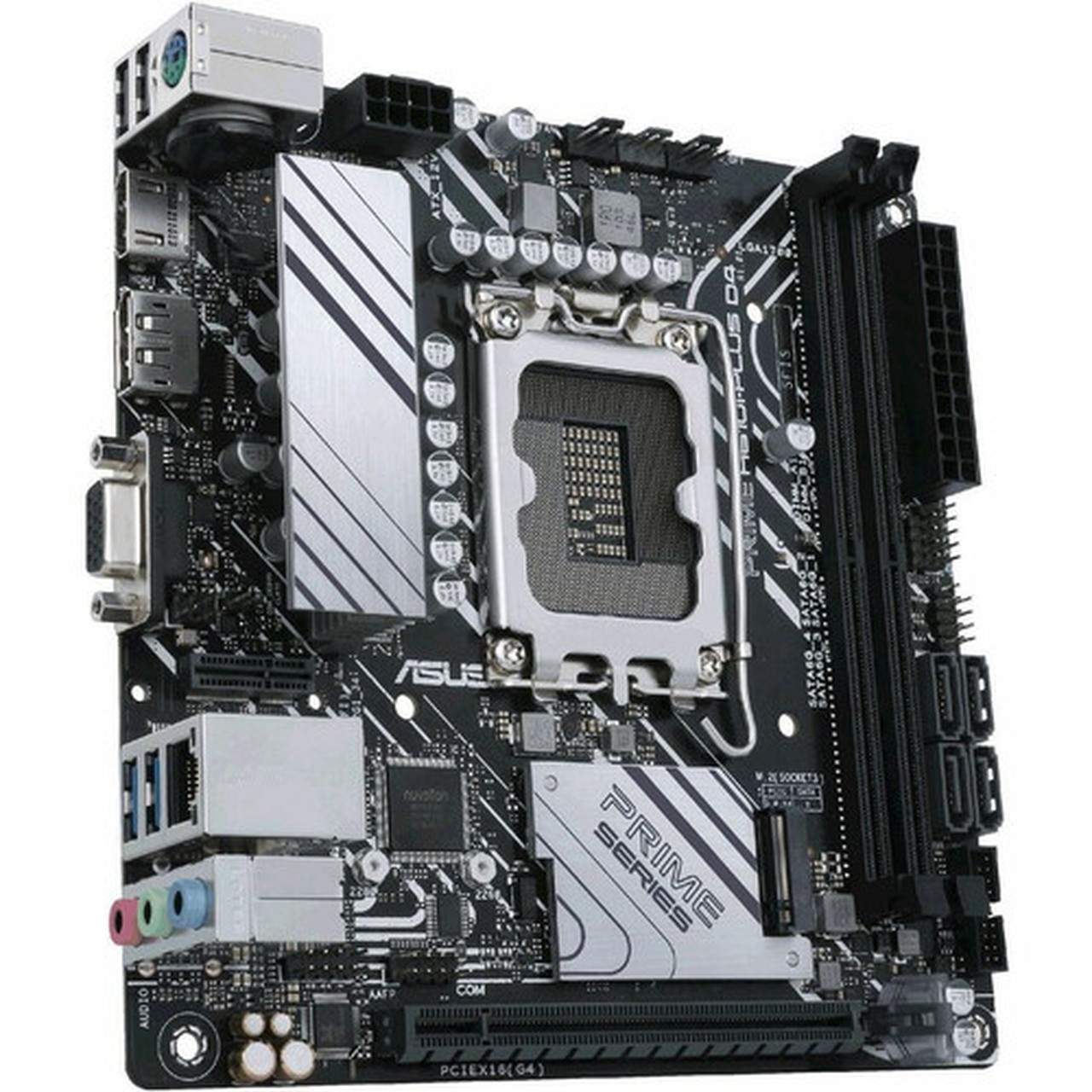

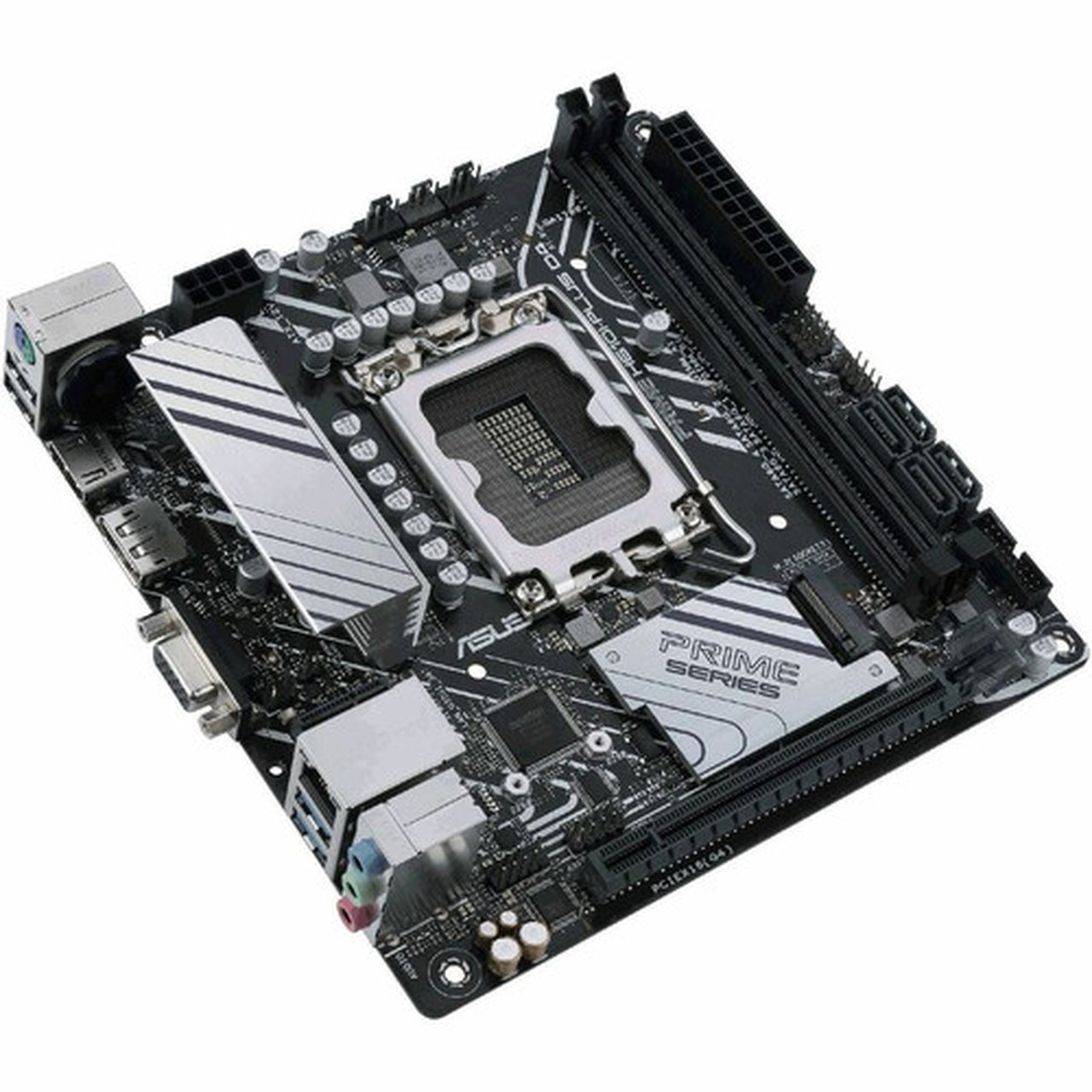

Asus Prime PRIME H610I-PLUS D4-CSM Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Mini ITX - Pentium Gold, Celeron, Core (PRIME H610I-PLUS D4-CSM)

Marketing Information:

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

COOLING

Prime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 14^th, 13^th& 12^thGeneration Intel^®processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Chipset Manufacturer: Intel

Chipset Model: H610

Total Processor Supported: 1

Processor Socket: Socket LGA-1700

Processor Generation Supported: 12th Gen,13th Gen,14th Gen

Processor Supported: Pentium Gold,Celeron,Core

Number of Memory Slots: 2

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 64 GB

Memory Speed Supported: 3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz

Memory Technology: DDR4 SDRAM

Controller Type: Serial ATA/600

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Gigabit Ethernet: Yes

Total Number of Expansion Slots: 1

Total Number of PCI Express Slots: 1

Number of PCI Express x16 Slots: 1

PCI Express Standard: PCI Express 4.0

Total Number of USB Ports: 4

Number of USB 3.2 Gen 1 Type-A Ports: 2

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 1

Total Number of Onboard USB Ports: 4

Number of Onboard USB 2.0 Ports: 2

Form Factor: Mini ITX

Width: 6.70" (170.18 mm)

Depth: 6.70" (170.18 mm)

Package Contents:

• PRIME H610I-PLUSD4-CSM Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Screw Package
• 1 x Vertical M.2 Key E bracket set
• 1 x Support DVD
• 1 x User guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
