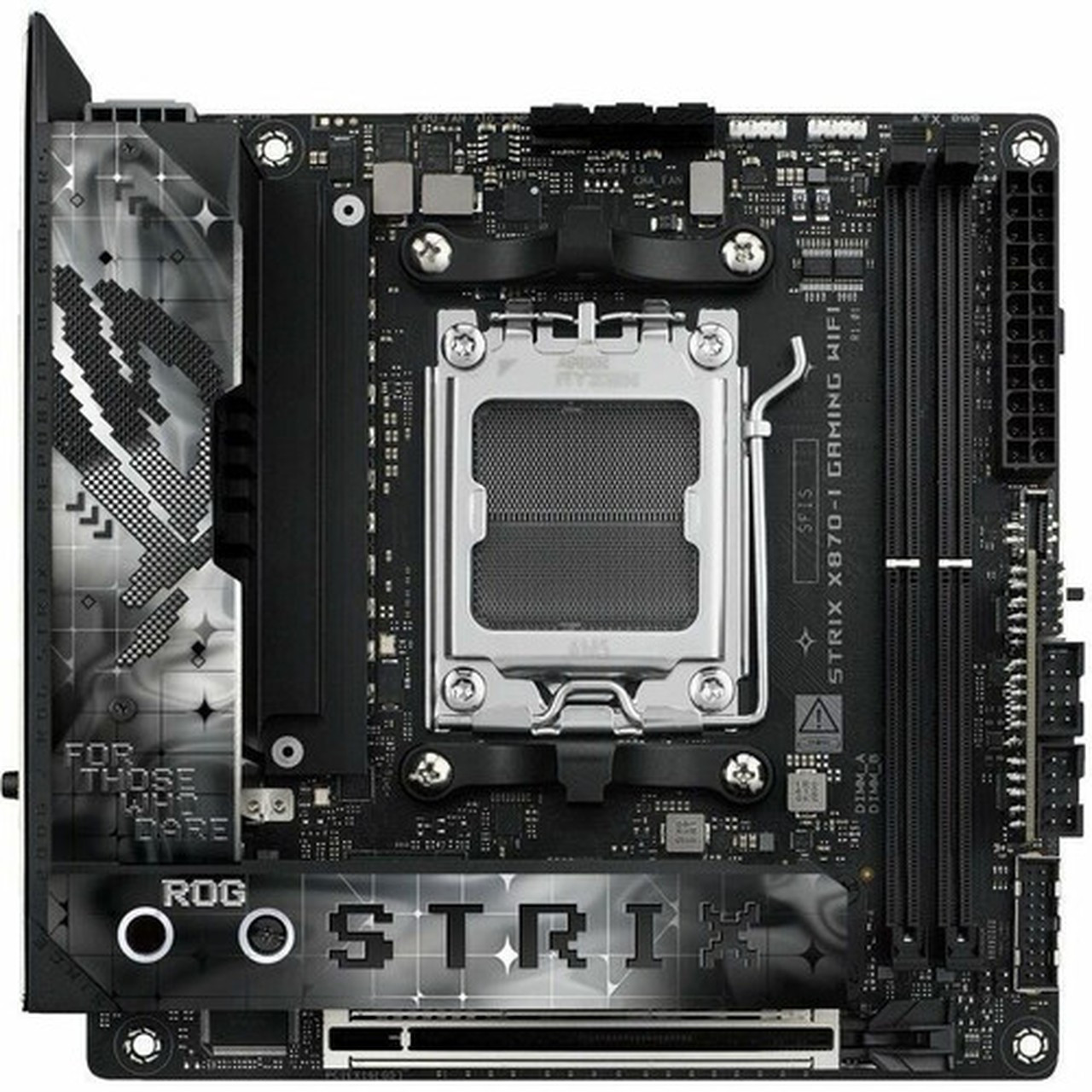

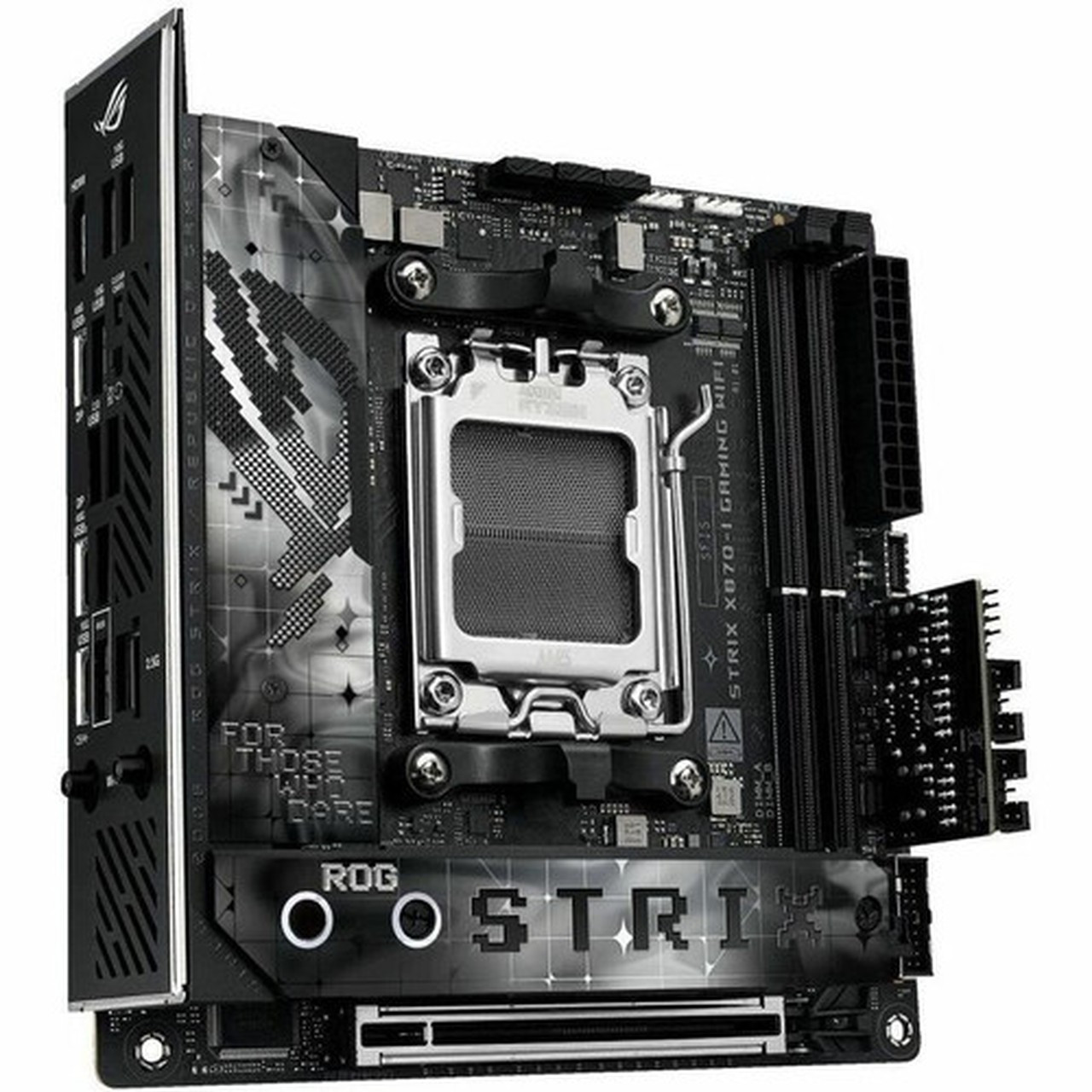

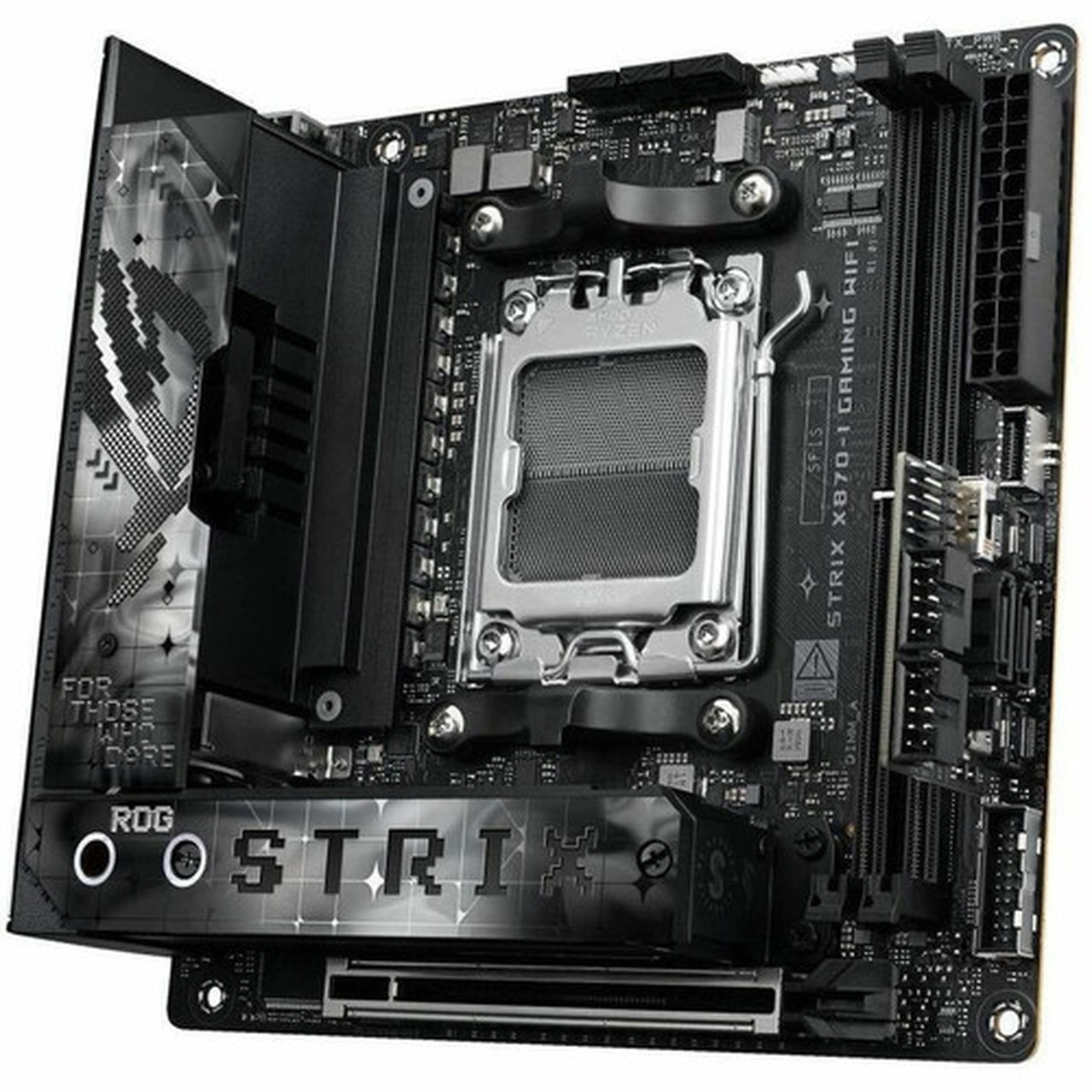

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - Mini ITX - Ryzen 7, Ryzen 8, Ryzen 9 - (ROG STRIX X870-I GAMING WIFI)

Marketing Information:

AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe^®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4^®ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.

• Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket:Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
• Intelligent Control:ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
• ROG Strix Overclocking technologies:Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
• Robust Power Solution:10+2+1 power solution rated for 110A per stage with ProCool II power connectors
• Optimized Thermal Design:Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, connected with an L-shaped backplate
• Latest M.2 Support:One onboard PCIe^®5.0 M.2 slot and one PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity:Dual USB4^®Type-C ports, USB 10Gbps Type-C^®front-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port
• High-Performance Networking:On-board WiFi 7 (802.11be) with Intel^®2.5 Gb Ethernet
• DIY Friendly Design:Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio:ROG Strix Hive II external audio solution with ESS™ SABRE 9260Q DAC, along with Dolby Atmos^®
• Unmatched Personalization:ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
• Renowned Software:ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.

AI-powered: Yes

Chipset Manufacturer: AMD

Chipset Model: X870

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 7,Ryzen 8,Ryzen 9

Number of Memory Slots: 2

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 96 GB

Memory Speed Supported: 8000 MHz

Memory Technology: DDR5 SDRAM

Error Checking: ECC

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10

Onboard Video: CPU Dependent Video

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.4

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11be

Total Number of Expansion Slots: 2

Total Number of PCI Express Slots: 2

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 4.0,PCI Express 5.0

Total Number of USB Ports: 10

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of SATA Interfaces: 2

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 3

Form Factor: Mini ITX

Width: 6.69" (170 mm)

Depth: 6.69" (170 mm)

Weight (Approximate): 3.95 lb (1790 g)

Package Contents:

• Strix X870-I GAMING WIFI Gaming Desktop Motherboard
• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables
• 1 x ROG FPS Card
• 1 x ROG STRIX HIVE II
• 1 x USB Type-C^® power connection cable
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 rubber package(s)
• 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
