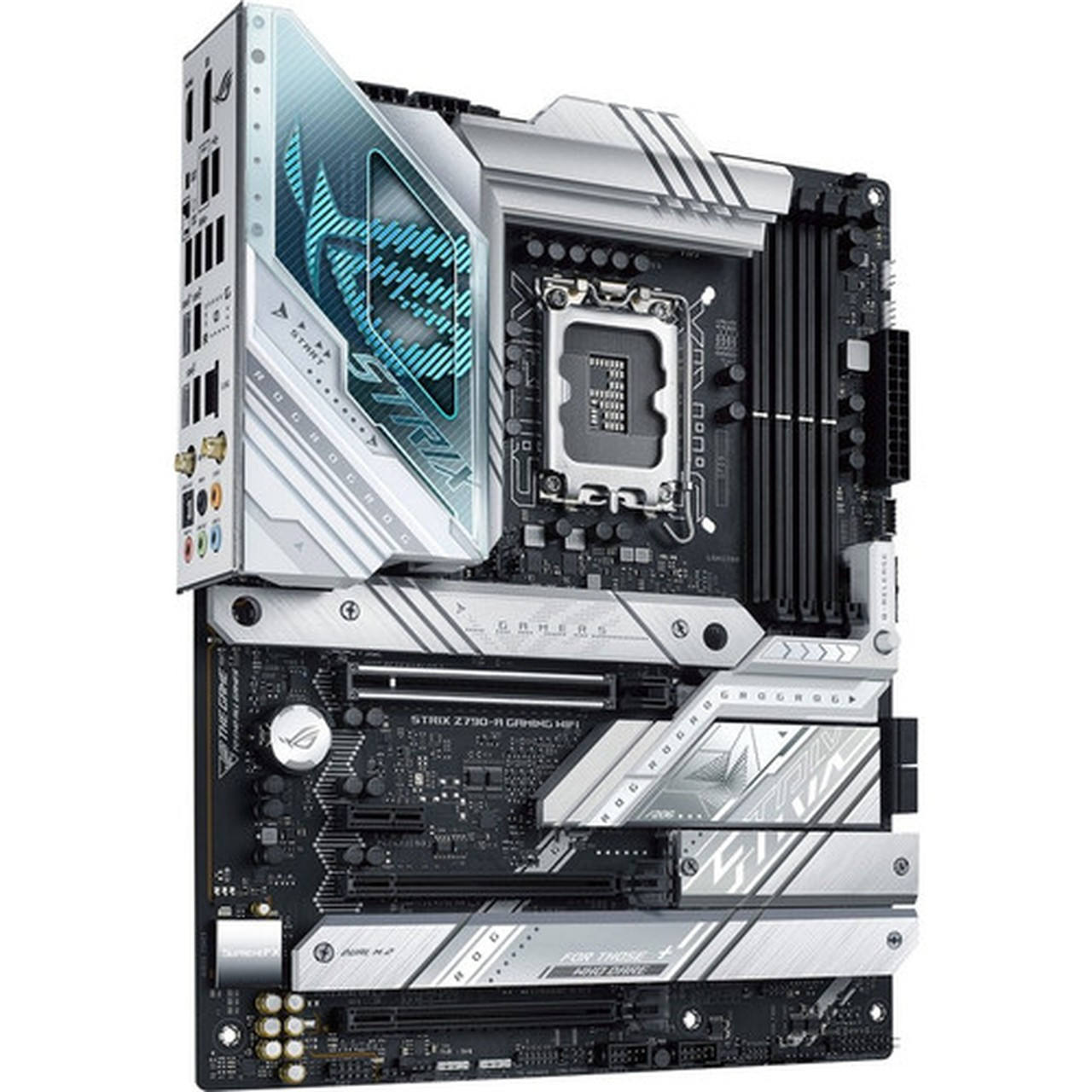

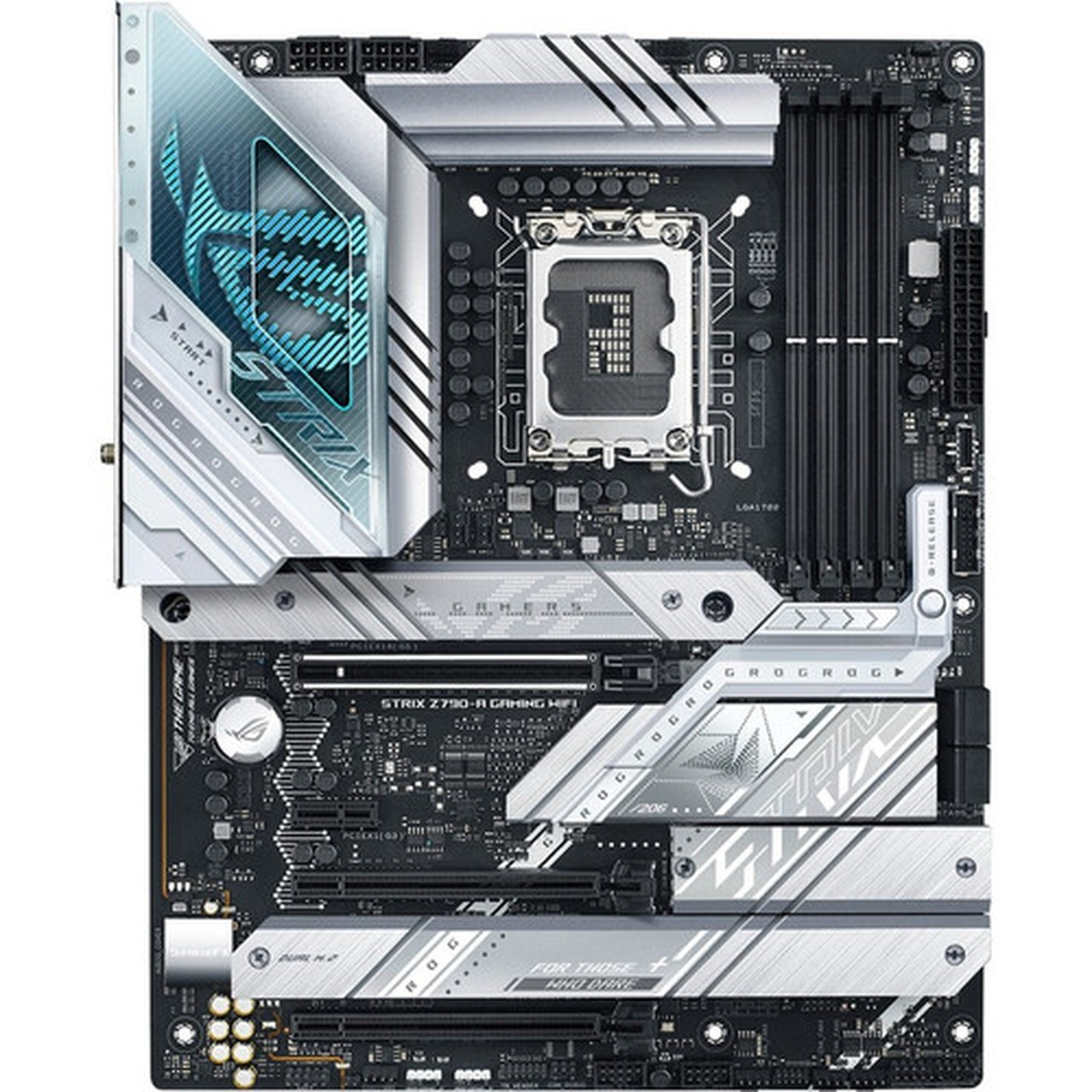

Asus ROG Strix Z790-A GAMING WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, - 128 (ROG STRIX Z790-A GAMING WIFI)

Marketing Information:

Well-versed in style, performance, cooling, and connectivity, the DDR5 variant of the ROG Strix Z790-A exudes the same balance as its D4 brethren, but after taking a master class in memory. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel^® 13^th Gen Core processors, while PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.

PCIE^® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE

Robust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A at its center.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

LEADING CONNECTIVITY

Next-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-A delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

2.5G Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5 Gbps Ethernet.

PLAY IN STYLE

Bold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-A shine in every build.

UNDENIABLY ROG STRIX

The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.

SOFTWARE UTILITIES

A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Chipset Manufacturer: Intel

Chipset Model: Z790

Total Processor Supported: 1

Processor Socket: Socket LGA-1700

Processor Generation Supported: 13th Gen,12th Gen

Processor Supported: Core,Pentium Gold,Celeron

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 128 GB

Memory Speed Supported: 7800 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.3

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of Expansion Slots: 4.0

Total Number of PCI Express Slots: 4

Number of PCI Express x1 Slots: 1

Number of PCI Express x16 Slots: 3

PCI Express Standard: PCI Express 5.0,PCI Express 3.0,PCI Express 4.0

Total Number of USB Ports: 10

Number of USB 3.2 Gen 1 Type-A Ports: 4

Number of USB 3.2 Gen 2 Type-A Ports: 2

Number of USB 3.2 Gen 2 Type-C Ports: 1

S/PDIF: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 4

Total Number of Onboard USB Ports: 7

Number of Onboard USB 2.0 Ports: 4

Form Factor: ATX

Width: 12" (304.80 mm)

Depth: 9.60" (243.84 mm)

Package Contents:

• Strix Z790-A GAMING WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• 1 x M.2 backplate Rubber
• 1 x User guide
