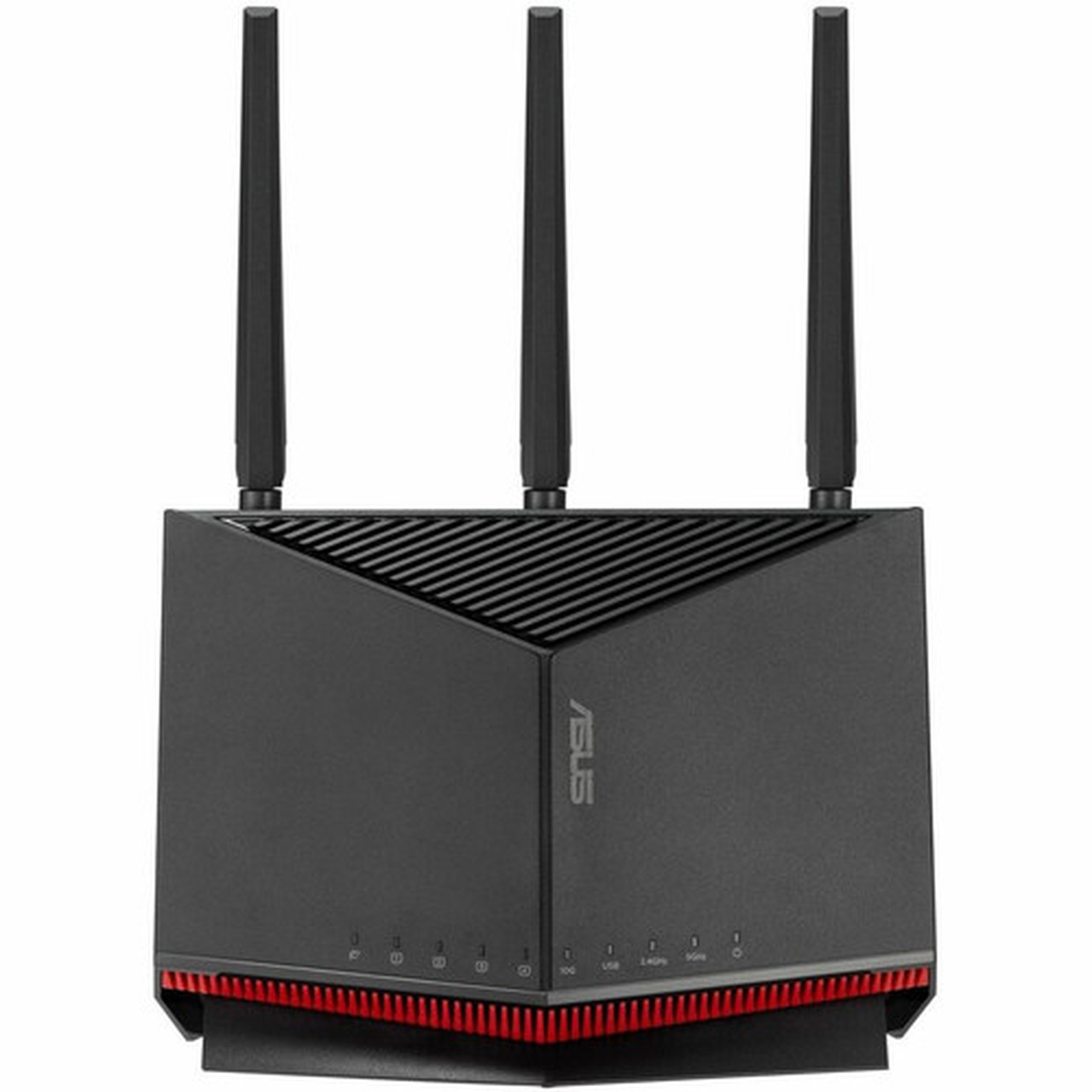

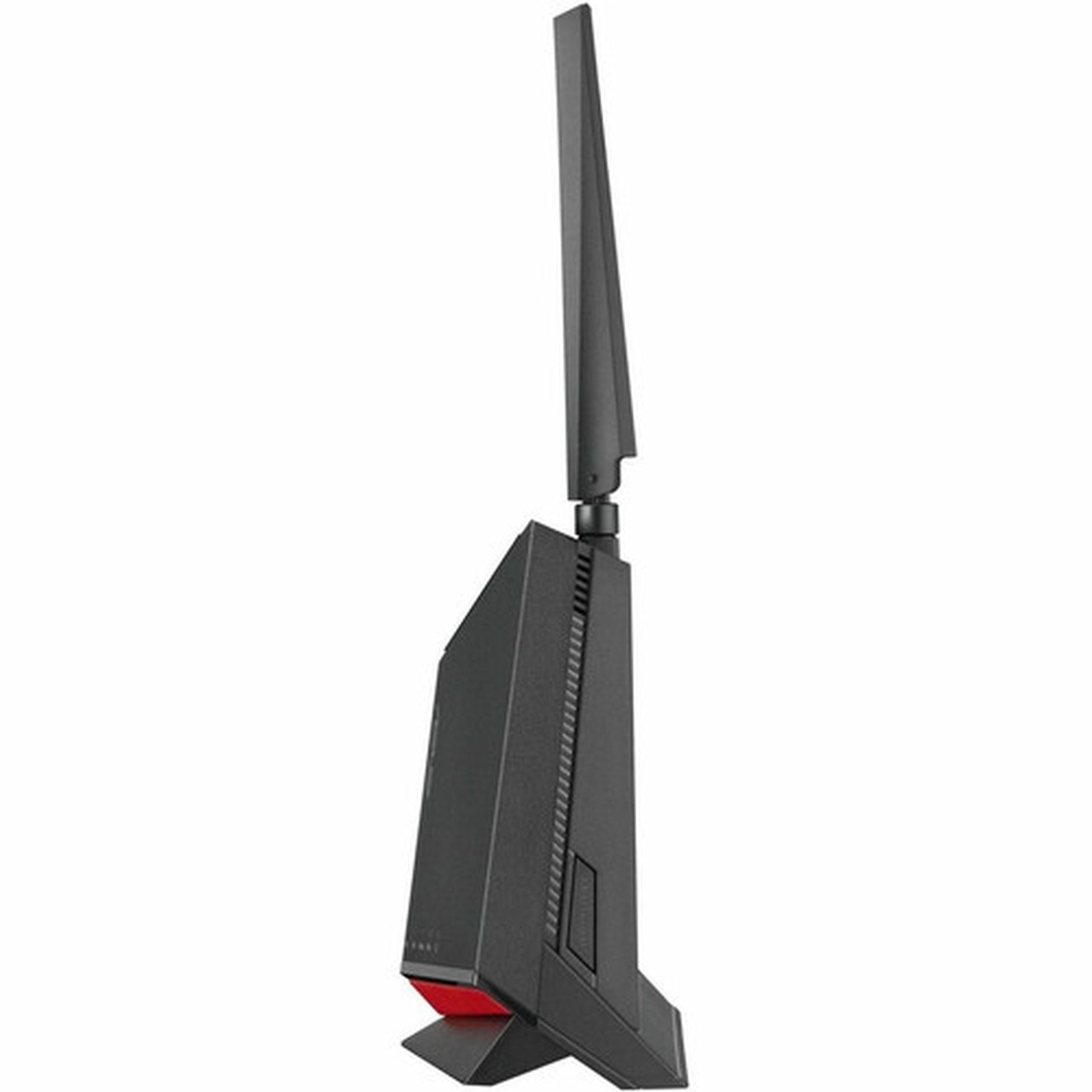

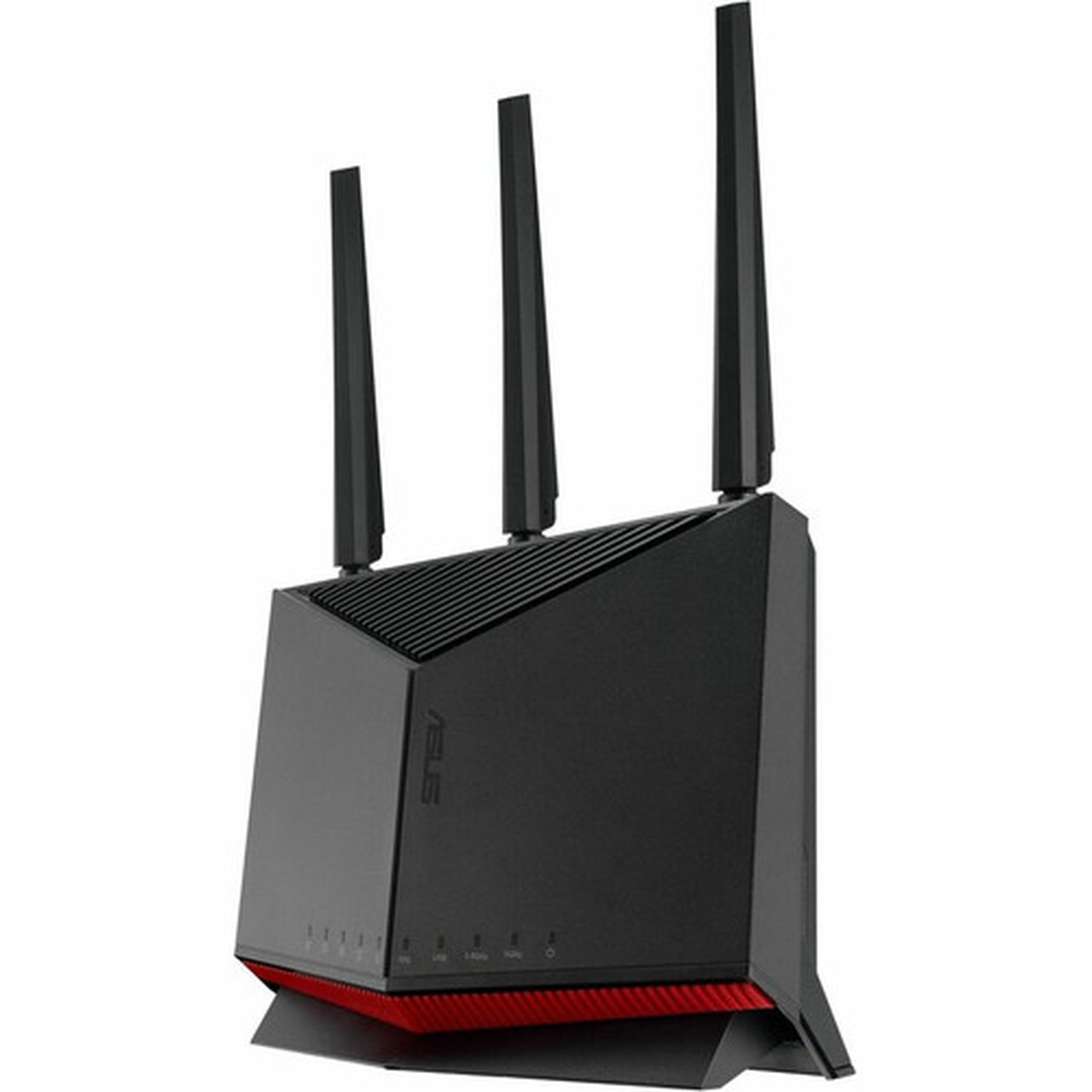

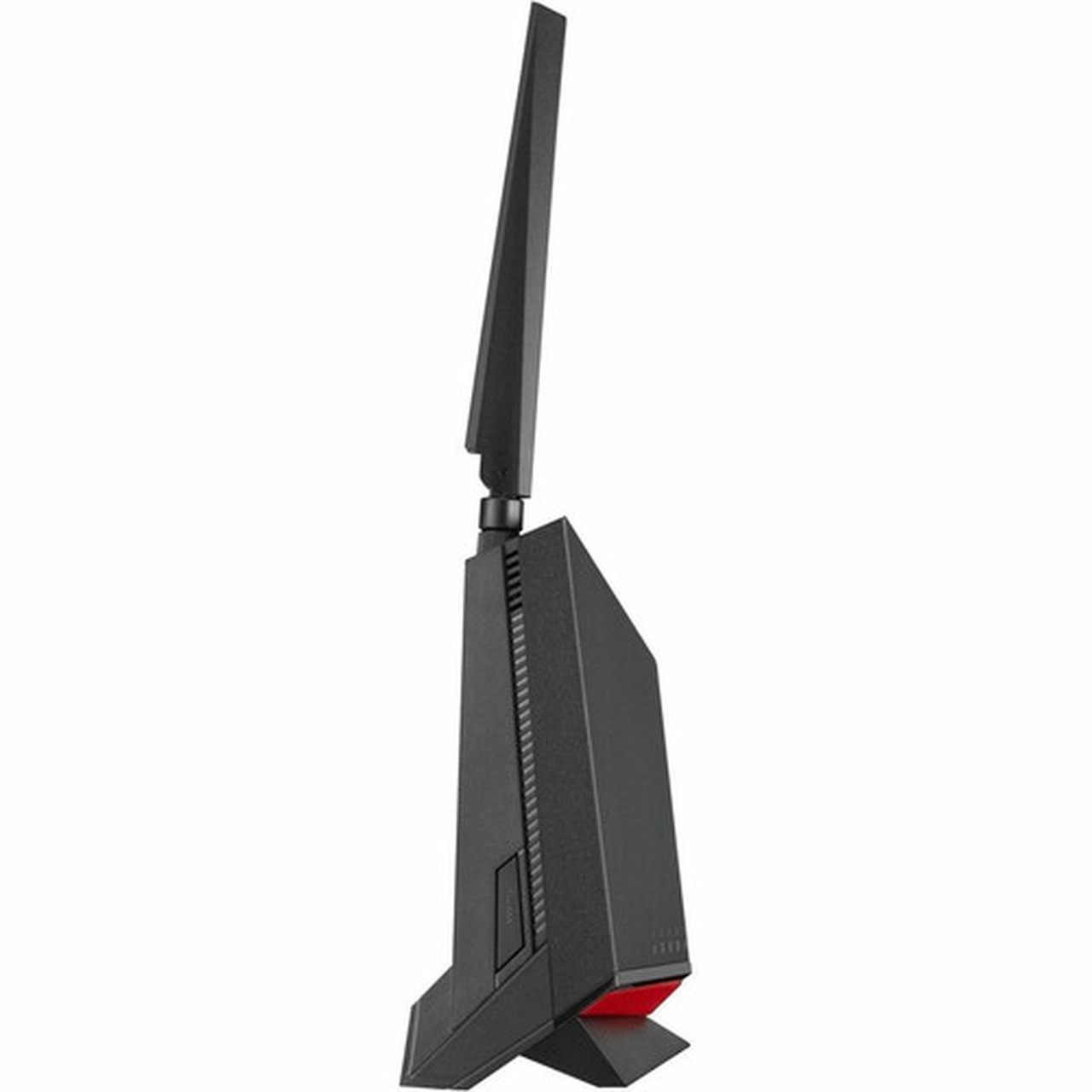

Asus RT-BE86U Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be Ethernet Wireless Router - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 4 x x (RT-BE86U)

Marketing Information:

ASUS RT-BE86U | Transcend WiFi 7, Beyond Performance

Dominate your network with the ultimate performance for those who demand the absolute best, today and tomorrow. ASUS RT-BE86U, the successor to the legacy RT-AX86U, powered by next-level WiFi 7, delivers blazing-fast dual-band 6800 Mbps for your connected living. The RT-BE86U boasts a monster 20G combined network capacity, unlocking cutting-edge 10G network with a 10G WAN/LAN port and up to four 2.5G LAN ports. The new ASUSWRT 5.0 ensures a worry-free network experience from end-to-end and 24/7.

IEEE 802.11be | Beyond Fast WiFi 7

The RT-BE86U boasts dual-band WiFi 7 technology, achieving blazing-fast speeds of 6800 Mbps, ensuring seamless streaming, gaming, and data-intensive tasks. Whether you're binge-watching your favorite shows or collaborating in a virtual meeting, this router delivers.

• Dual-Band up to 6800 Mbps
• 5 GHz 5764 Mbps
• 2.4 GHz 1032 Mbps
• Advanced 160 MHz Channels Faster, lower latency and more devices
• Up to 20% More Transfers 4K-QAM
• Lag-free Dual-Band MLO Support STR and EMLSR Modes

Advanced 160 MHz Channels

The RT-BE86U unleashes the full potential of the ultrawide 160 MHz channels, delivering ultra-fast data transfer rates, reduced latency, and enhanced performance for a smoother network experience.

Comprehensive MLO Support

Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. ASUS RT-BE58U is built for the future of all WiFi 7 devices, regardless of the MLO mode they use.

Multi-Gig Network | Unlock Next-gen 10G Network

The RT-BE86U comes with a 10G port and four 2.5G ports that combine for up to 20G of blistering WAN and LAN capacity. Advanced network configurations are made easy with Multi-WAN auto detection, convenient mobile tethering backup via USB and powerful VLAN controls.

10G WAN/LAN Port

The RT-BE86U includes one 10G WAN/LAN port, ready for next-gen entertainment or home studios. It also unlocks an ultra-high speed 10 Gbps ethernet backhaul for a robust wired network.

Up to Four 2.5G LAN Ports

One 2.5G WAN/LAN port and three 2.5G LAN ports for high-speed entertainment, home studios as well as ultra-fast 2.5 Gbps ethernet backhaul.

Multi-WAN with Auto Detection

Multi-WAN input support includes a 10G WAN/LAN port and a 2.5G WAN/LAN port for flexible configurations. Hassle-free auto WAN detection streamlines setup.

Dedicated Gaming Port

One 2.5G LAN port is configured as a dedicated gaming port, prioritizing any connected gaming devices for competitive gameplay.

Powerful VLAN Controls

Simplify home network management by organizing devices into logical groups using VLANs, making it easier to apply specific security rules and manage access.

4G / 5G Mobile Tethering

Stay connected anytime with convenient USB 4G LTE and 5G mobile tethering, even during internet outages or on the go.

DESIGN | Legacy Performance, Evolved

The RT-BE86U builds upon the legacy of the RT-AX86U with WiFi 7 technology, delivering superior network performance and exceptional reliability. Equipped with high-power front-end modules, the external antennas eliminate WiFi dead zones while providing consistent coverage in all directions. This 7-stream design enhances throughput and expands coverage, while the detachable antennas can be repositioned to better suit your specific needs, such as overcoming walls or other interference.

• Up to 7-Stream
• Coverage of up to 2,750 sq. ft.
<

Wi-Fi Generation: Wi-Fi 7

Network Band: Dual Band

Processor Core: Quad-core (4 Core)

Processor Speed: 2.60 GHz

Standard Memory: 1 GB

AI-powered: Yes

Broadband Transmission Technology: Ethernet

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be

ISM Band: Yes

UNII Band: Yes

ISM Maximum Frequency: 2.40 GHz

UNII Maximum Frequency: 5 GHz

Total Number of Antennas: 4

Number of Internal Antennas: 1

Number of External Antennas: 3

Total Wireless Transmission Speed: 850 MB/s

Total Number of Network Ports: 5

Number of Network (RJ-45) Ports: 3

USB: Yes

Number of Broadband (RJ-45) Ports: 2

Game Port: Yes

Ethernet Technology: 10 Gigabit Ethernet

VPN Supported: Yes

Flash Memory Capacity: 256 MB

Height: 12.44" (316 mm)

Width: 9.25" (235 mm)

Depth: 3.54" (90 mm)

Weight (Approximate): 1.88 lb (854 g)

Package Contents:

• RT-BE86U Wireless Router
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card
