Asus

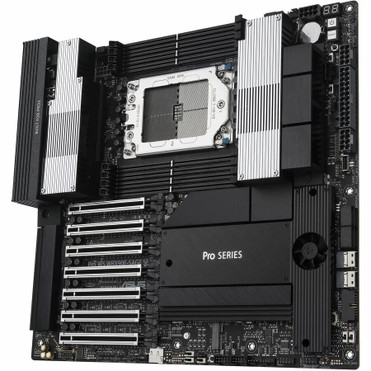

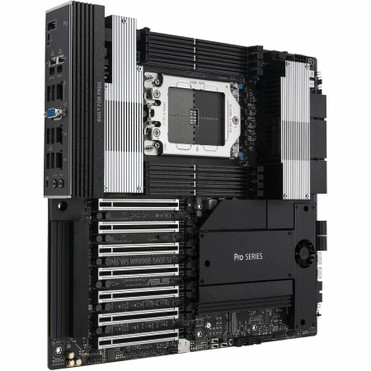

Asus WS WRX90E-SAGE SE Workstation Motherboard - AMD WRX90 Chipset - Socket sTR5 - SSI EEB - Ryzen Threadripper PRO Processor DDR5 RAM (PRO WS WRX90E-SAGE SE)
- AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity:Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
- CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
- Server-grade IPMI remote management and onboard BMC:Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Marketing Information:
AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
Chipset Manufacturer: AMD
Chipset Model: WRX90
Total Processor Supported: 1
Processor Socket: Socket sTR5
Processor Supported: Ryzen Threadripper PRO
Number of Memory Slots: 8
Memory Form Factor: DIMM,UDIMM
Memory Technology: DDR5 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 5.1
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Total Number of Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x16 Slots: 7
PCI Express Standard: PCI Express 5.0
Total Number of USB Ports: 9
Number of USB4 Ports: 2
VGA: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Form Factor: SSI EEB
Width: 12.99" (330 mm)
Depth: 12.01" (305 mm)
- Compatible Ryzen Threadripper PRO processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- The SSI EEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
[custom-specifications]
| Specifications | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PROWSWRX90ESAGESE |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Series | PRO |
| Product Model | WS WRX90E-SAGE SE |
| Product Name | PRO WS WRX90E-SAGE SE Workstation Motherboard |
| Packaged Quantity | 1 |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Total Processor Supported | 1 |
| Processor Socket | Socket sTR5 |
| Processor Supported | Ryzen Threadripper PRO |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM,UDIMM |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 5.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x16 Slots | 7 |
| PCI Express Standard | PCI Express 5.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB4 Ports | 2 |
| VGA | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | SSI EEB |
| Width | 12.99" (330 mm) |
| Depth | 12.01" (305 mm) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
