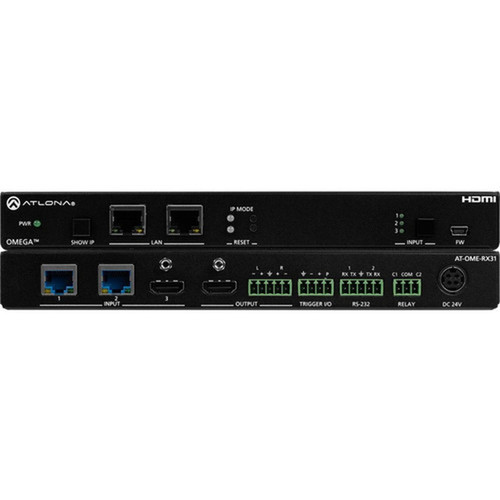

Atlona AV Switcher And Receiver With Scaler 3 Input Device Dual HDBaseT Plus HDMI Inputs 1 Output 328.08 Ft 100000 AT-OME-RX31
Write a Review
Atlona
Atlona AV Switcher And Receiver With Scaler 3 Input Device Dual HDBaseT Plus HDMI Inputs 1 Output 328.08 Ft 100000 AT-OME-RX31
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Connectivity Technology: Wired
Number of Input Devices Supported: 3
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Graphics Modes: 4K UHD
Supported Video Modes: 576i,576p,480i,480p,1080p,1080i,720p
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Receiver Height: 1.26" (32 mm)
Receiver Width: 1.93" (49 mm)
Receiver Depth: 4.69" (119 mm)
Receiver Weight (Approximate): 975 g
- Dual HDBaseTTM receiver for HDMI®, Ethernet, power, and control
- Local HDMI input
- 4K/UHD downscaling and upscaling
- Supplies powering over HDBaseT to a transmitter
- Audio de-embedding
- Dual Ethernet ports and integrated network switch
- Two relays provide control for motorized screen, shades, or display lift
- Trigger I/O ports for occupancy sensing
[custom-specifications]
| Specifications | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-RX31 |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | AT-OME-RX31 |
| Product Name | 3×1 AV Switcher and Receiver with Scaler - Dual HDBaseT Plus HDMI Inputs |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 3 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Video | |
| Graphics Modes | 4K UHD |
| Supported Video Modes | 576i,576p,480i,480p,1080p,1080i,720p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Receiver Height | 1.26" (32 mm) |
| Receiver Width | 1.93" (49 mm) |
| Receiver Depth | 4.69" (119 mm) |
| Receiver Weight (Approximate) | 975 g |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
