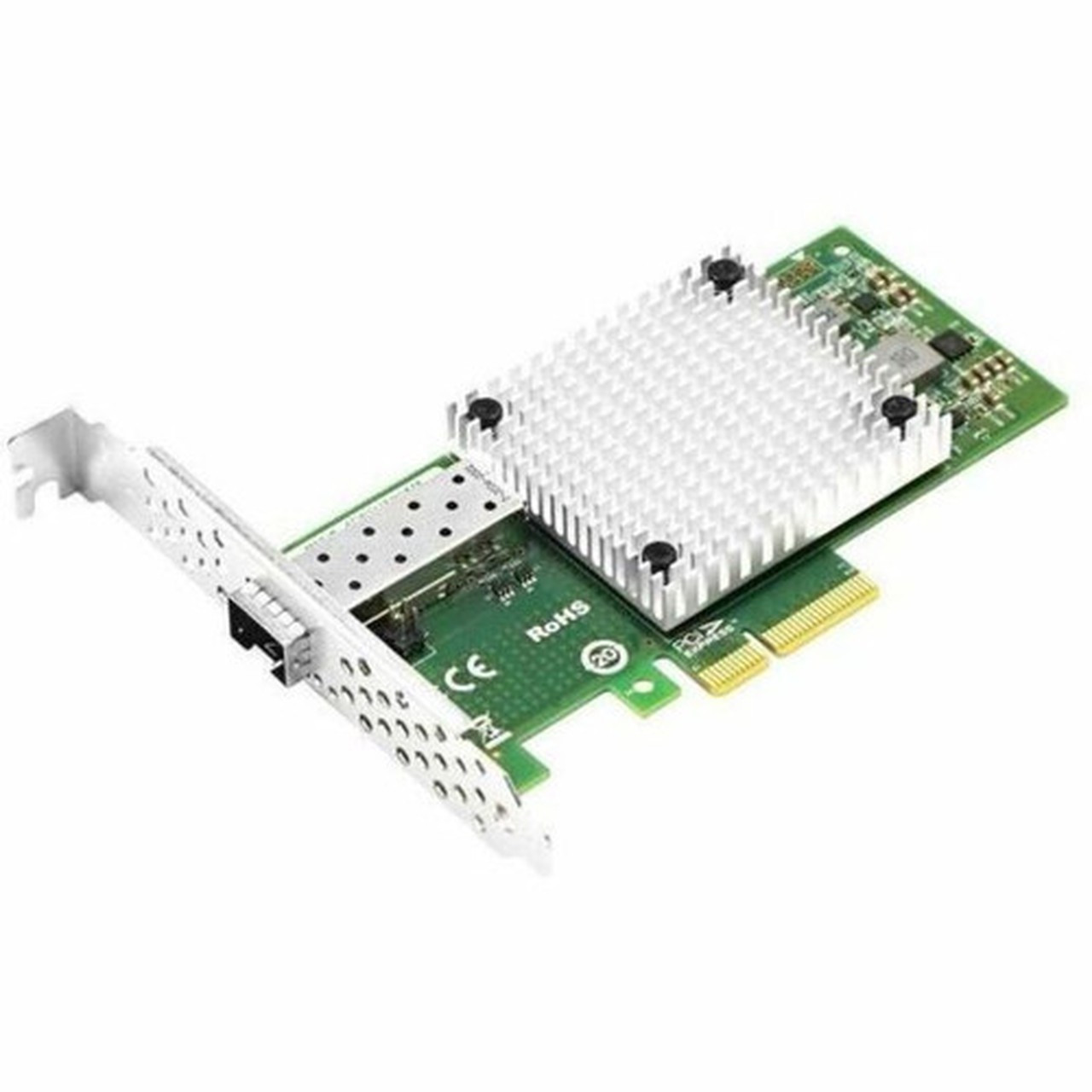

Axiom 10Gbs Single Port SFP+ PCIe x4 NIC Card - PCIE24-1SFPP-AX - PCI Express 2.0 x4 - Intel 82599 - 1 Port(s) - Optical Fiber - - - (PCIE24-1SFPP-AX)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Optimized for virtualization.
- Maximizes I/O consolidation with high performance ports.
- Leverages and protects existing IT investments.
- Delivers cost reductions in operating expense and total cost expense.
- Provide connectivity and scalability required for enterprise environments.
- Deliver enterprise-class connectivity.
- Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
- Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
- Includes Full Height and Half Height Mounting Brackets
- 10Gbs Single Port SFP+ PCIe x4 NIC Card - PCIE24-1SFPP-AX
- Full Height and Half Height Mounting Brackets
Marketing Information:
Axiom's family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 100Gbs on interfaces ranging from 32-Bit PCI to PCIe 4.0 x16. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.
Chipset Manufacturer: Intel
Chipset Model: 82599
Host Interface: PCI Express 2.0 x4
Total Number of Ports: 1
Expansion Slot Type: SFP+
Media Type Supported: Optical Fiber
Maximum Data Transfer Rate: 10 Gbit/s
Network Technology: 10GBase-X
Form Factor: Plug-in Card
Height: 6.50" (165 mm)
Width: 0.55" (14 mm)
Depth: 2.72" (69 mm)
Weight (Approximate): 104.3 g
Package Contents:
Device Supported: Server
- To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
- This 2000MB/s bandwidth adapter is ideal for PCs with PCI Express 2.0 x4 slots, ensuring top level network connectivity for your desktops
- Add your computer to your home or office network with this single port 10gigabit ethernet card conveniently
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
[custom-specifications]
Specifications | |
Manufacturer | Axiom Memory Solutions |
Manufacturer Part Number | PCIE24-1SFPP-AX |
Manufacturer Website Address | http://search.axiomupgrades.com |
Brand Name | Axiom |
Product Name | 10Gbs Single Port SFP+ PCIe x4 NIC Card - PCIE24-1SFPP-AX |
Product Type | 10Gigabit Ethernet Card |
Technical Information | |
Chipset Manufacturer | Intel |
Chipset Model | 82599 |
Interfaces/Ports | |
Host Interface | PCI Express 2.0 x4 |
Total Number of Ports | 1 |
I/O Expansions | |
Expansion Slot Type | SFP+ |
Media & Performance | |
Media Type Supported | Optical Fiber |
Maximum Data Transfer Rate | 10 Gbit/s |
Network & Communication | |
Network Technology | 10GBase-X |
Physical Characteristics | |
Form Factor | Plug-in Card |
Height | 6.50" (165 mm) |
Width | 0.55" (14 mm) |
Depth | 2.72" (69 mm) |
Weight (Approximate) | 104.3 g |
Miscellaneous | |
Package Contents |
|
Device Supported | Server |
[/custom-specifications]
