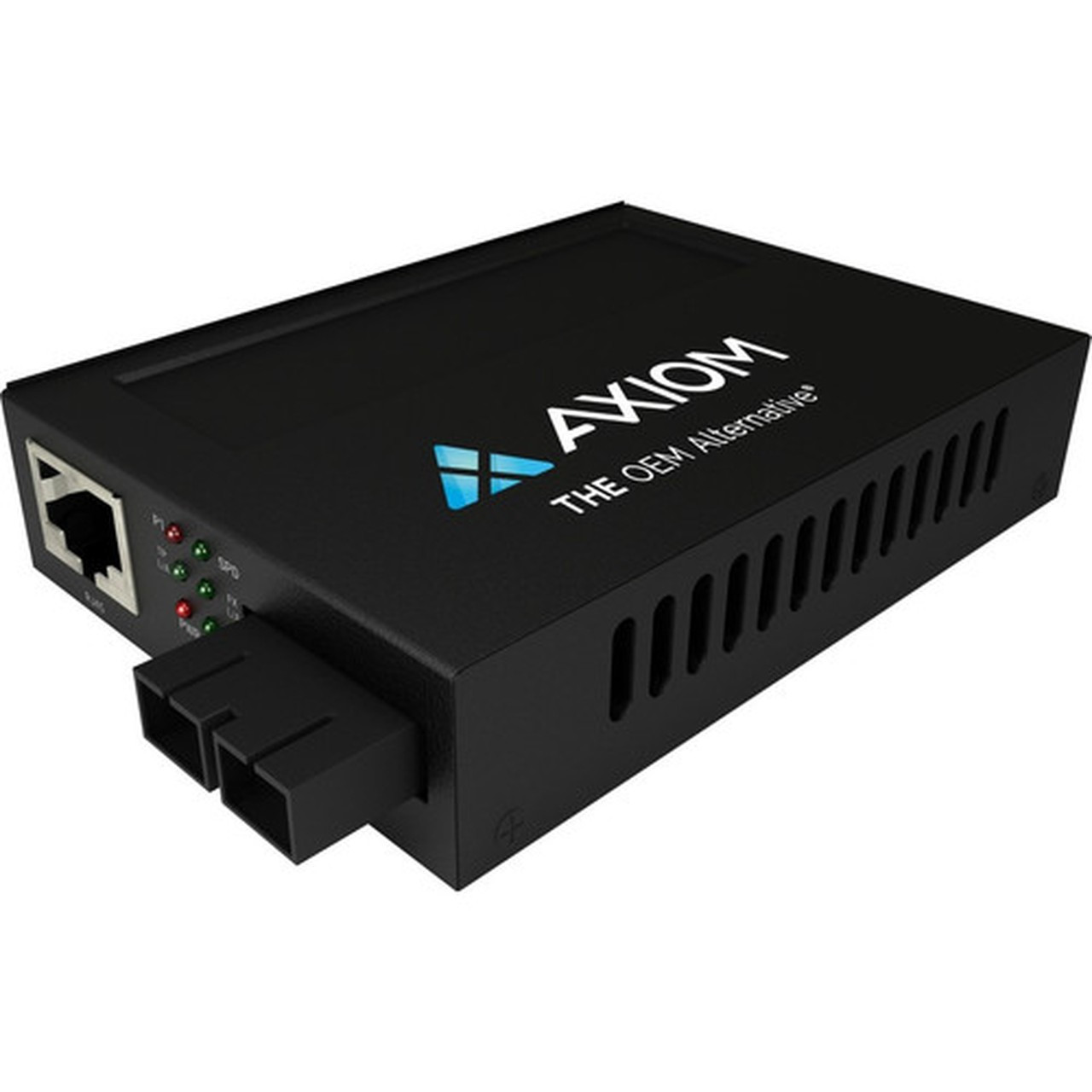

Axiom 1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x SC - (MCP32-T2-S3S10-AX)

(No reviews) Write a Review
$263.10
$254.76
$209.01
(You save $54.09 )
SKU: MCP32-T2-S3S10-AX
UPC: 840177840296
Weight: 1.23 LBS
Adding to cart… The item has been added
  • Expand your network capabilities with this 2 transceiver/media converter
  • With Twisted Pair cable, get the desired data transfer rate up to a required distance
  • With 1000Base-LX technology get up to 1000Mbps data transfer rate over twisted pair cable
    Marketing Information:

    Features

    The Axiom POE (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).

    Features:

    • 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
    • IEEE802.3af PoE PSE compatible
    • Built-in AC/DC power supply
    • Over-current protection
    • DIP switch to set different configurations
    • LFP (Link Fault Pass-through) support

    Total Number of Ports: 2
    Network (RJ-45): Yes
    Number of PoE+ (RJ-45) Ports: 1
    PoE Port Type: PSE
    Number of SC Ports: 1
    Media Type Supported:
    • Twisted Pair
    • Optical Fiber

    Fiber Mode Supported: Single-mode
    Fiber Optic Wavelength: 1310 nm
    Maximum Distance Supported: 6.2 Mile
    Ethernet Technology: Gigabit Ethernet
    Network Technology:
    • 1000Base-LX
    • 10/100/1000Base-T

    Power Source: AC
    Limited Warranty: 1 Year

[custom-specifications]

Specifications
Manufacturer: Axiom Memory Solutions
Manufacturer Part Number: MCP32-T2-S3S10-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: 1Gbs POE+ RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of PoE+ (RJ-45) Ports: 1
PoE Port Type: PSE
Number of SC Ports: 1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber

Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 6.2 Mile
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
  • 1000Base-LX
  • 10/100/1000Base-T

Power Description
Power Source: AC
Warranty
Limited Warranty: 1 Year

[/custom-specifications]

1 Year
