- Expand your network capabilities with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 1000Base-SX technology get up to 1000Mbps data transfer rate over twisted pair cable
Marketing Information: Features

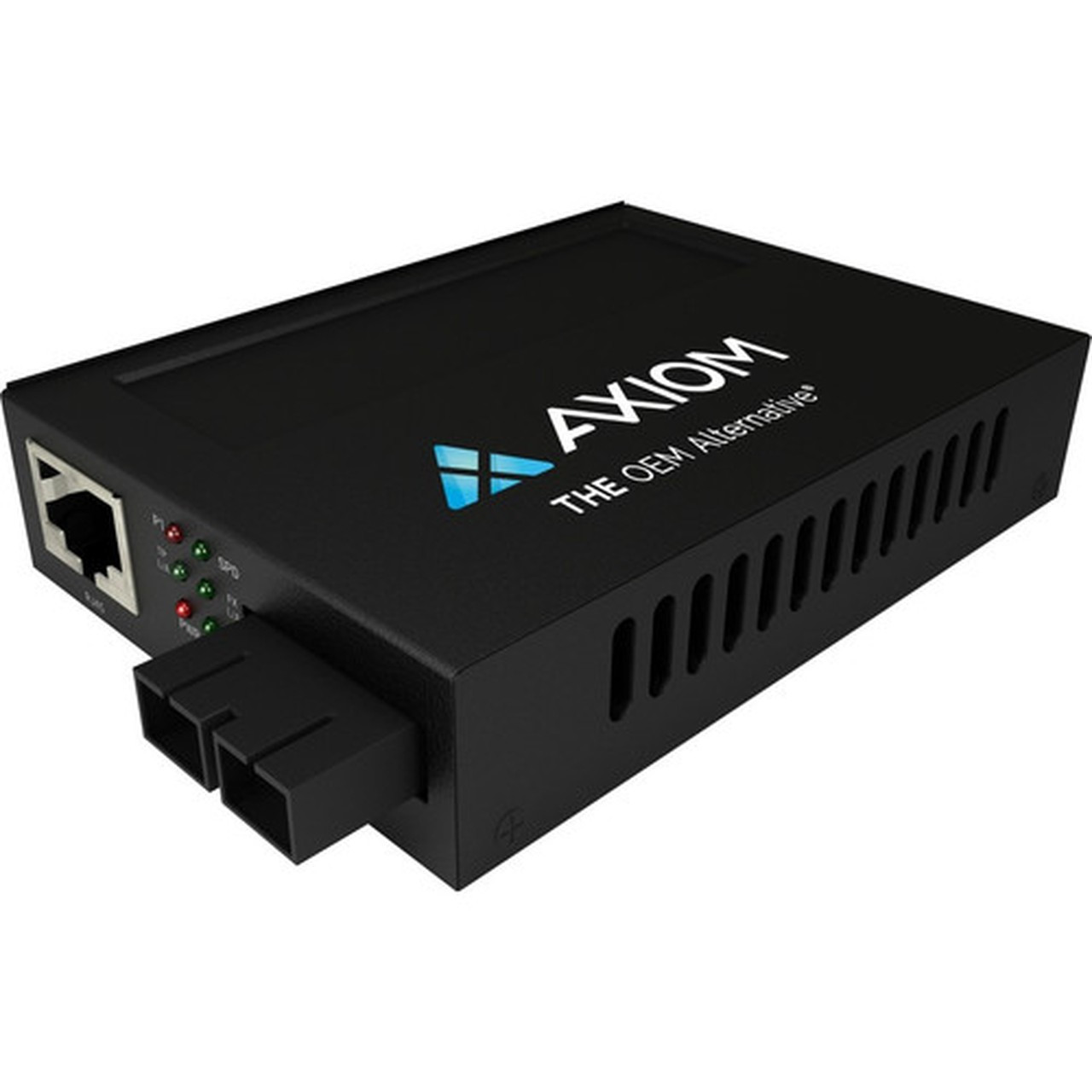

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
Total Number of Ports: 2Network (RJ-45): YesNumber of PoE+ (RJ-45) Ports: 1PoE Port Type: PSENumber of SC Ports: 1Media Type Supported: - Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-modeFiber Optic Wavelength: 1310 nmMaximum Distance Supported: 1.2 MileEthernet Technology: Gigabit EthernetNetwork Technology: - 1000Base-SX
- 10/100/1000Base-T
Power Source: ACLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: MCP32-T2-M3S2-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: 1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 2km, 1310nm
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 2
Network (RJ-45): Yes
Number of PoE+ (RJ-45) Ports: 1
PoE Port Type: PSE
Number of SC Ports: 1
Media & PerformanceMedia Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 1.2 Mile
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-SX
- 10/100/1000Base-T
Power DescriptionPower Source: AC
WarrantyLimited Warranty: 1 Year
[/custom-specifications]
