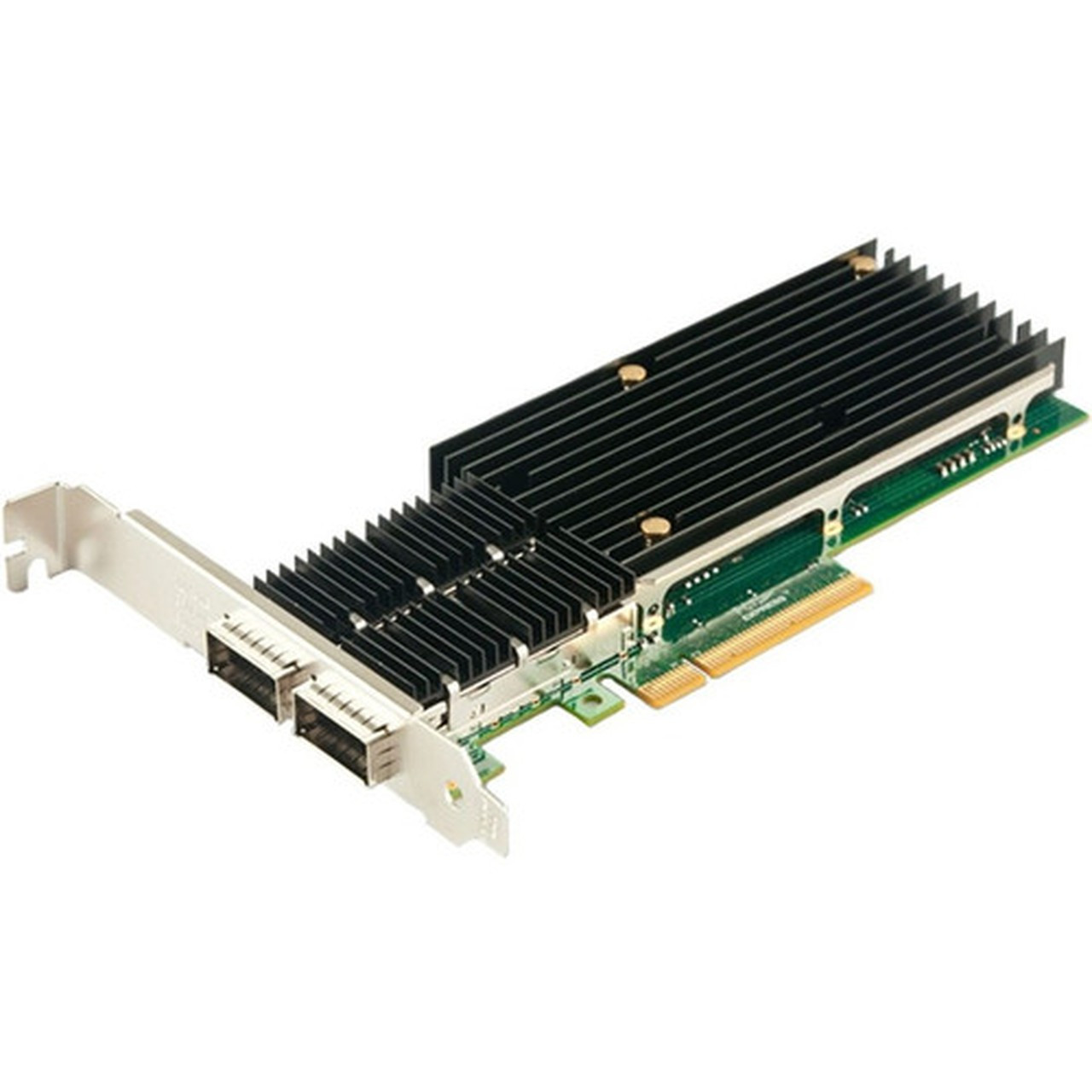

Axiom 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for HP - 649281-B21 - 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card (649281-B21-AX)

Marketing Information:

The Axiom QSFP+ PCIe 3.0 x8 40Gbs Fiber Network Adapter is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40 Gigabit Networks. Based on Intel XL710AM Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interfaces, the Axiom QSFP+ NIC cards are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Key Features:

• Network Virtualization offloads for VXLAN and NVGRE
• Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)
• Virtual Bridging Support - VEPA/802.1Qbg,BPE/802.1Qbh
• Physical Functions - Up to 8 per port
• Support for 128 Virtual Device Queues (VMDq) per port
• Hardware Queue Pairs - Up to 1.5K (non-RDMA); up to 256K (RDMA)
• Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines
• Includes Full Height and Half Height Mounting Brackets

Host Interface: PCI Express 3.0 x8

Total Number of Ports: 2

Expansion Slot Type: QSFP+

Media Type Supported: Optical Fiber

Network Technology: 40GBase-X

Form Factor: Plug-in Card

Height: 6.50" (165 mm)

Width: 0.51" (13 mm)

Depth: 2.68" (68 mm)

Weight (Approximate): 140.6 g

Package Contents:

• HP 40Gigabit Ethernet Card
• Full Height and Half Height Mounting Brackets

Device Supported: Server

Limited Warranty: 3 Year
