- This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This dual port 40gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable

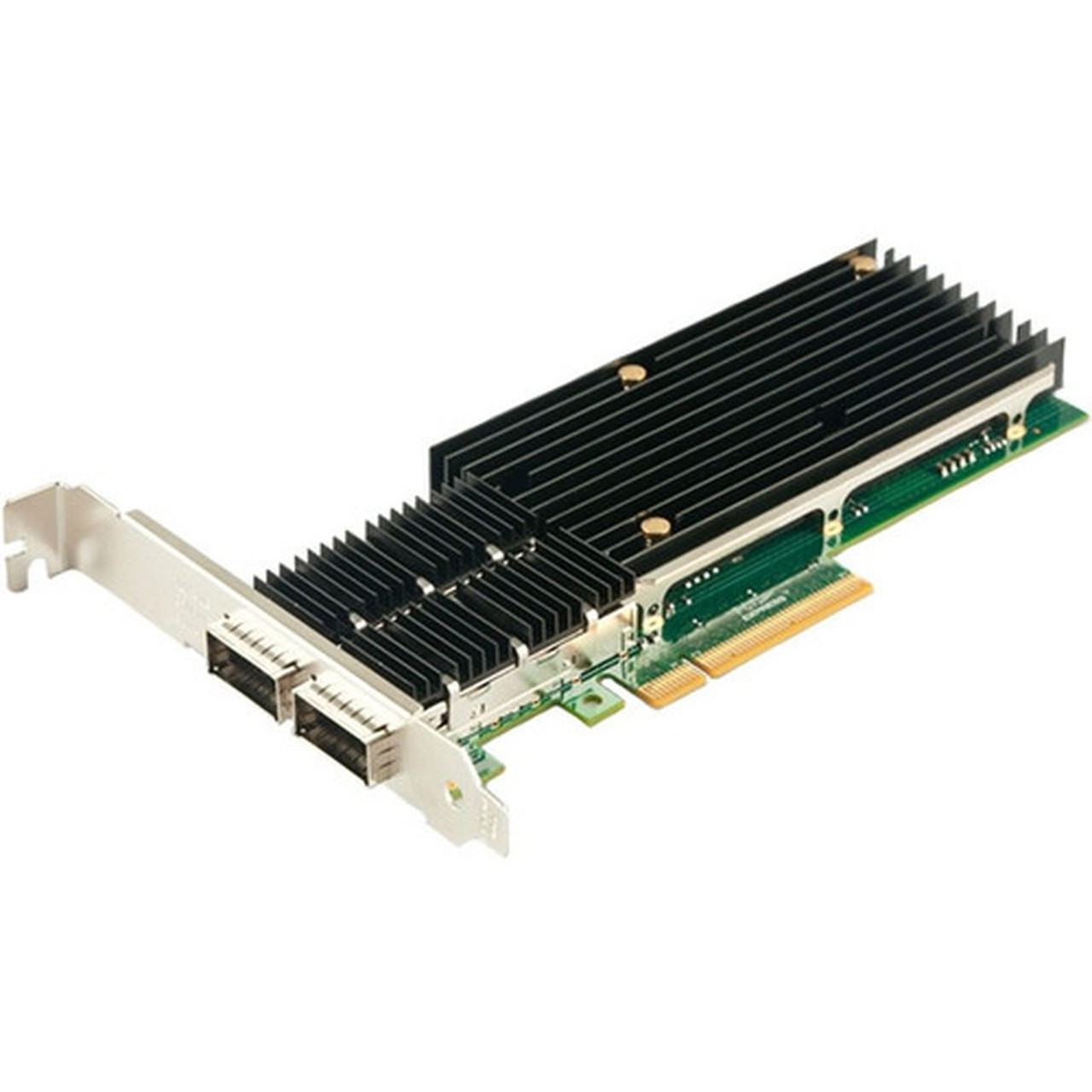

Marketing Information: The Axiom QSFP+ PCIe 3.0 x8 40Gbs Fiber Network Adapter is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40 Gigabit Networks. Based on Intel XL710AM Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interfaces, the Axiom QSFP+ NIC cards are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Key Features:
- Network Virtualization offloads for VXLAN and NVGRE
- Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)
- Virtual Bridging Support - VEPA/802.1Qbg,BPE/802.1Qbh
- Physical Functions - Up to 8 per port
- Support for 128 Virtual Device Queues (VMDq) per port
- Hardware Queue Pairs - Up to 1.5K (non-RDMA); up to 256K (RDMA)
- Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines
- Includes Full Height and Half Height Mounting Brackets
Host Interface: PCI Express 3.0 x8Total Number of Ports: 2Expansion Slot Type: QSFP+Media Type Supported: Optical FiberNetwork Technology: 40GBase-XForm Factor: Plug-in CardHeight: 6.50" (165 mm)Width: 0.51" (13 mm)Depth: 2.68" (68 mm)Weight (Approximate): 140.6 gPackage Contents: - Lenovo 40Gigabit Ethernet Card
- Full Height and Half Height Mounting Brackets
Device Supported: ServerLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: 81Y1537-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: Lenovo 40Gigabit Ethernet Card
Product Type: 40Gigabit Ethernet Card
Interfaces/PortsHost Interface: PCI Express 3.0 x8
Total Number of Ports: 2
I/O ExpansionsExpansion Slot Type: QSFP+
Media & PerformanceMedia Type Supported: Optical Fiber
Network & CommunicationNetwork Technology: 40GBase-X
Physical CharacteristicsForm Factor: Plug-in Card
Height: 6.50" (165 mm)
Width: 0.51" (13 mm)
Depth: 2.68" (68 mm)
Weight (Approximate): 140.6 g
MiscellaneousPackage Contents:
- Lenovo 40Gigabit Ethernet Card
- Full Height and Half Height Mounting Brackets
Device Supported: Server
WarrantyLimited Warranty: 3 Year
