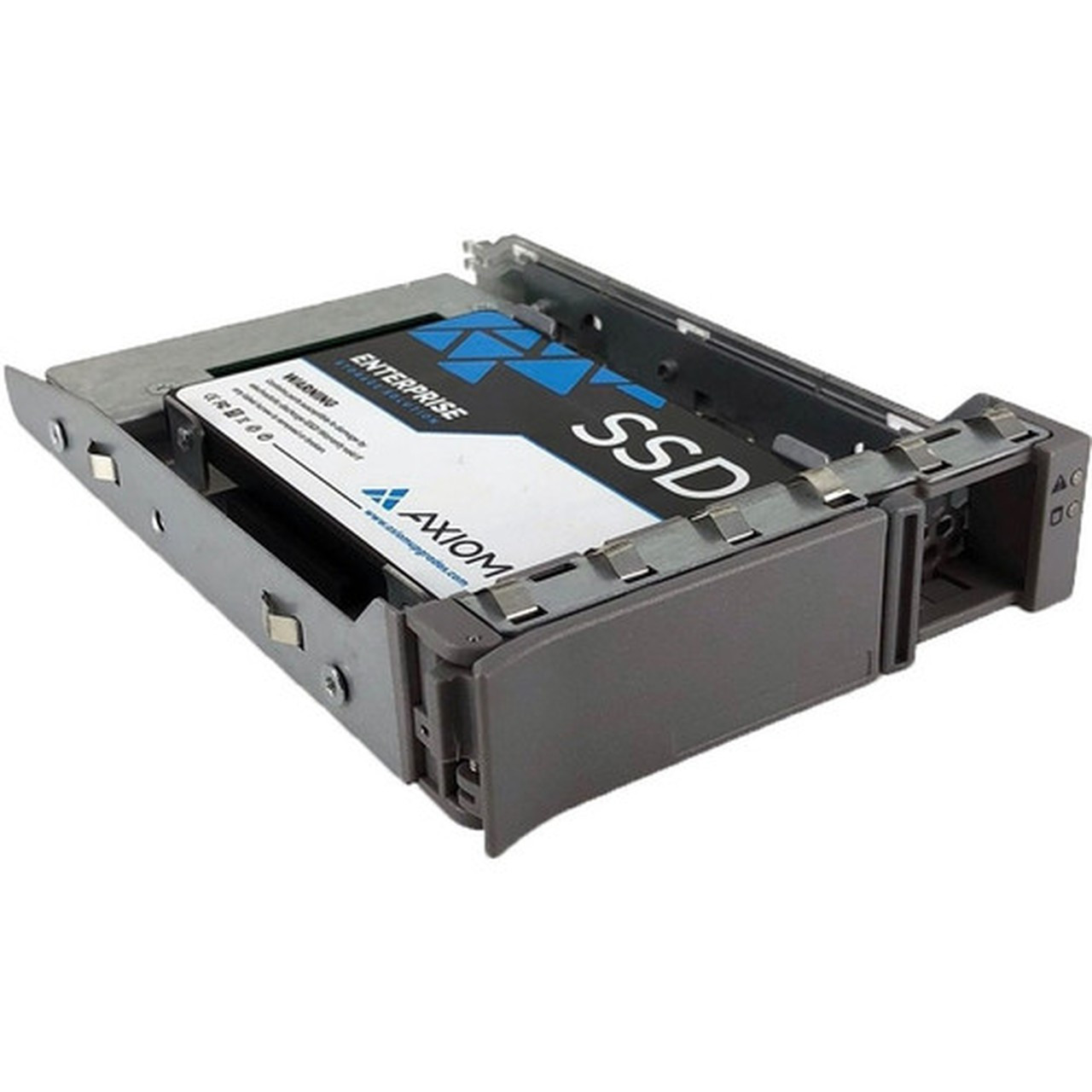

Axiom 480GB Enterprise EV200 3.5-inch Hot-Swap SATA SSD for Cisco - Server Device Supported - 1.3 DWPD - 683 TB TBW - 550 MB/s Maximum (SSDEV20CL480-AX)

Marketing Information:

Optimized for latency-sensitive applications and mixed-use workloads the EV200 hot-swap solid state drive (SSD) utilizes V-NAND technology to deliver exceptional around the clock performance for growing data center demands. The SATA interface enables storage capacity to expand while utilizing the existing IT infrastructure - achieving the optimum price/performance for converged and virtualized architectures.
For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.

Product Spotlight:

• Low total cost of ownership (TCO)
• Proven quality and reliability
• Optimized for data center applications
• Enhanced enterprise endurance with 1.4 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 99K/18K

Product Features:

• Built with 3-bit MLC V-NAND Flash technology
• Strong IOPS consistency - low I/O latency and high I/O throughput performance
• Enterprise-grade power-loss protection and power failure protection
• Temperature sensor and monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection via 32-cell vertical NAND architecture

Specialized for the following workloads:

• Demanding Quality of Service (QoS), latency-sensitive applications and databases
• IaaS, PaaS, and SaaS Infrastructure
• NoSQL performance acceleration
• DBaas, MySQL, PostgreSQL transaction processing
• OpenStack cloud computing platforms
• Software-defined storage upgrades
• E-Commerce, micropayments

Storage Capacity: 480 GB

Encryption Standard: 256-bit

Maximum Read Transfer Rate: 550 MB/s

Maximum Write Transfer Rate: 520 MB/s

Endurance (DWPD): 1.3

Endurance (TBW): 683 TB

Endurance Type: Mixed Use

Wireless LAN: No

Drive Interface: SATA

Drive Interface Standard: SATA/600

Drive Type: Internal

Hot Swappable: Yes

Device Supported: Server

Compatibility:

Cisco Servers:

• Cisco - C240 M4 Rack-Mount Server
• Cisco - UCS B200 M4 Blade Server
• Cisco - UCS C-Series C220 M3 Rack-Mount Server
• Cisco - UCS C-Series C220 M4 Rack-Mount Server
• Cisco - UCS C240 M3 Rack-Mount

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 5 Year
