- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
- Durable material offers flame retardancy
- Features 2 x MTP/MPO Female Network connector to let you worry-free about setting up a connection with a network device

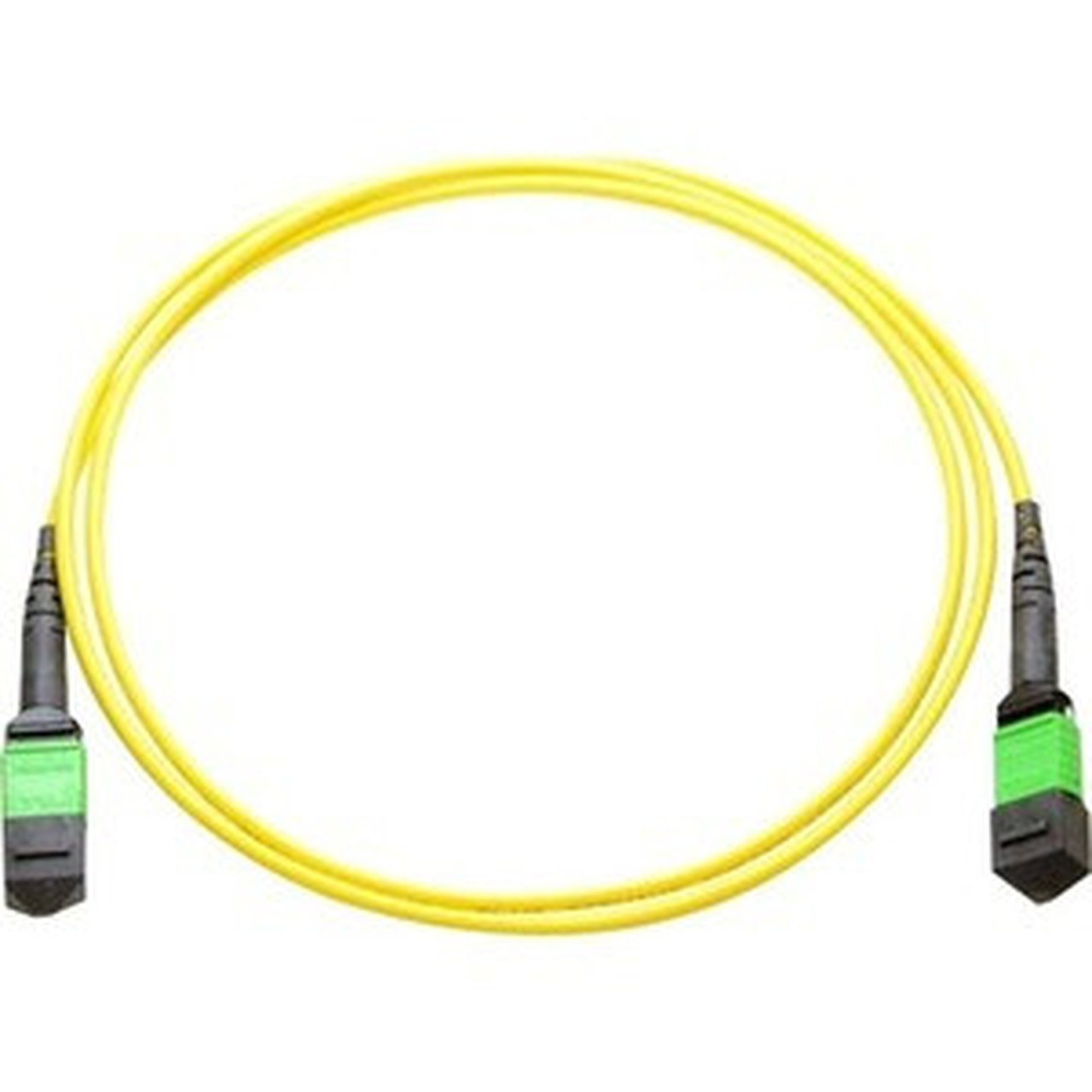

Marketing Information: - Axiom MPO Cables are designed to be used in any high-density fiber optic environment, such as digital cross-connects, optical backplanes, parallel processing applications, and Fibre Channel storage facilities.
- Features:
- Flame-Retardant Jacket
- Polished end-face quality to IEC 61300-3-35 standard
- 12 fibers
- Push on / Pull-off latching connector
- Precision guide pin assures fiber alignment
- Cable Specs:
- 9/125 SMF cable
- (2) MPO/MTP Female connectors at both ends
- Fiber Count: 12
- Jacket Type/Flame Rating: Riser (OFNR)
- Jacket Color: Yellow
- Termination Type/Polarity: Rolled - Key up / Key up Pin 1-12 style
- Compliance: RoHS Compliant, TIA/EI942, ISO/IEC 24764, EN 50173-5
- Insertion Loss, Typical: = 0.1dB SM
- Return Loss, Maximum: = -55dB
- Connector Order:
- 1 - 12 2 - 11 3 - 10 4 - 9 5 - 8 6 - 7 7 - 6 8 - 5 9 - 4 10 - 3 11 - 2 12 - 1
Cable Type: Fiber OpticFiber Optic Mode: Single-modeCore/Cladding Diameter: 9/125 µmCable Length: 26.2 ftConnector on First End: 2 x MTP/MPO Female NetworkConnector on Second End: 2 x MTP/MPO Female NetworkFeatures: - Flame Retardant
- Locking Latch
Device Supported: Network DeviceColor: YellowEnvironmentally Friendly: YesEnvironmental Certification: RoHS
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: MPOFFSM8M-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: Fiber Optic Network Cable
Product Type: Network Cable
Technical InformationCable Type: Fiber Optic
Fiber Optic Mode: Single-mode
Core/Cladding Diameter: 9/125 µm
Cable Length: 26.2 ft
Connector on First End: 2 x MTP/MPO Female Network
Connector on Second End: 2 x MTP/MPO Female Network
Features:
- Flame Retardant
- Locking Latch
Device Supported: Network Device
Physical CharacteristicsColor: Yellow
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
