Axiom Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v - 1 x Number of Power Supplies Installed - 12 Slot - 1U - (MCR0-CH-1U12-AX)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- Media Converter Capacity: 12-slots in front for silde-in-modules
- LED Indicators: Power, Fan A, Fan B (On: operating; Off: device or fan fail)

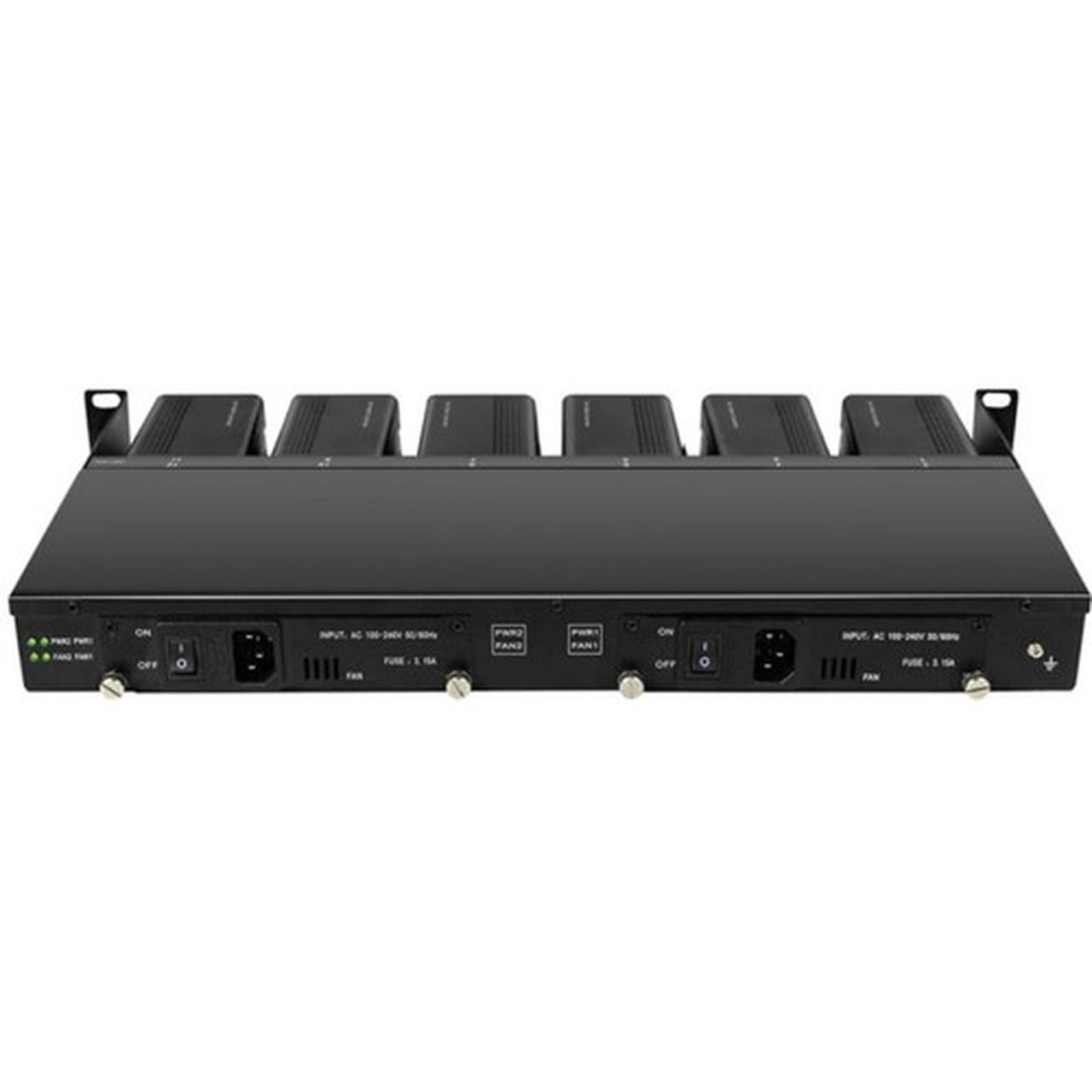

- Power: Universal input 100~240V, 50/60Hz, 3.0~1.5A Redundant Power Supply
- Temperature Rating: 0~50 degrees C (operating), -20~70 degrees C (storage)
- Humidity: 0~90% (non-condensing)
- Enclosure: Metal
- Dimensions: 440mm×245mm×45mm
- Weight: 3.2kg
- Compliance: FCC Class A, CE-mark
Marketing Information:

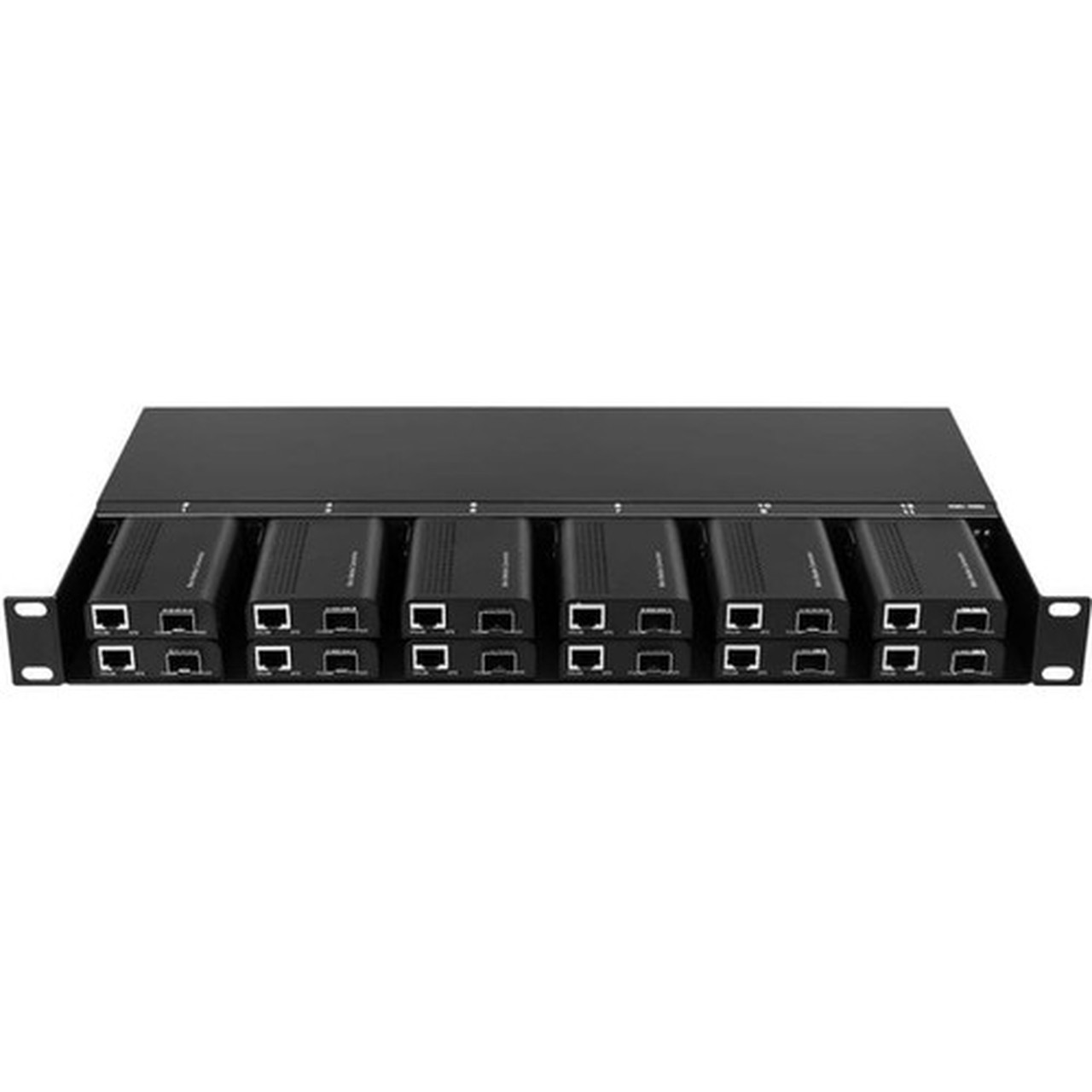

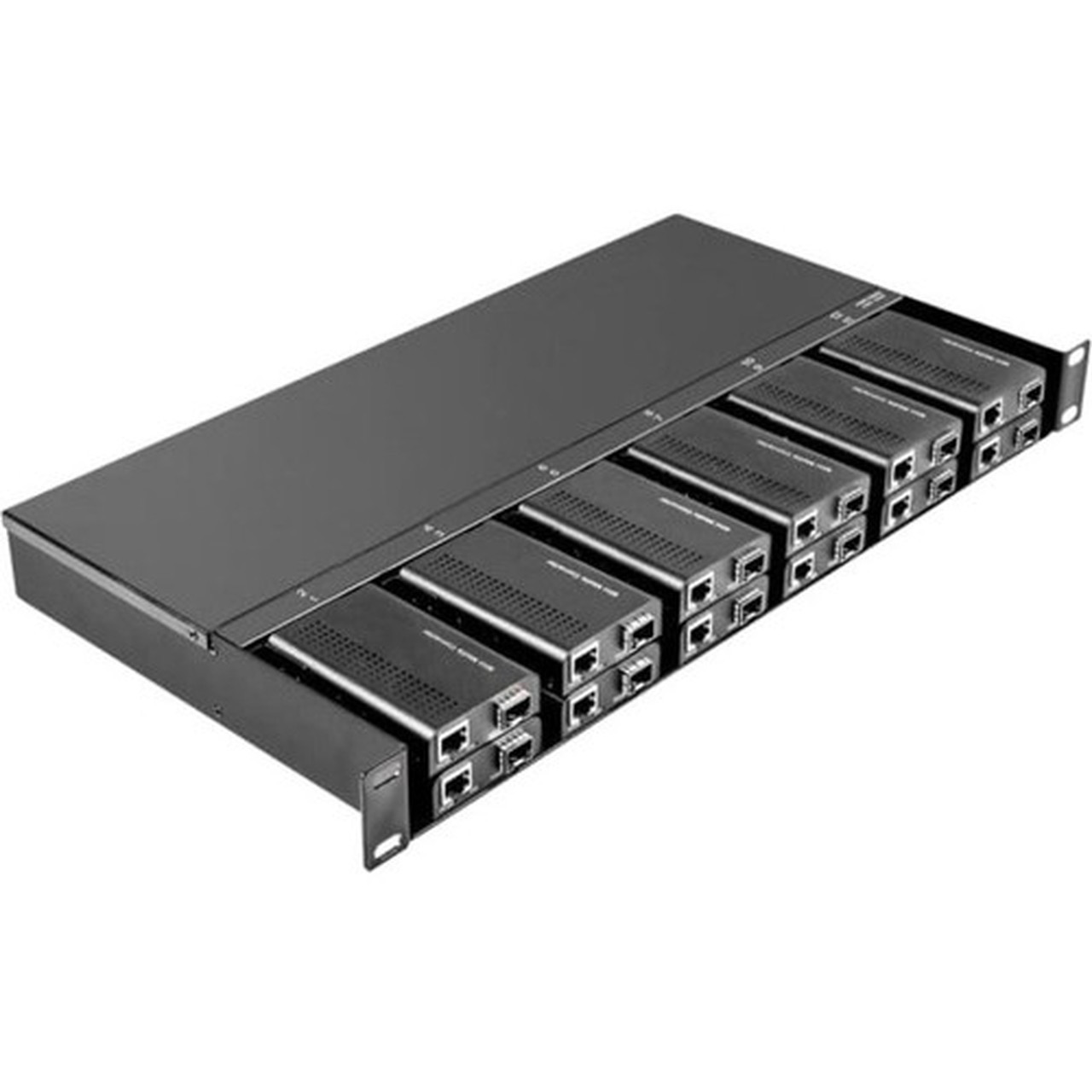

The Axiom 1U Rack Mount 12 Slot Media Converter Chassis is specifically designed to accommodate our MC01, MC03, MC08, & MC10 Series Mini-Media Converter line up. The 1U rack mount system is designed for space saving by providing power with a single, internal, universal power supply that eliminates the need for the multiple power connections which is usually associated associated with multiple converter installations. It provides hot-swap capability so individual units can be replaced as your network needs change.
Total Number of Expansion Slots: 12
Input Voltage: 120 V AC,230 V AC
Power Supply Installed: Yes
Number of Power Supplies Installed: 1
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.77" (45 mm)
Width: 17.32" (440 mm)
Depth: 9.65" (245 mm)
Weight (Approximate): 3.20 kg
Limited Warranty: 1 Year
[custom-specifications]
Specifications | |
Manufacturer | Axiom Memory Solutions |
Manufacturer Part Number | MCR0-CH-1U12-AX |
Manufacturer Website Address | http://search.axiomupgrades.com |
Brand Name | Axiom |
Product Name | Mini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v |
Product Type | Media Converter Chassis |
I/O Expansions | |
Total Number of Expansion Slots | 12 |
Power Description | |
Input Voltage | 120 V AC,230 V AC |
Power Supply Installed | Yes |
Number of Power Supplies Installed | 1 |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 1.77" (45 mm) |
Width | 17.32" (440 mm) |
Depth | 9.65" (245 mm) |
Weight (Approximate) | 3.20 kg |
Warranty | |
Limited Warranty | 1 Year |
[/custom-specifications]
Warranty Infomartion
1 Year
