- Expand your network capabilities with this 2 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 1000Base-EX technology get up to 1000Mbps data transfer rate over optical fiber cable
Marketing Information: Features

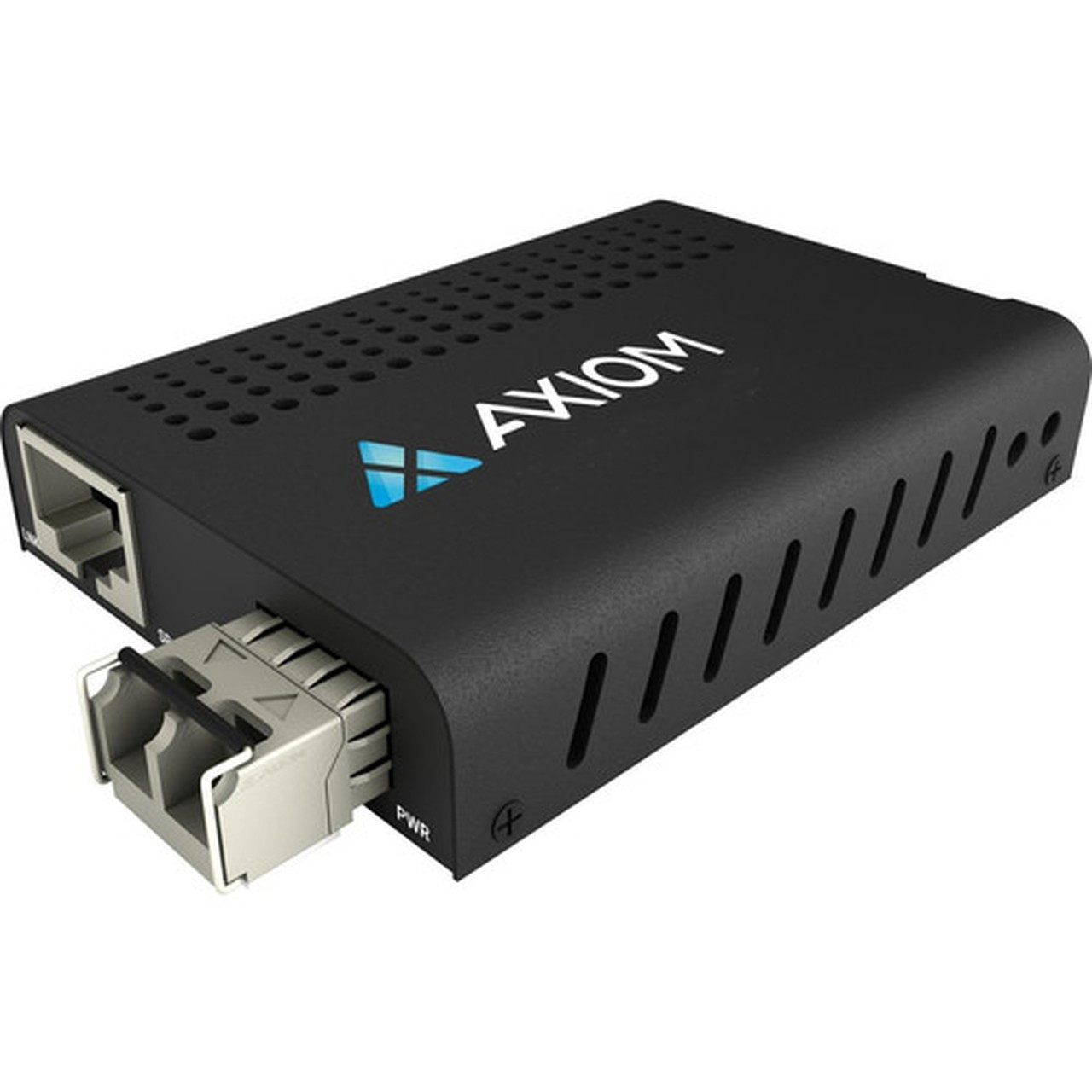

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
Total Number of Ports: 2Network (RJ-45): YesNumber of PoE+ (RJ-45) Ports: 1Number of LC Ports: 1Media Type Supported: - Optical Fiber
- Twisted Pair
Fiber Mode Supported: Single-modeFiber Optic Wavelength: 1310 nmMaximum Distance Supported: 24.9 MileEthernet Technology: Gigabit EthernetNetwork Technology: - 1000Base-EX
- 10/100/1000Base-TX
Power Source: AC/DCLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Axiom Memory Solutions
Manufacturer Part Number: MCP32-T2-S3L40-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/PortsTotal Number of Ports: 2
Network (RJ-45): Yes
Number of PoE+ (RJ-45) Ports: 1
Number of LC Ports: 1
Media & PerformanceMedia Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 24.9 Mile
Network & CommunicationEthernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-EX
- 10/100/1000Base-TX
Power DescriptionPower Source: AC/DC
WarrantyLimited Warranty: 1 Year
[/custom-specifications]
