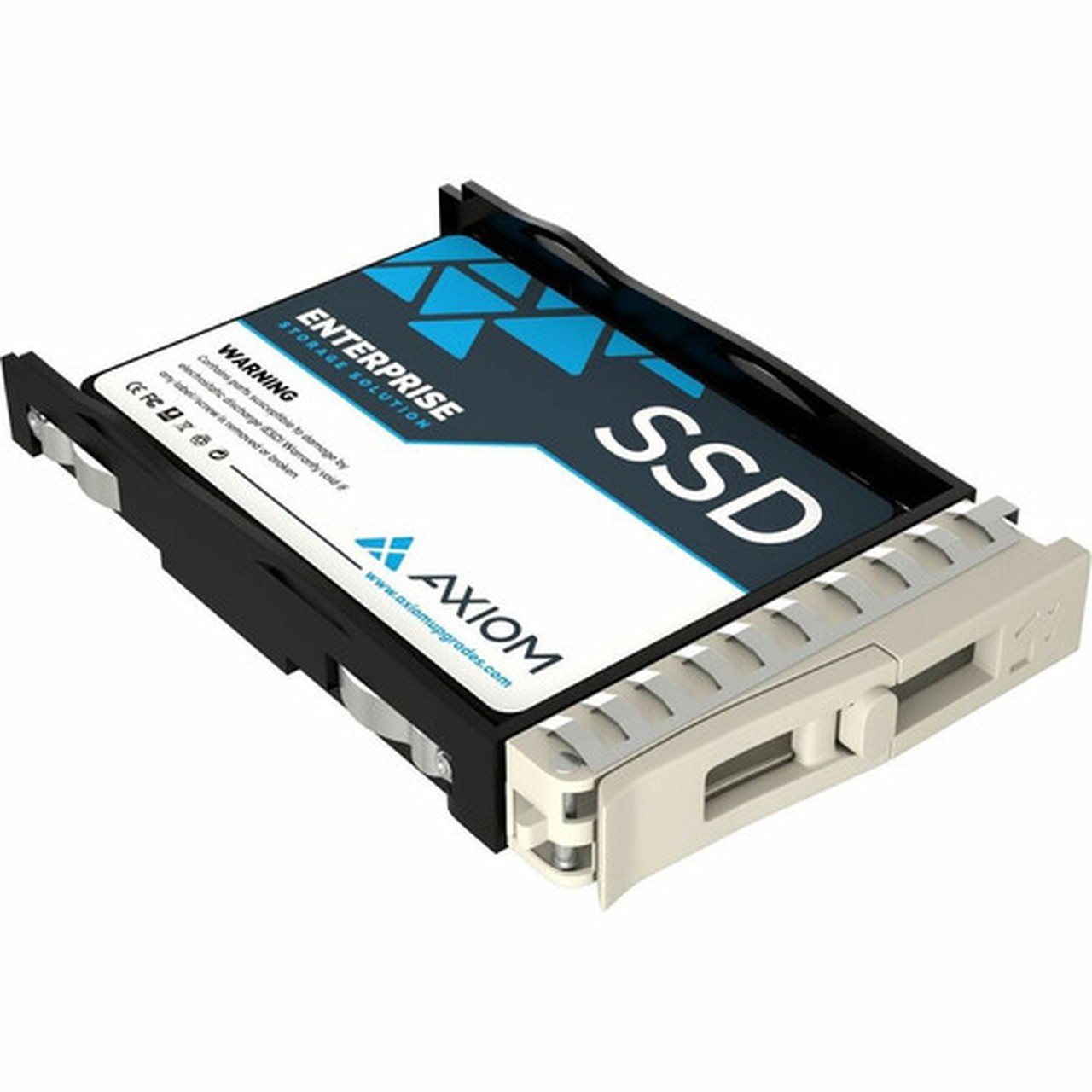

Axiom UX10 960 GB Solid State Drive - 2.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Data Center Device Supported - 1 - (SSDUX10M5960-AX)

Marketing Information:

The Axiom UX10 Series U.2 NVMe SSD supports PCI Express Gen 4, breaks through the read performance bottleneck experienced by previous generations of SSDs and delivers up to one million IOPS of random read performance. With the UX10, I/O operations benefit from hardware acceleration, which improves performance, while containing power consumption. Random write performance of up to 180k IOPS is three times as fast as the previous generation of mainstream NVMe SSDs.

To meet the demand for high-utilization in high-duty cycle data centers, the UX10 SSD utilizes firmware which prioritizes quality of service (QoS) for sustained random workloads to keep all virtual machines and containers running quickly and smoothly. Consistent latency on mixed read/write workloads is enhanced by the ability to suspend flash erase and program operations in order to prioritize incoming read operations.

The Axiom UX10 Series delivers these high-performance SSD features at mainstream cost points that are comparable to SATA SSDs all with the ability to support high-volume cloud datacenter deployments.

• PCIe Gen 4 x4 Host Interface: For powerful data centers, it can reach soaring speeds and handle extreme traffic for smooth data center operations.
• High Speeds: Random write speeds up to 180,000 IOPS and sequential read speeds up to 6,800 MB/s to handle data centers that require fast performance for data processing.
• Available Storage Capacities: 960 GB; 1.92, 3.84, 7.68, 15.36 TB in a compact 2.5-inch form factor
• Higher MTBF and built-in advanced ECC
• Includes OEM drive caddies for easier installation

Storage Capacity: 960 GB

Encryption Standard: 256-bit AES

Random 4KB Read: 580000IOPS

Random 4KB Write: 70000IOPS

Endurance (DWPD): 1

Endurance (TBW): 1752 TB

Maximum Sequential Read: 6.35 GB/s

Maximum Sequential Write: 1.46 GB/s

Mean Time Between Failures (MTBF): 228.2 Year

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCI Express NVMe 4.0 x4

Drive Type: Internal

Form Factor: 2.5"

Hot Swappable: Yes

Device Supported: Data Center

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: 5 Year
