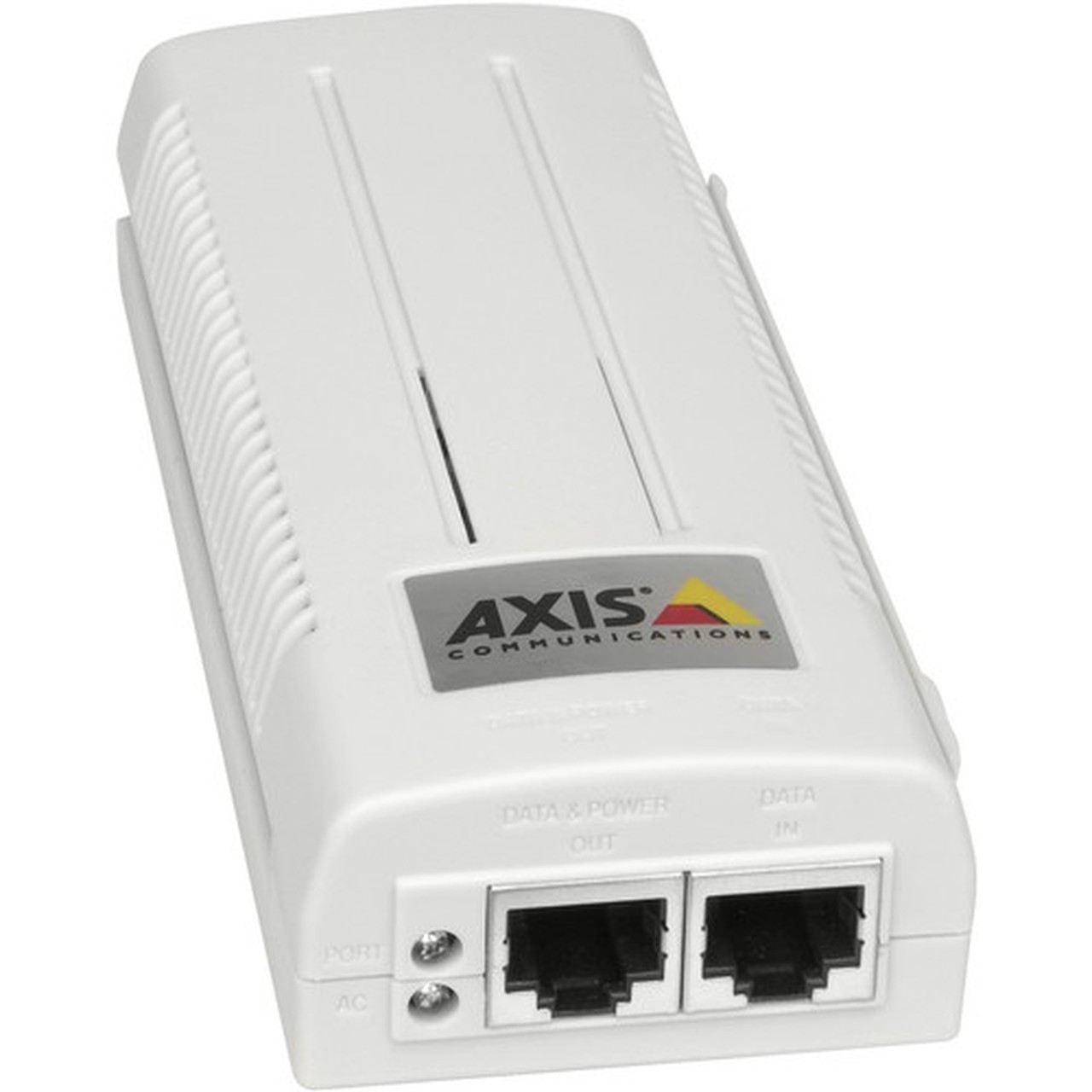

AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable (Fleet Network)
AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable (Fleet Network)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable (5026-204)

(No reviews) Write a Review
$93.88
$82.02
(You save $11.86 )
SKU: 5026-204
UPC: 7331021003408
Availability: In Canada. Usually ship same day.
Weight: 1.00 LBS
Adding to cart… The item has been added
    Marketing Information:

    Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspans and PoE splitters to the network, and the network video products are supplied with power.

    Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in PoE support. For a network video product without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.


    Input Voltage:
    • 110 V AC
    • 220 V AC

    Maximum Output Voltage: 48 V DC
    Minimum Input Current: 500 mA
    Maximum Output Power: 15.40 W
    Output Ports: 1
    Mount Type: Wall Mountable
    Height: 1.22" (31 mm)
    Width: 2.36" (60 mm)
    Depth: 5.71" (145 mm)
    Weight (Approximate): 450 g
    Compatibility:
    • Video Encoders

    Axis Network Cameras:

    • PTZ
    • PTZ Dome

    Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.3af
    • FCC Part 15 Class B
    • EN55022 (CISPR 22) Class B

    Safety:

    • cUL
    • UL
    • TUV
    • CE

    Limited Warranty: 3 Year

[custom-specifications]

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 5026-204
Manufacturer Website Address: http://www.axis.com
Brand Name: AXIS
Product Model: T8120
Product Name: T8120 Midspan 15 W 1-Port
Product Type: PoE Injector
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC

Maximum Output Voltage: 48 V DC
Minimum Input Current: 500 mA
Maximum Output Power: 15.40 W
Interfaces/Ports
Output Ports: 1
Physical Characteristics
Mount Type: Wall Mountable
Height: 1.22" (31 mm)
Width: 2.36" (60 mm)
Depth: 5.71" (145 mm)
Weight (Approximate): 450 g
Miscellaneous
Compatibility:
  • Video Encoders

Axis Network Cameras:

  • PTZ
  • PTZ Dome

Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3af
  • FCC Part 15 Class B
  • EN55022 (CISPR 22) Class B

Safety:

  • cUL
  • UL
  • TUV
  • CE

Warranty
Limited Warranty: 3 Year

[/custom-specifications]

3 Year
