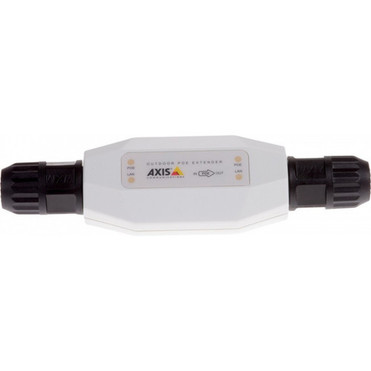

AXIS E Outdoor PoE Extender Weather Resistant Network RJ45 Extension 328 Ft Extended T8129-E Range RJ-45 Mm 01148-001

Marketing Information:

AXIS T8129-E Outdoor PoE Extender offers a smart and easy-to-install solution for extending the range of your network - with no additional power supply. Without being restricted by the 100m (328ft.) limit for Ethernet cables, Axis network video products can be installed at greater distances. Simply connect AXIS T8129-E in-line with the CAT5e or CAT6 cable and power is forwarded to your Axis network video product.

Wide compatibility

A perfect match with all Axis network video products, AXIS T8129-E Outdoor PoE Extender supports PoE, and it is both IEEE 802.3af, IEEE 802.3at and High PoE 60 W compatible. With its rugged, IP66/IP67-rated enclosure, AXIS T8129-E withstands harsh environmental conditions and challenging temperatures.

Covering the distances

Range depends on the power required so depending on midspan and camera type the connection can in total be between 200-400 meters (656-1312 ft.). For instance, a 25 watt PTZ dome camera may be located 200 m (656 ft.) away using a single AXIS T8129-E. Or, the cable length to a regular 5 watt network camera may extend up to 400 m (1312 ft.), by fitting three AXIS T8129-E at 100 m (328 ft.) intervals.

Maximum Extended Range: 328.08 ft (100000 mm)

Network (RJ-45): Yes

TAA Compliant: Yes
