Tripp Lite HDMI IR Serial RS232 Over Cat5 Cat6 Active Extender Kit With 328 Ft Range Network Eaton RJ-45 By Mm X B126-1A1SR
Write a Review
Tripp Lite by Eaton
Tripp Lite HDMI IR Serial RS232 Over Cat5 Cat6 Active Extender Kit With 328 Ft Range Network Eaton RJ-45 By Mm X B126-1A1SR
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

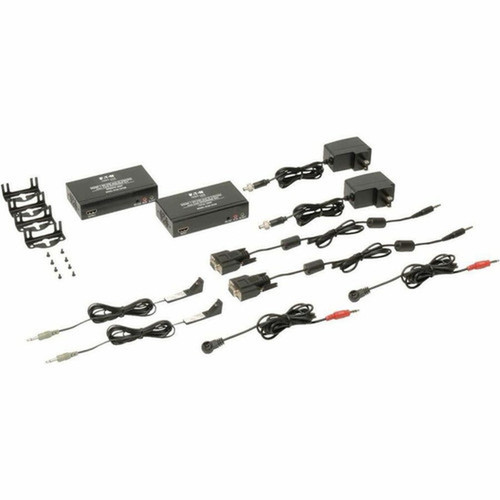

- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
Connectivity Technology: Wired
Maximum Operating Distance: 328 ft (99974.40 mm)
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Twisted Pair Cable Standard: Category 6
Color Family: Black
Product Color: Black
Transmitter Height: 2" (50.80 mm)
Transmitter Width: 6.20" (157.48 mm)
Transmitter Depth: 11.30" (287.02 mm)
Receiver Height: 2" (50.80 mm)
Receiver Width: 6.20" (157.48 mm)
Receiver Depth: 11.30" (287.02 mm)
Form Factor: Wall Mountable,Rack-mountable,Pole-mountable
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
Additional Warranty Information:
1 year limited warranty
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B126-1A1SR |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B126-1A1SR |
| Product Name | HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit |
| Packaged Quantity | 1 Each |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328 ft (99974.40 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 2" (50.80 mm) |
| Transmitter Width | 6.20" (157.48 mm) |
| Transmitter Depth | 11.30" (287.02 mm) |
| Receiver Height | 2" (50.80 mm) |
| Receiver Width | 6.20" (157.48 mm) |
| Receiver Depth | 11.30" (287.02 mm) |
| Form Factor | Wall Mountable,Rack-mountable,Pole-mountable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year limited warranty |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
1 Year| Qty | Price | Available |
|---|
